Unit Field Wiring Diagrams

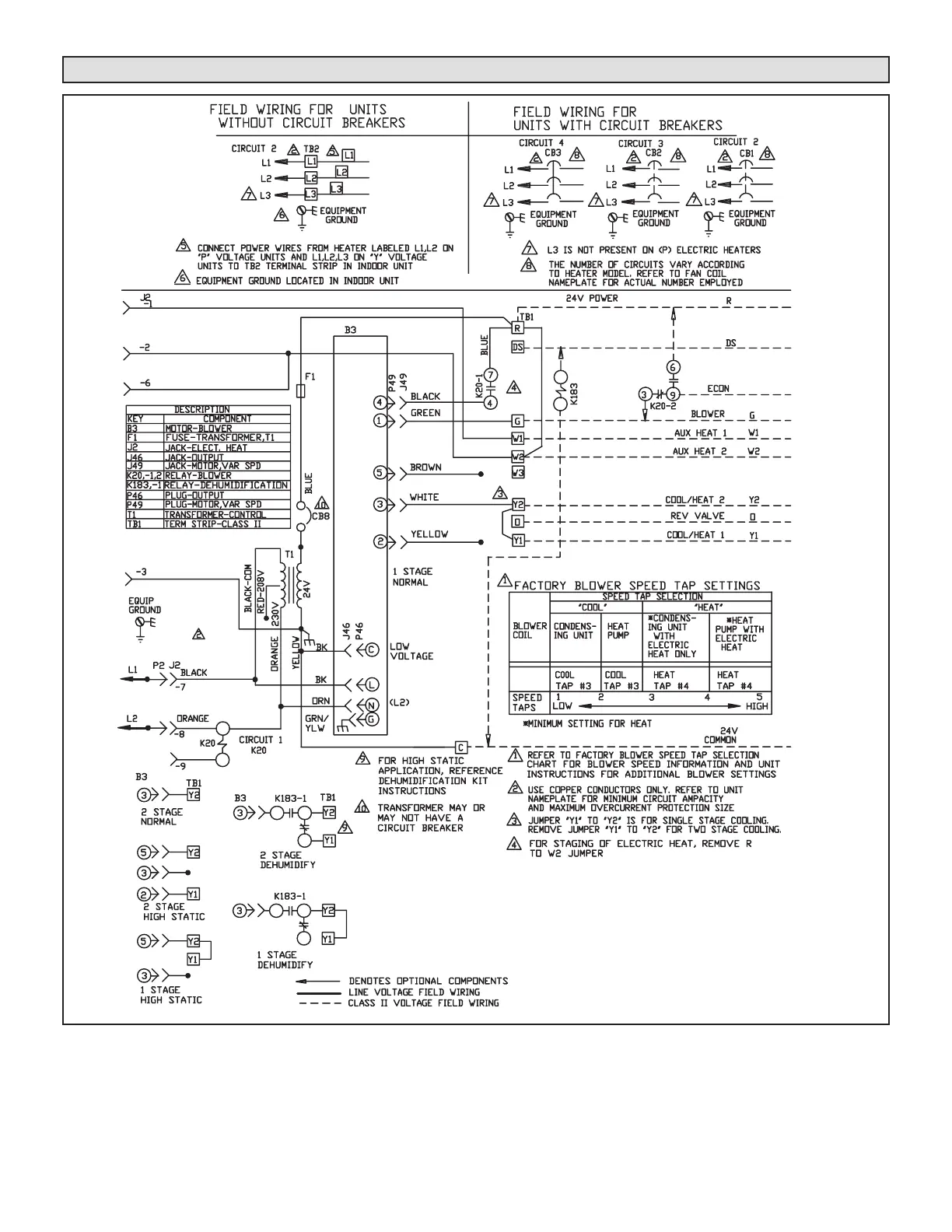

FIGURE 13. Typical Unit Wiring Diagram – Air Handlers with Constant Torque Motors
(P Voltage — 208-230V, 1-phase, 60Hz)
