Lennox ECB29-15CB - PSC Motor Unit Wiring Diagrams; Wiring Diagram Notes and Precautions (PSC)

Lennox ECB29-15CB
11 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Page 9

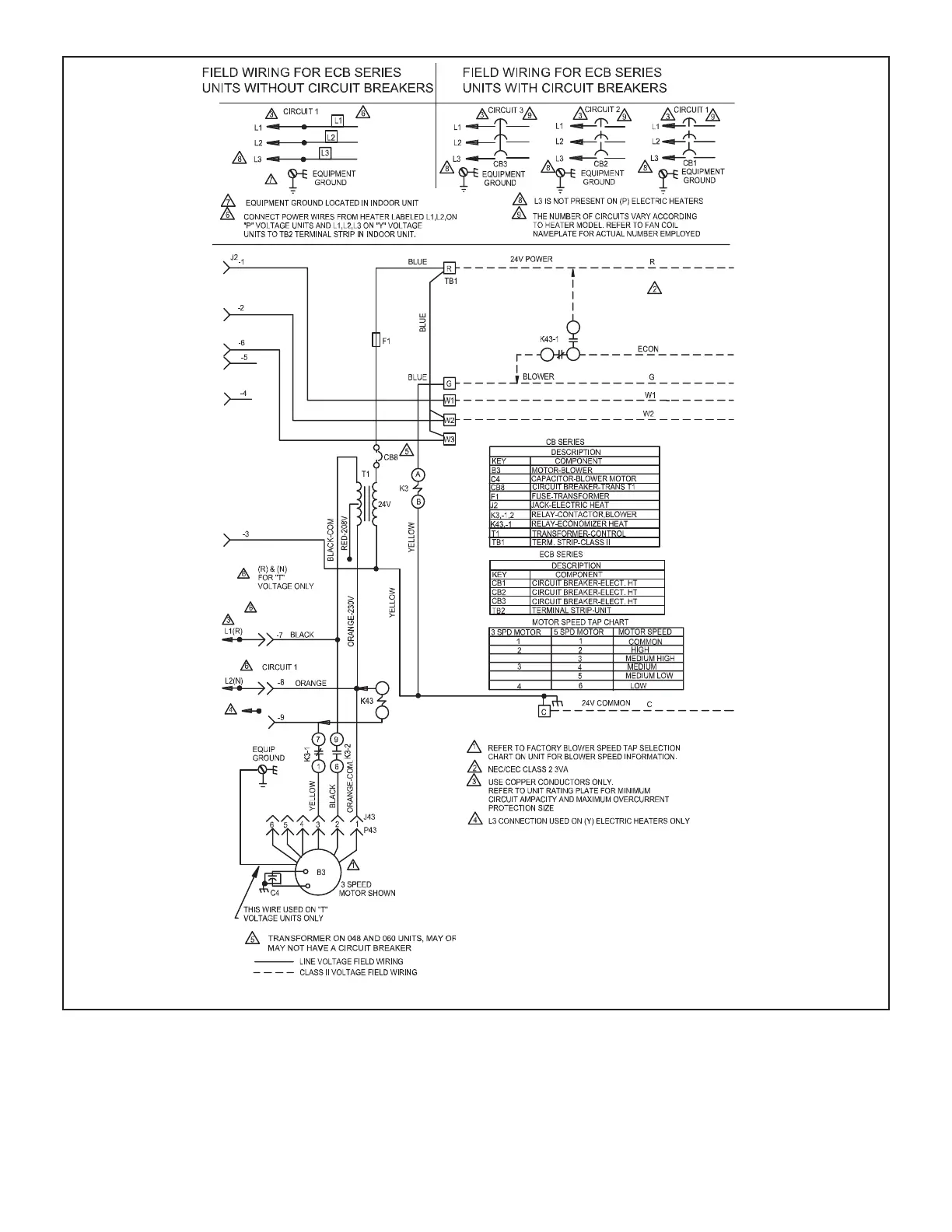

FIGURE 14. Typical Unit Diagram – Air Handlers with PSC, Non-Communicating Motors
(P Voltage — 208-230V, 1-phase, 60Hz)
