Lennox ECB29-15CB - Constant Torque Motor Unit Wiring Diagrams; Wiring Diagram Notes and Precautions (Constant Torque)

Lennox ECB29-15CB
11 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Page 10

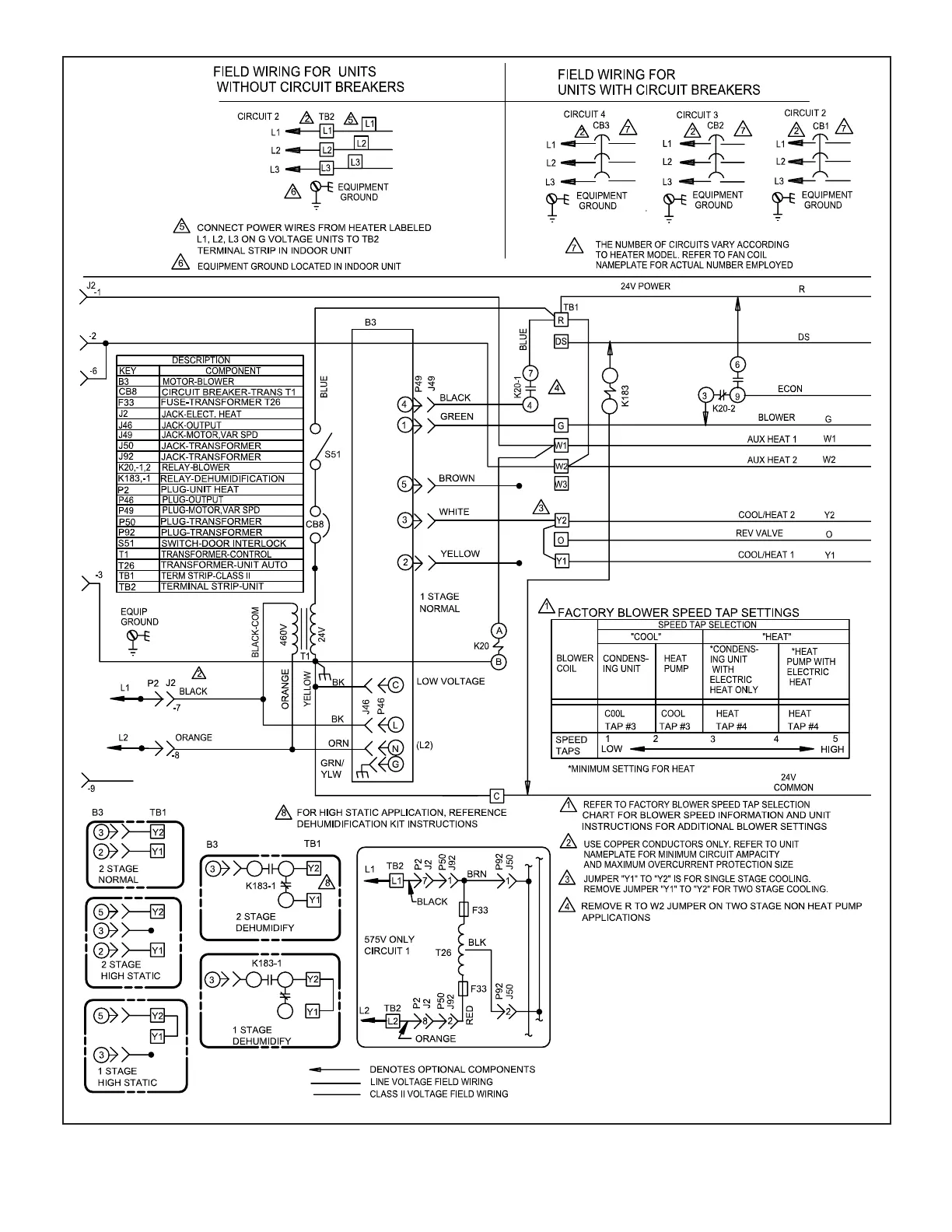

FIGURE 15. Typical Unit Diagram – Air Handlers with Constant Torque Motors (G Voltage – 460V, 3-Phase, 60Hz)
