EL16XC1 - 1.5 to 5 Ton Air Conditioner / Page 8

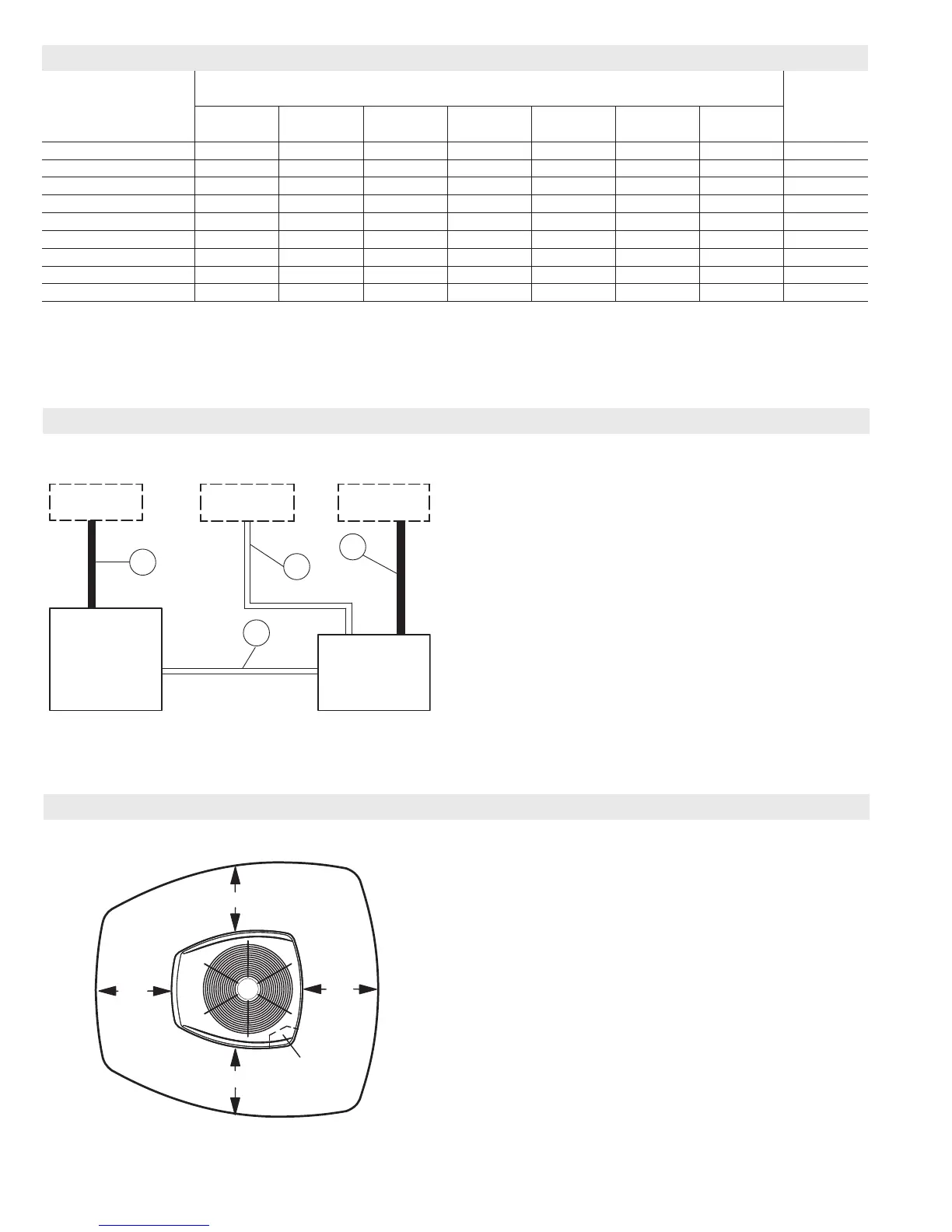

OUTDOOR SOUND DATA
1
Unit
Model No.
Octave Band Linear Sound Power Levels dB, re 10-
12
Watts
1
Sound
Rating
Number
(dB)
Center Frequency - HZ
125 250 500 1000 2000 4000 8000
EL16XC1-018 55 61 67 68 63.5 59 50.5 72
EL16XC1-024 55 62 67.5 66.5 63 59 52.5 72
EL16XC1-030 54 61.5 66 66 62 57 51 71
EL16XC1-036 55.5 62 68 69 62.5 58 50.5 73
EL16XC1-041 54.5 62.5 67.5 67 62.5 58.5 52.5 72
EL16XC1-042 55.5 62.5 68 67 62 57.5 51.5 72
EL16XC1-047 55 62 67 66.5 62.5 57.5 49.5 72
EL16XC1-048 55.5 64.5 70 71 65 60.5 54 75
EL16XC1-060 57 64.5 68 66 62.5 57 47.5 73
1
Tested according to AHRI Standard 270-2008 test conditions.
FIELD WIRING
B
DISCONNECT
SWITCH
(By Others)
LENNOX
AIR
CONDITIONER
LENNOX
HEATING UNIT
OR
AIR HANDLER
UNIT
DISCONNECT
SWITCH
(By Others)
THERMOSTAT
(Optional)
C
D
A
INSTALLATION CLEARANCES - INCHES (MM)
A - Two Wire Power (not furnished)
B - Two Power (not furnished). See Electrical Data
C - Four Wire Low Voltage (not furnished). 18 ga. minimum
All wiring must conform to NEC or CEC and local electrical codes.
See
NOTES
See NOTES
NOTES:
Service clearance of 30 in. (762 mm) must be maintained on one
of the sides adjacent to the control box.
Clearance to one of the other three sides must be 36 in. (914 mm)
Clearance to one of the remaining two sides may be 12 in. (305
mm) and the final side may be 6 in. (152 mm).
A clearance of 24 in. (610 mm) must be maintained between two
units.
48 in. (1219 mm) clearance required on top of unit.
See
NOTES
See NOTES
Control
Box
To Next Page
