Lennox EL16XC1-036-230A01 User Manual

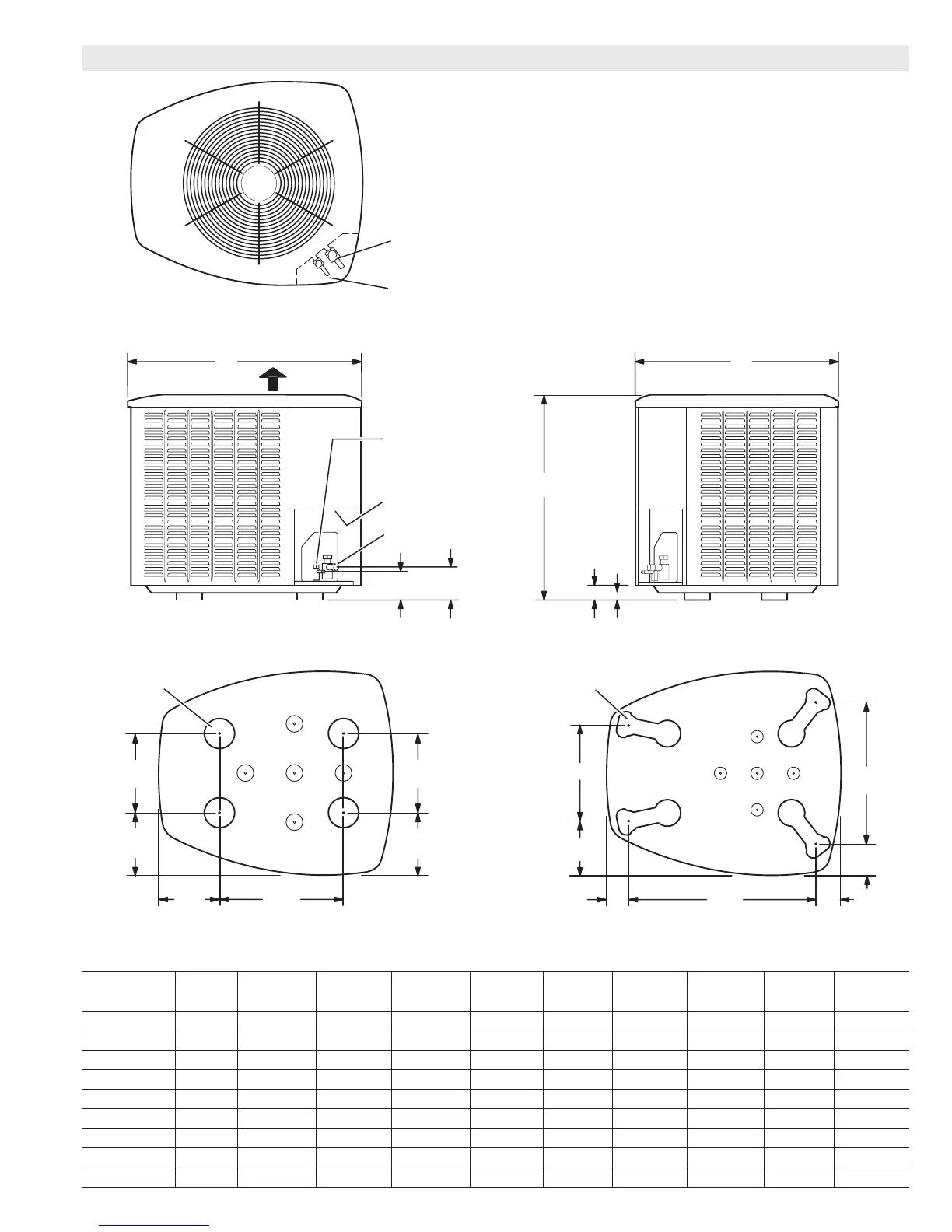

EL16XC1 - 1.5 to 5 Ton Air Conditioner / Page 9
UNIT SUPPORT
FEET
8−1/2
(216)
EL16XC1-018 BASE SECTION
(Small Base)
8−3/4
(222)
5−1/2
(140)
9−1/2
(241)
8−1/4
(210)
13−1/2
(343)
ELECTRICAL
INLETS
SIDE VIEW
DISCHARGE AIR
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
A
BC
4−1/4(108)
4−3/4
(121)
1 (25)
2 (51)
END VIEW
TOP VIEW
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
UNIT SUPPORT
FEET
EL16XC1-024 TO -060 BASE SECTION
(Medium and Large Base)
D
K
G
F
E
J
H
DIMENSIONS - UNIT - INCHES (MM)
Model No.
A B C D E F G H J K
in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm
EL16XC1-018 31 787 27 686 28 711 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
EL16XC1-024 31 787 30-1/2 775 35 889 13-7/8 352 7-3/4 197 3-1/4 83 27-1/8 689 3-5/8 92 4-1/2 114 20-5/8 524
EL16XC1-030 39 991 30-1/2 775 35 889 13-7/8 352 7-3/4 197 3-1/4 83 27-1/8 689 3-5/8 92 4-1/2 114 20-5/8 524
EL16XC1-036 35 889 30-1/2 775 35 889 13-7/8 352 7-3/4 197 3-1/4 83 27-1/8 689 3-5/8 92 4-1/2 114 20-5/8 524
EL16XC1-041 35 889 30-1/2 775 35 889 13-7/8 352 7-3/4 197 3-1/4 83 27-1/8 689 3-5/8 92 4-1/2 114 20-5/8 524
EL16XC1-042 39 991 30-1/2 775 35 889 13-7/8 352 7-3/4 197 3-1/4 83 27-1/8 689 3-5/8 92 4-1/2 114 20-5/8 524
EL16XC1-047 35 889 35-1/2 902 39-1/2 1003 16-7/8 429 8-3/4 222 3-1/8 79 30-3/4 781 4-5/8 117 3-3/4 95 26-7/8 683
EL16XC1-048 39 991 30-1/2 775 35 889 13-7/8 352 7-3/4 197 3-1/4 83 27-1/8 689 3-5/8 92 4-1/2 114 20-5/8 524
EL16XC1-060 35 889 35-1/2 902 39-1/2 1003 16-7/8 429 8-3/4 222 3-1/8 79 30-3/4 781 4-5/8 117 3-3/4 95 26-7/8 683
