Page 13

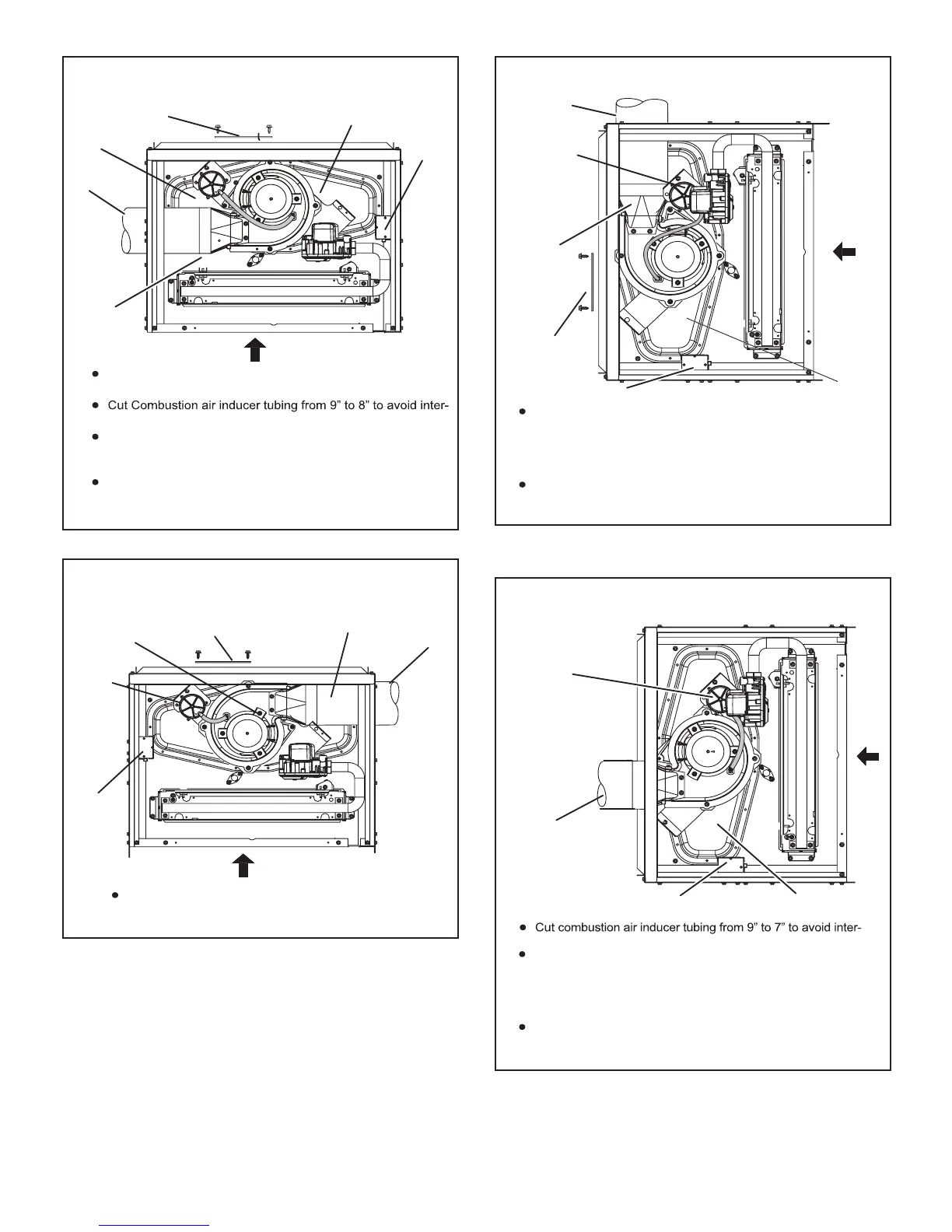

UPFLOW POSITION
Left Side Vent Discharge
Gas supply piping must be brought into the unit from the right
side in order to accommodate the flue pipe.
ference with inducer motor
Remove make-up box assembly (2 screws) and cut wire tie to
free make-up box wires. Re-install make-up box on other side
of cabinet.
Re-secure make-up box wires: Either pull excess wires
through the blower compartment and secure using supplied
wire tie, or coil excess wire and secure to the gas manifold.
FLOW
AIR
Make-Up
Box
Pressure
Switch
Flue
Transition
Vent Pipe
Cover Plate
Collector Box
Figure 16
UPFLOW POSITION
Right Side Vent Discharge
FLOW
AIR
Cover Plate
Flue Transition
Vent Pipe
Pressure
Switch
Make-Up
Box
Collector Box
Cut combustion air inducer tubing from 9” to 5” to avoid
interference with inducer motor
Figure 17
HORIZONTAL LEFT POSITION
Top Vent Discharge
Disconnect pressure switch hose from barbed fitting on the
pressure switch assembly. Remove pressure switch assembly
(1 screw) and cut wire tie to free pressure switch wires. Re-
install pressure switch on the other side of orifice plate and re-
connect pressure switch hose.
Re-secure pressure switch wires: Either pull excess wires
through the blower compartment and secure using supplied
wire tie, or coil excess wire and secure to the gas manifold.
Pressure
Switch
Vent Pipe
Flue
Transition
Cover Plate
Make-Up Box
Collector Box
FLOW
AIR
Figure 18
Make-Up Box
Collector Box
Vent Pipe
Pressure Switch
HORIZONTAL LEFT POSITION
Side Vent Discharge
Disconnect pressure switch hose from barbed fitting on the
pressure switch assembly. Remove pressure switch assembly
(1 screw) and cut wire tie to free pressure switch wires. Re-
install pressure switch on the other side of orifice plate and re-
connect pressure switch hose.
Re-secure pressure switch wires: Either pull excess wires
through the blower compartment and secure using supplied
wire tie, or coil excess wire and secure to the gas manifold.
FLOW
AIR
ference with inducer motor
Figure 19
