Lennox Elite ELS Series User Manual

Page 3

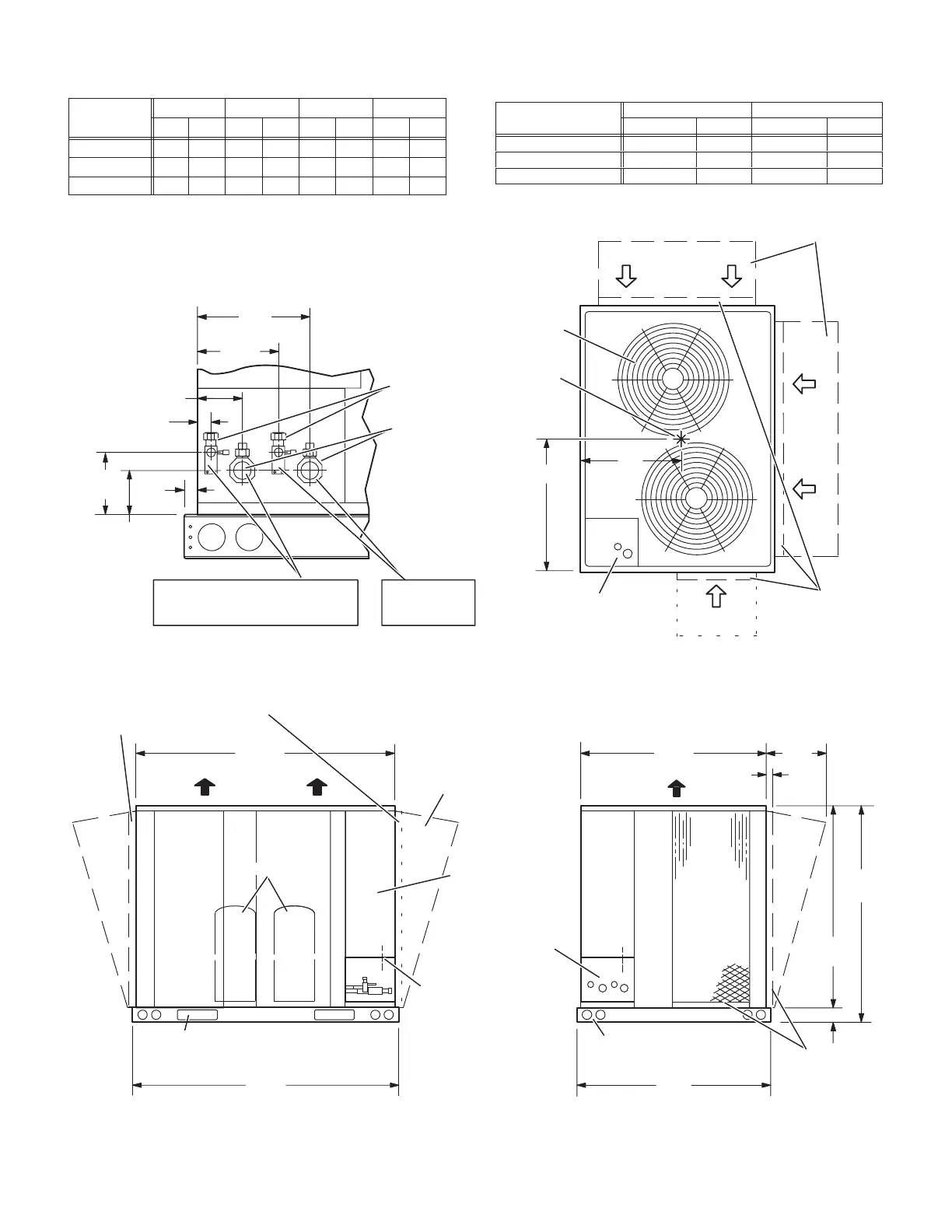

ELS120S4S, ELS120S4D AND ELS150S4D
Corner Weight
Model No.
AA BB CC DD
lbs. kg lbs. kg lbs. kg lbs. kg
ELS 120S4S 130 59 124 56 107 49 111 50
ELS 120S4D 122 55 119 54 127 58 131 59
ELS 150S4D
144 66 132 60 133 60 145 66
Centers of Gravity
Model No.
EE FF
inch mm inch mm
ELS 120S4S
20.5 521 33.5 851
ELS 120S4D 21.0 533 28.5 724
ELS 150S4D
19.0 483 30.0 762
DISCHARGE
AIR
REFRIGERANT
LINE CONNECTIONS
SEE DETAIL
DISCHARGE
AIR
41−3/8
(1051)
LIFTING HOLES
(For Rigging)
SIDE VIEW
43−5/8
(1108)
48−3/4
(1238)
3−1/2
(89)
45−1/4
(1149)
BASE
60−1/8
(1527)
57−7/8
(1470)
COMPRESSOR
BASE
FRONT VIEW
FORKLIFT SLOTS
(Both Sides)
CONTROL
BOX ACCESS
ELECTRICAL
INLETS (Above
Refrigerant Lines)
TOP VIEW
FF
EE
INLET AIR
INLET AIR
BBAA
CC
DD
CENTER OF
GRAVITY
ELECTRICAL
INLETS (Above
Refrigerant Lines)
OUTDOOR FAN
GUARDS (2)
INLET AIR
OPTIONAL
COIL GUARD
(Field Installed
All Coil Sides)
(Not used with
Hail Guard)
2(51)
OPTIONAL HAIL GUARD
(Field Installed All Coil Sides)
(Not used with Coil Guard)
OPTIONAL HAIL GUARD
(Field Installed All Coil Sides)
(Not used with Coil Guard)
5
(127)
(54)
(232)
(29)
(95)
(165)
SUCTION
LINES
LIQUID
LINES
SINGLE STAGE
ELS120S4S
STAGE 1
ELS120S4D
ELS150S4D
STAGE 2
ELS120S4D
ELS150S4D
(29)
REFRIGERANT LINE
CONNECTIONS DETAIL
(286)
(Not used with
Hail Guard)
OPTIONAL COIL GUARD
(Field Installed All Coil Sides)
(Not used with Hail Guard)
OPTIONAL
COIL GUARD
(Field Installed
All Coil Sides)
9−1/8
6−1/2
3−3/4
1−1/8
1−1/8
2−1/8
11−1/4
