Page 4

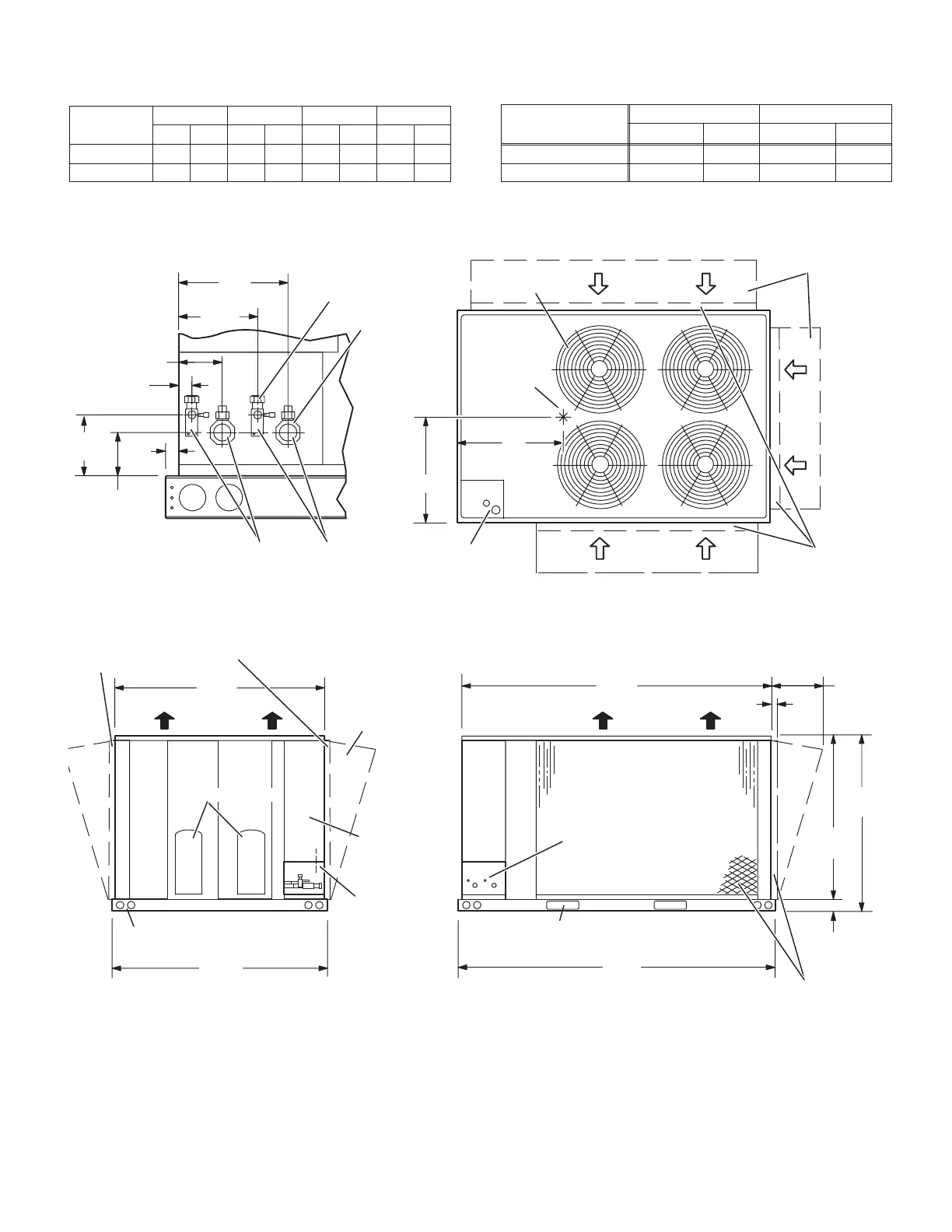

ELS180S4D AND ELS240S4D
Corner Weight
Model No.
AA BB CC DD
lbs. kg lbs. kg lbs. kg lbs. kg
ELS180S4D 181 82 177 81 215 98 221 100
ELS240S4D 192 87 189 86 232 105 238 108
Centers of Gravity
Model No.
EE FF
inch mm inch mm
ELS180S4D 29 737 38 965
ELS240S4D 29 739 38 965
(29)
DISCHARGE
AIR
INLET
AIR
(2197)
(1527)
CONTROL
BOX ACCESS
BASE
LIFTING HOLES
(For Rigging)
FRONT VIEW
5
(127)
(54)
(232)
(29)
TOP VIEW
FORKLIFT SLOTS
(Both Sides)
SIDE VIEW
(2254)
(1149)
FF
EE
CENTER OF
GRAVITY
AA
BB
CC
DD
(95)
BASE
COMPRESSOR
SUCTION
LINE (2)
LIQUID
LINE (2)
OUTDOOR FAN
GUARDS (4)
REFRIGERANT LINE
CONNECTIONS DETAIL
INLET
AIR
INLET
AIR
ELECTRICAL
INLETS (Above
Refrigerant Lines)
DISCHARGE
AIR
REFRIGERANT
LINE CONNECTIONS
SEE DETAIL
ELECTRICAL
INLETS (Above
Refrigerant Lines)
STAGE 1
STAGE 2
OPTIONAL COIL GUARD
(Field Installed All Coil Sides)
(Not used with Hail Guard)
2(51)
OPTIONAL
HAIL GUARD
(Field Installed
All Coil Sides)
(Not used with
Coil Guard)
OPTIONAL
HAIL GUARD
(Field Installed
All Coil Sides)
(Not used with
Coil Guard)
11−1/4
(Not used with
Hail Guard)
OPTIONAL COIL GUARD
(Field Installed All Coil Sides)
(Not used with Hail Guard)
OPTIONAL
COIL GUARD
(Field Installed
All Coil Sides)
9−1/8
6−1/2
(165)
3−3/4
1−1/8
1−1/8
2−1/8
(286)
48−3/4
86−1/2
(1238)
45−1/4
88−3/4
60−1/8
