FLEXYII_WSHP-IOM-1307-E - 29 -
To check the wiring, please refer to Rooftop and Recovery Module electrical diagram.
Then connect the power cable from the module to the rooftop, and
the Modbus cable according to the bus connection wiring diagram
(it could be connected to the BE60 (A1) connector in electrical
rooftop panel or other options with bus communication).

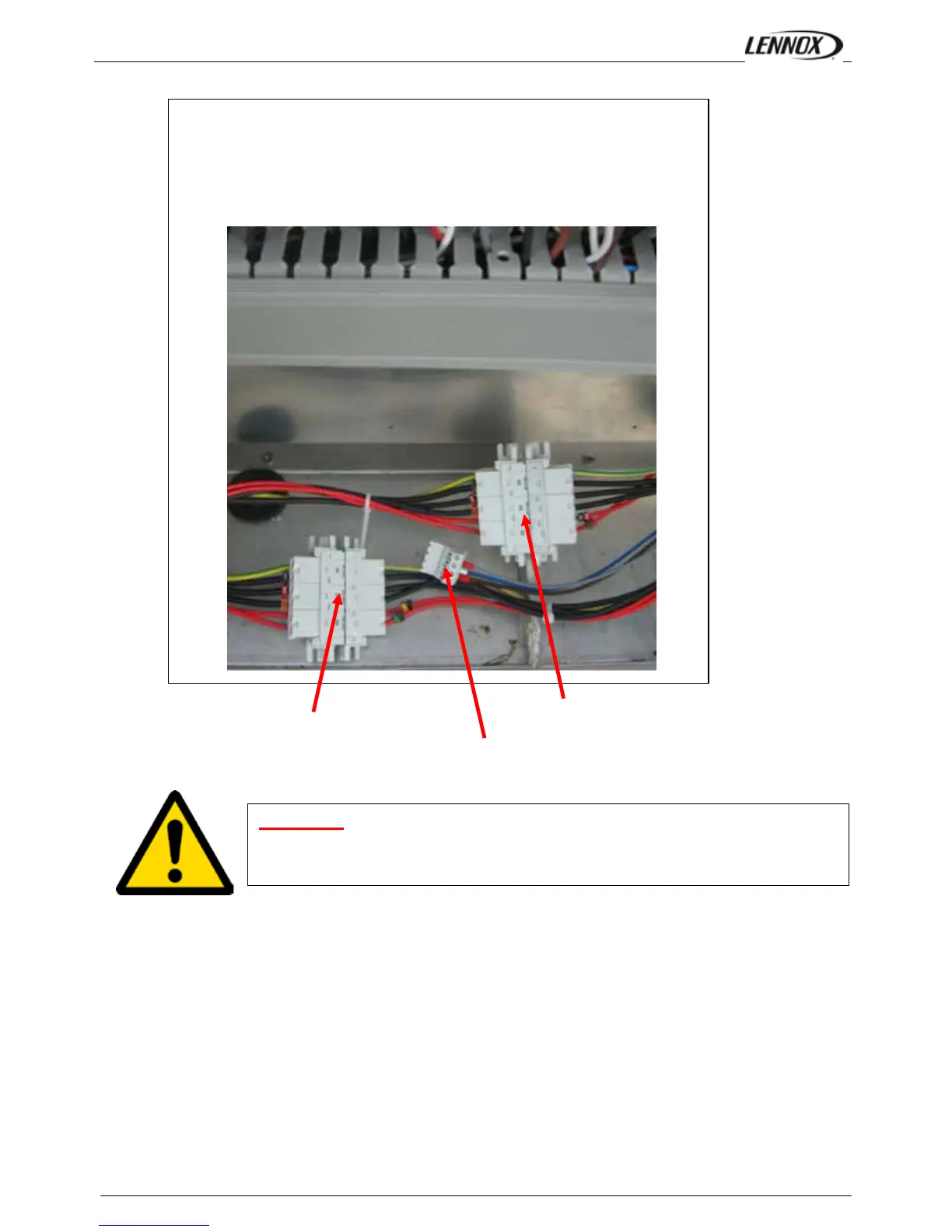

Recovery module connection
Extraction roofcurb connection
Be careful: Check connections and connect male connections to good
female one.
Roofcurb and recovery module connectors are the same.
Actuator roofcurb connection
To Next Page
