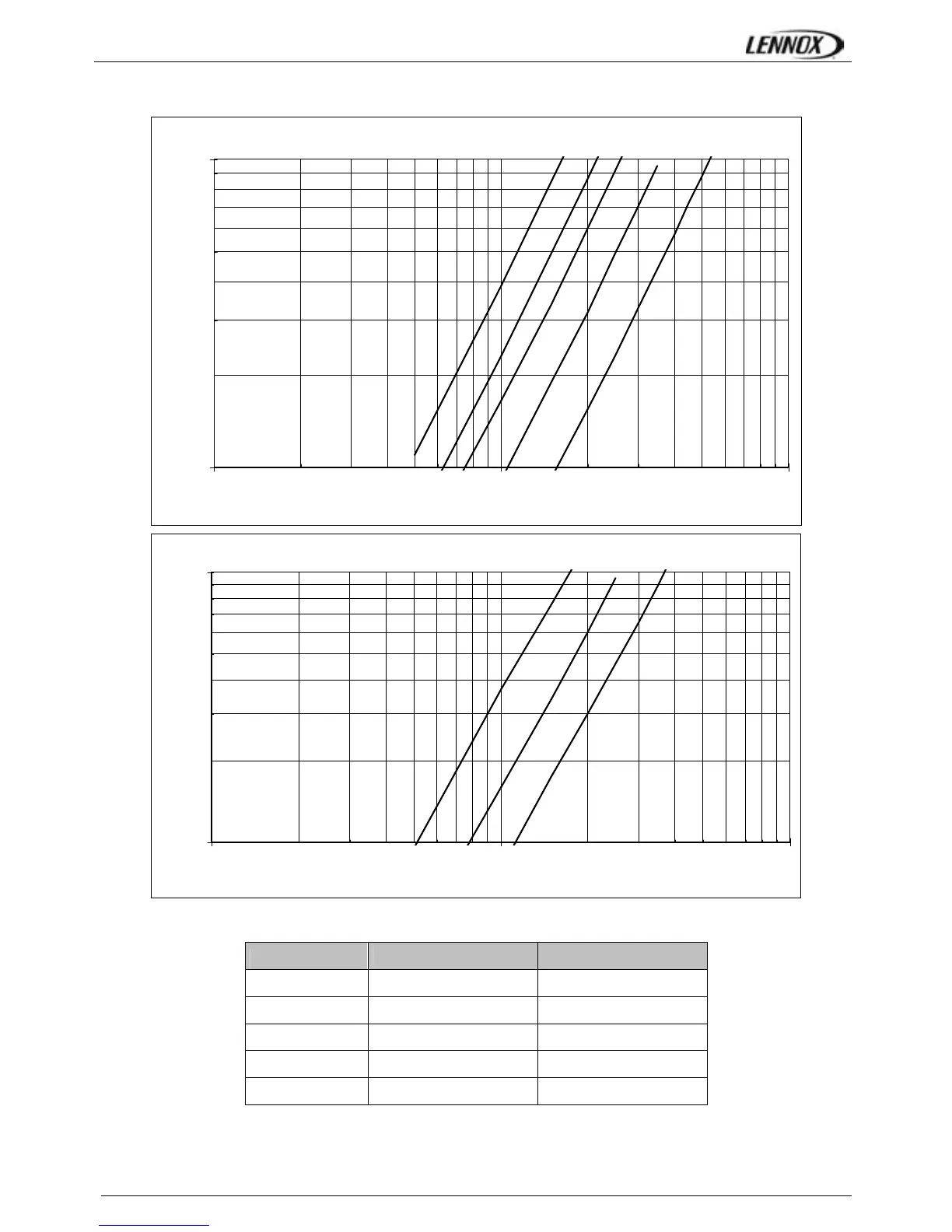

Lennox Fhm 170

WATER CONDENSING
FLEXYII_WSHP-IOM-0909-E Page 21
Pressure Loss - Heat plate Exchanger
A
B
CD
E
10
100
1 10 100
Water flow (m3/h)
Pressure Loss (kPa)
Pressure Loss - WATER FILTER
A
B
C
1.0
10.0
1 10 100
Water flow (m3/h)
Pressure Loss (kPa)
FWH/FWM
Exchanger Curve Filter Curve
85 C B
100 D B
120 D B
150 E C
170 E C
