ENERGY RECOVERY INSTALLATION
FLEXYII_WSHP-IOM-0909-E Page 33
1) The unit being already erected on the roofcurb, remove the lifting lug shown on [A], and the doors of the Recovery
module
[B].
2) Fit the support part of the Recovery Module on interior level of the rooftop ,
3) Fix the Recovery Module at the roof of the rooftop
and corner structures by using self-driling screws.
4) Apply Mastic on side junctions and on higher junction.

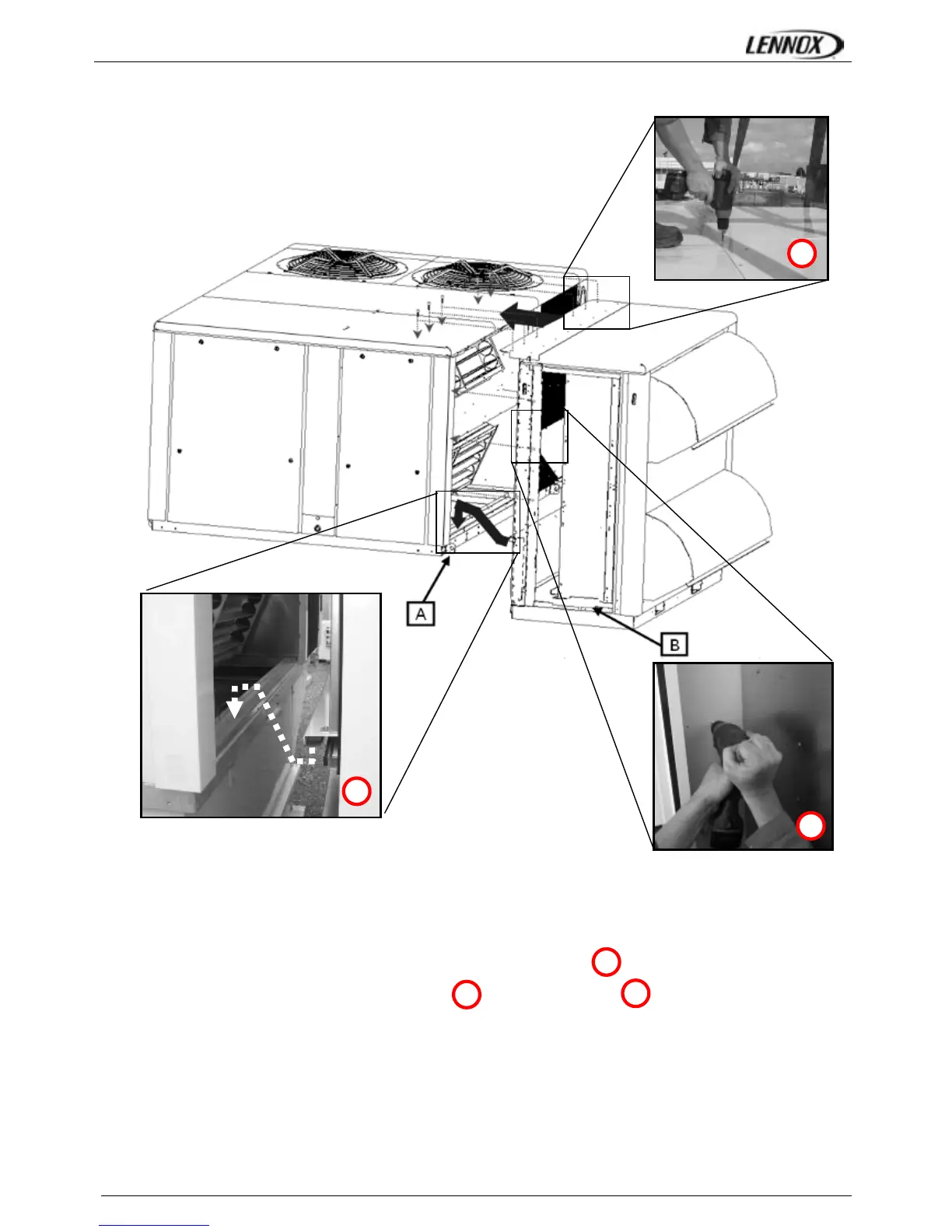

Pictures taken during assembling test of Recovery Module (H Size)
Fig. 25
