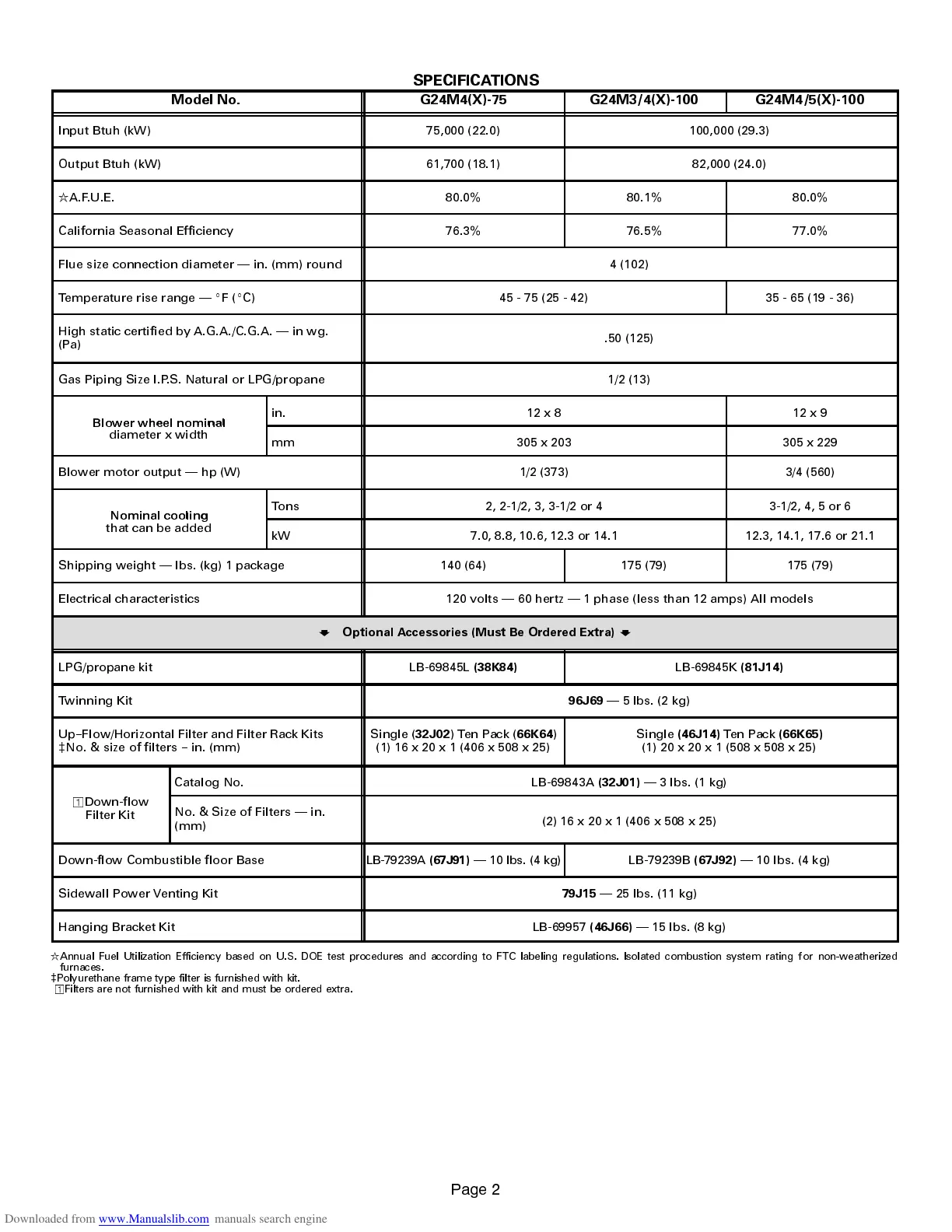

SPECIFICATIONS
Model No. G24M4(X)-75 G24M3/4(X)-100 G24M4/5(X)-100
Input Btuh (kW) 75,000 (22.0) 100,000 (29.3)
Output Btuh (kW) 61,700 (18.1) 82,000 (24.0)
R
A.F.U.E. 80.0% 80.1% 80.0%
California Seasonal Efficiency 76.3% 76.5% 77.0%
Flue size connection diameter in. (mm) round 4 (102)
Temperature rise range
E
F(
E
C) 45 - 75 (25 - 42) 35 - 65 (19 - 36)
High static certified by A.G.A./C.G.A. in wg.
(Pa)
.50 (125)
Gas Piping Size I.P.S. Natural or LPG/propane 1/2 (13)
in. 12 x 8 12 x 9
ower w
ee
nom
na
diameter x width
mm 305 x 203 305 x 229
Blower motor output hp (W) 1/2 (373) 3/4 (560)
Tons 2, 2-1/2, 3, 3-1/2 or 4 3-1/2, 4, 5 or 6
om
na
coo
ng
that can be added
kW 7.0, 8.8, 10.6, 12.3 or 14.1 12.3, 14.1, 17.6 or 21.1
Shipping weight lbs. (kg) 1 package 140 (64) 175 (79) 175 (79)
Electrical characteristics 120 volts 60 hertz 1 phase (less than 12 amps) All models
H
Optional Accessories (Must Be Ordered Extra)
H
LPG/propane kit LB-69845L
(38K84)
LB-69845K
(81J14)
Twinning Kit
96J69
5 lbs. (2 kg)
Up--Flow/Horizontal Filter and Filter Rack Kits
c
No. & size of filters -- in. (mm)
Single (
32J02
) Ten Pack (
66K64
)
(1) 16 x 20 x 1 (406 x 508 x 25)
Single
(46J14)
Ten Pack
(66K65)
(1) 20 x 20 x 1 (508 x 508 x 25)
Catalog No. LB-69843A
(32J01)
3 lbs. (1 kg)
o
Down-flow
Filter Kit
No. & Size of Filters in.
(mm)
(2) 16 x 20 x 1 (406 x 508 x 25)
Down-flow Combustible floor Base LB-79239A
(67J91)
10lbs.(4kg) LB-79239B
(67J92)
10 lbs. (4 kg)
Sidewall Power Venting Kit
79J15
25 lbs. (11 kg)
Hanging Bracket Kit LB-69957
(46J66)
15 lbs. (8 kg)
R
Annual Fuel Utilization Efficiency based on U.S. DOE test procedures and according to FTC labeling regulations. Isolated combustion system rating f or non-weatherized
furnaces.
c
Polyurethane frame type filter is furnished with kit.
o
Filters are not furnished with kit and must be ordered extra.
