Lennox G24M SERIES Unit Information

Page 7

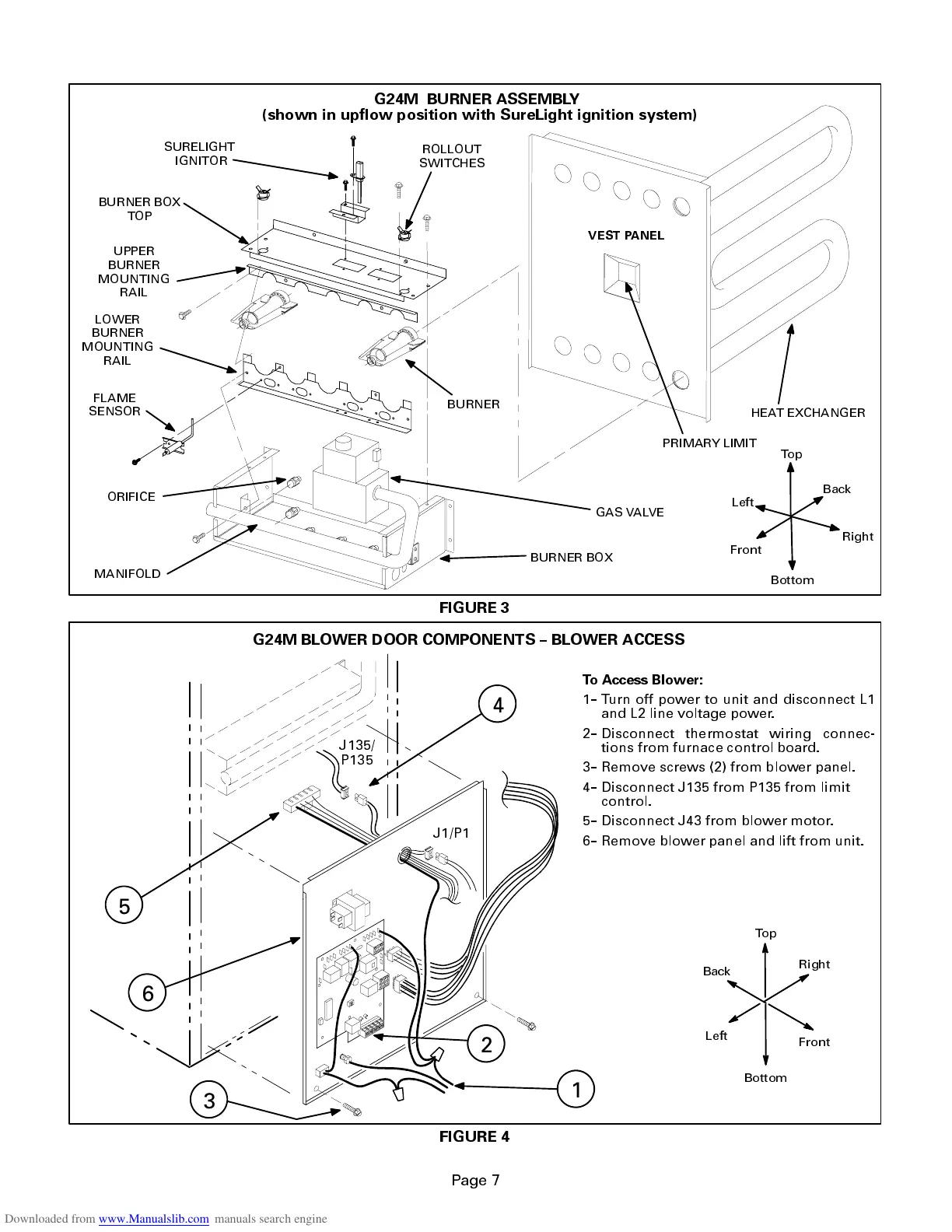

FIGURE 3
Top
G24M BURNER ASSEMBLY
(shown in upflow position with SureLight ignition system)
FLAME
SENSOR
MANIFOLD
ORIFICE
GAS VALVE
HEAT EXCHANGER
VEST PANEL
BURNER
UPPER
BURNER
MOUNTING
RAIL
LOWER
BURNER
MOUNTING
RAIL
BURNER BOX
BURNER BOX
TOP
Front
Right
Bottom
Left
Back
PRIMARY LIMIT
ROLLOUT
SWITCHES
SURELIGHT
IGNITOR
FIGURE 4
To Access Blower:
1-- Turn off power to unit and disconnect L1
and L2 line voltage power.
2-- Disconnect thermostat wiring connec-
tions from furnace control board.
3-- Remove screws (2) from blower panel.
4-- Disconnect J135 from P135 from limit
control.
5-- Disconnect J43 from blower motor.
6-- Remove blower panel and lift from unit.
G24M BLOWER DOOR COMPONENTS -- BLOWER ACCESS
Top
Bottom
Left
Right
Back
Front
4
1
J1/P1
J135/
P135
2
3
5
6
