Page 6

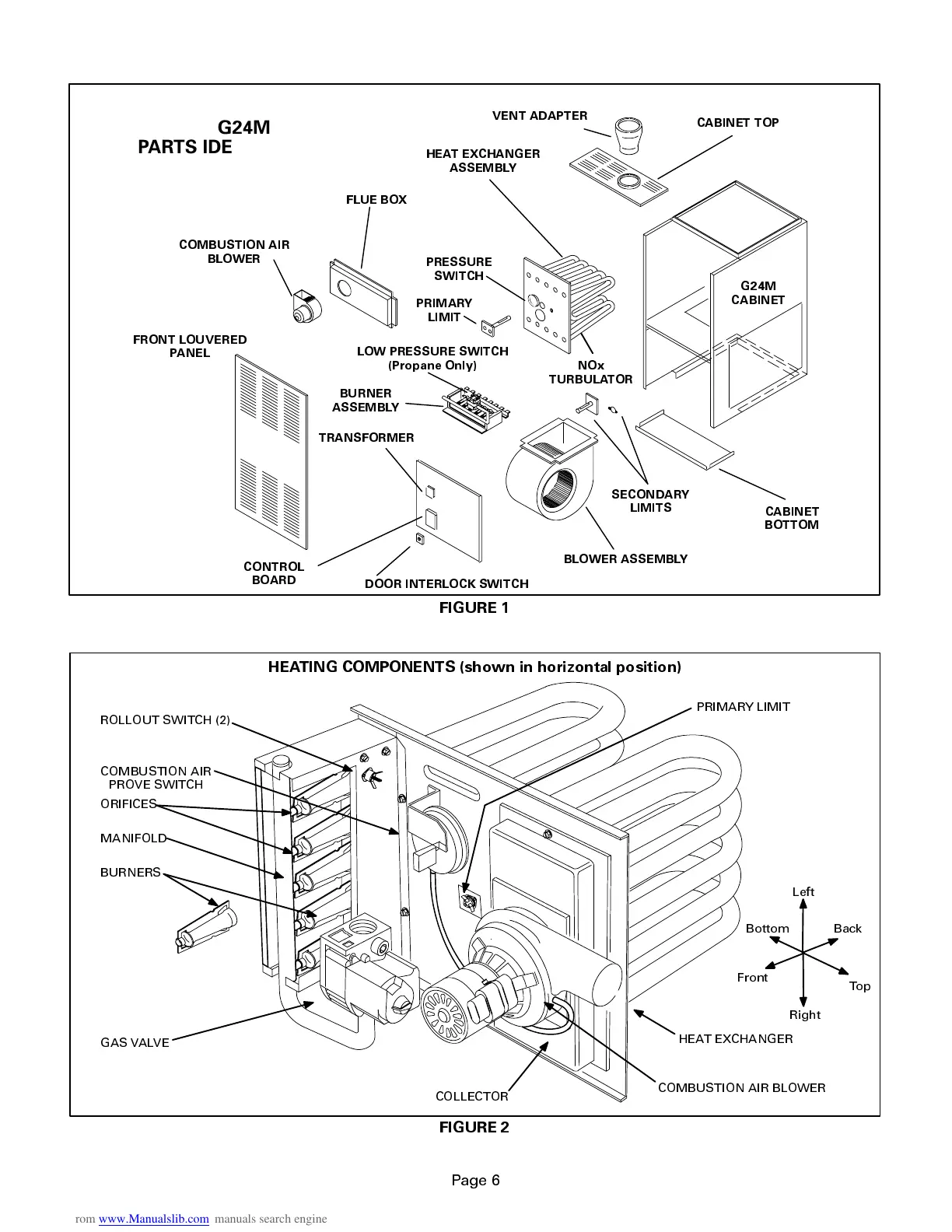

FIGURE 1
G24M
PARTS I DENTIFICATION
VENT ADAPTER
CABINET TOP
G24M
CABINET
CABINET
BOTTOM
HEAT EXCHANGER
ASSEMBLY
BURNER
ASSEMBLY
BLOWER ASSEMBLY
COMBUSTION AIR
BLOWER
FLUE BOX
SECONDARY
LIMITS
FRONT LOUVERED
PANEL
DOOR INTERLOCK SWITCH
CONTROL
BOARD
TRANSFORMER
PRESSURE
SWITCH
NOx
TURBULATOR
LOW PRESSURE SWITCH
(Propane Only)
PRIMARY
LIMIT
FIGURE 2
HEATING COMPONENTS (shown in horizonta
l position)
HEAT EXCHANGER
COMBUSTION AIR BLOWER
MANIFOLD
ROLLOUT SWITCH (2)
COMBUSTION AIR
PROVE SWITCH
GAS VALVE
BURNERS
COLLECTOR
PRIMARY LIMIT
ORIFICES
Front
Right
Top
Bottom
Left
Back
