Lennox G60UH Series User Manual

Page 25
G60UH Series

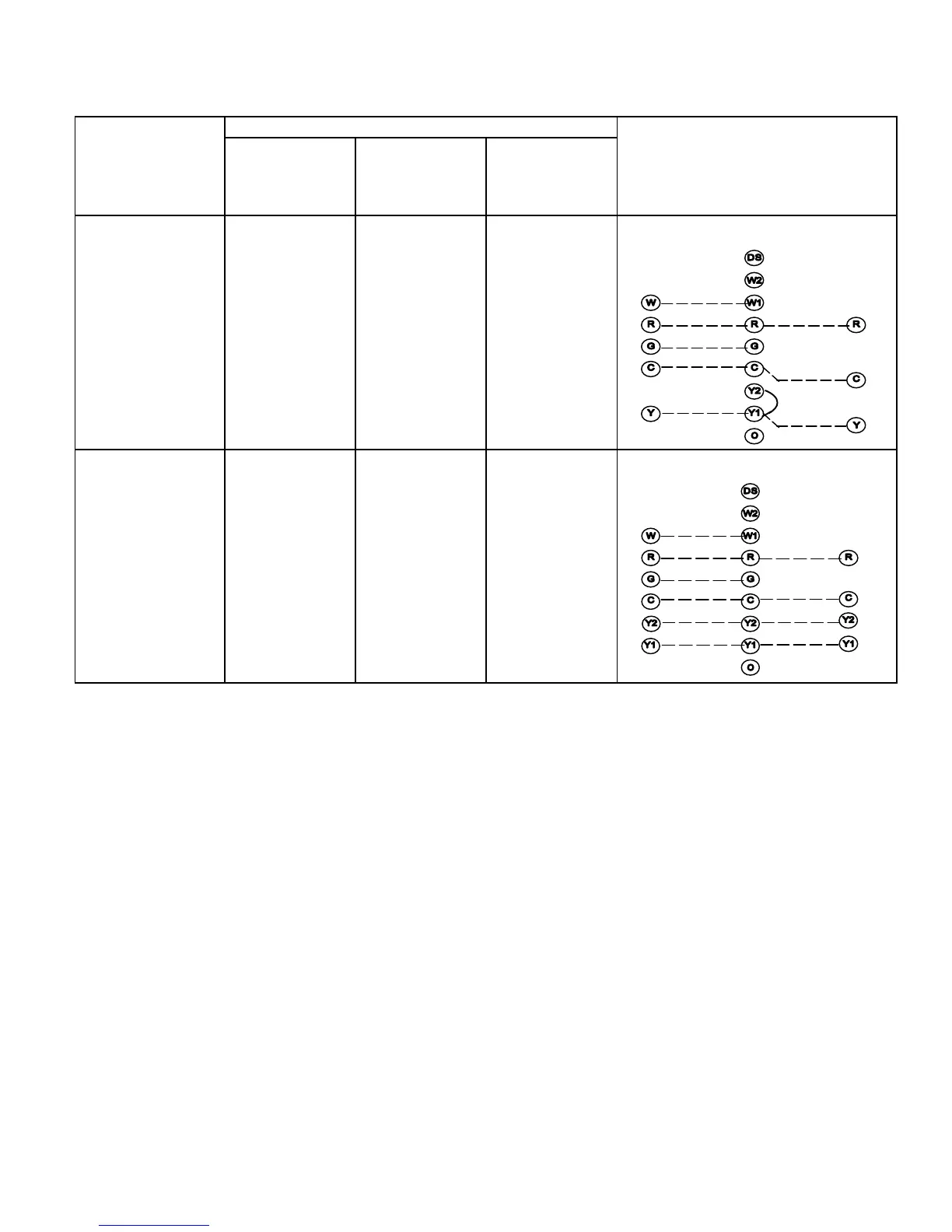

TABLE 10
Field Wiring Applications
Thermostat
DIP Switch Settings and On−Board Links (See figure 25)
Wiring Connections
DIP Switch 1
W915
Two−Stage
Cooling
W951
Heat Pumps
1 Heat / 1 Cool
NOTE − Use DIP
switch 2 to set sec-
ond−stage heat ON
delay.
OFF10 minutes.
ON−15 minutes.
ON Intact Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
1 Heat / 2 Cool
NOTE − Use DIP
switch 2 to set sec-
ond−stage heat ON
delay.
OFF−10 minutes.
ON−15 minutes.
ON Cut Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
