506176−01 01/2010
TABLE 10

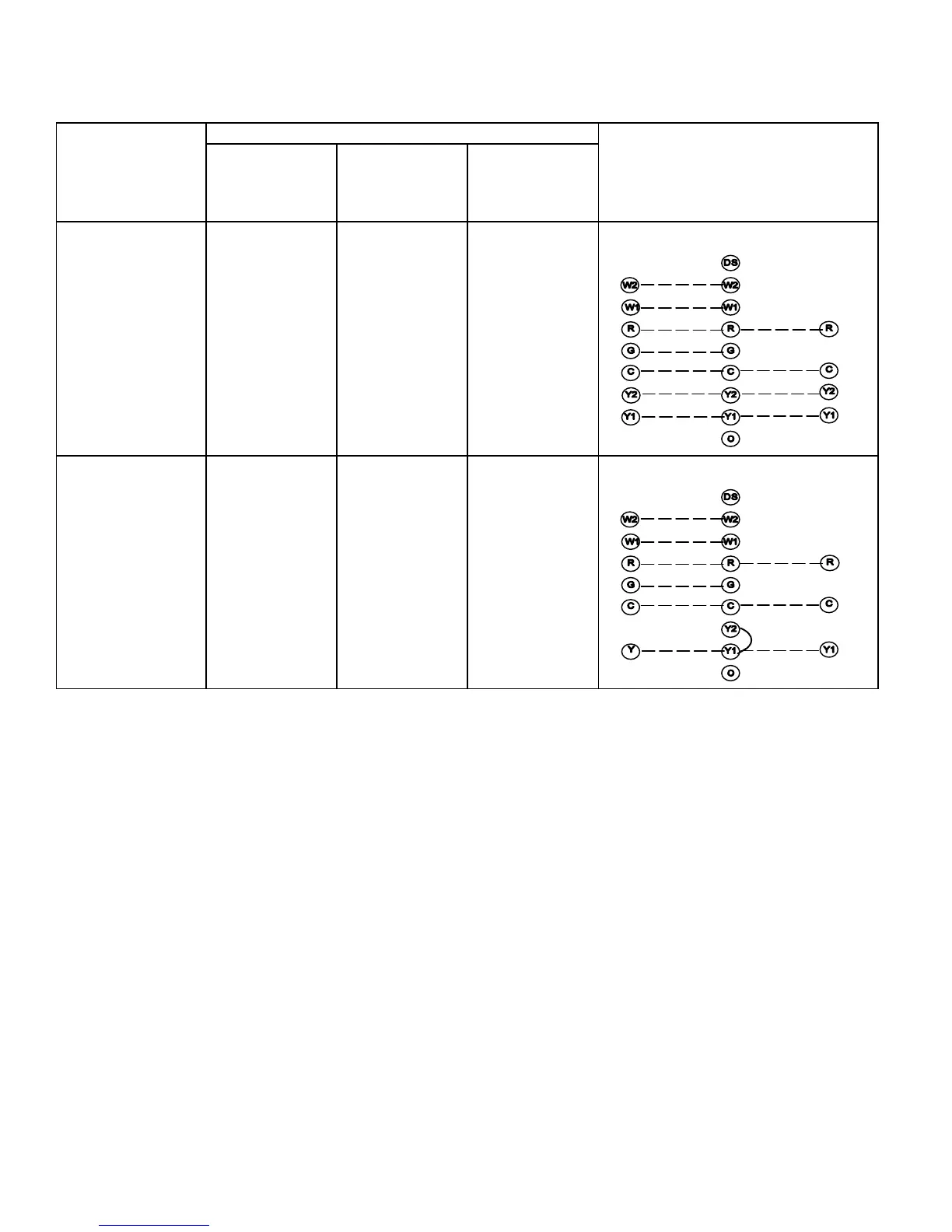

Field Wiring Applications (Continued)
Thermostat
DIP Switch Settings and On−Board Links (See figure 25)
Wiring Connections
DIP Switch 1
W915
Two−Stage
Cooling
W951
Heat Pumps
2 Heat / 2 Cool OFF Cut Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
2 Heat / 1 Cool OFF Intact Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
