1016
A
UP−FLOW POSITION
B
1016
A
HORIZONTAL
B
Coil
Height
Overall
Height
1016
Furnace
Width
Coil
Width
DOWN−FLOW POSITION
G61MPVT − 50hz / Page 9

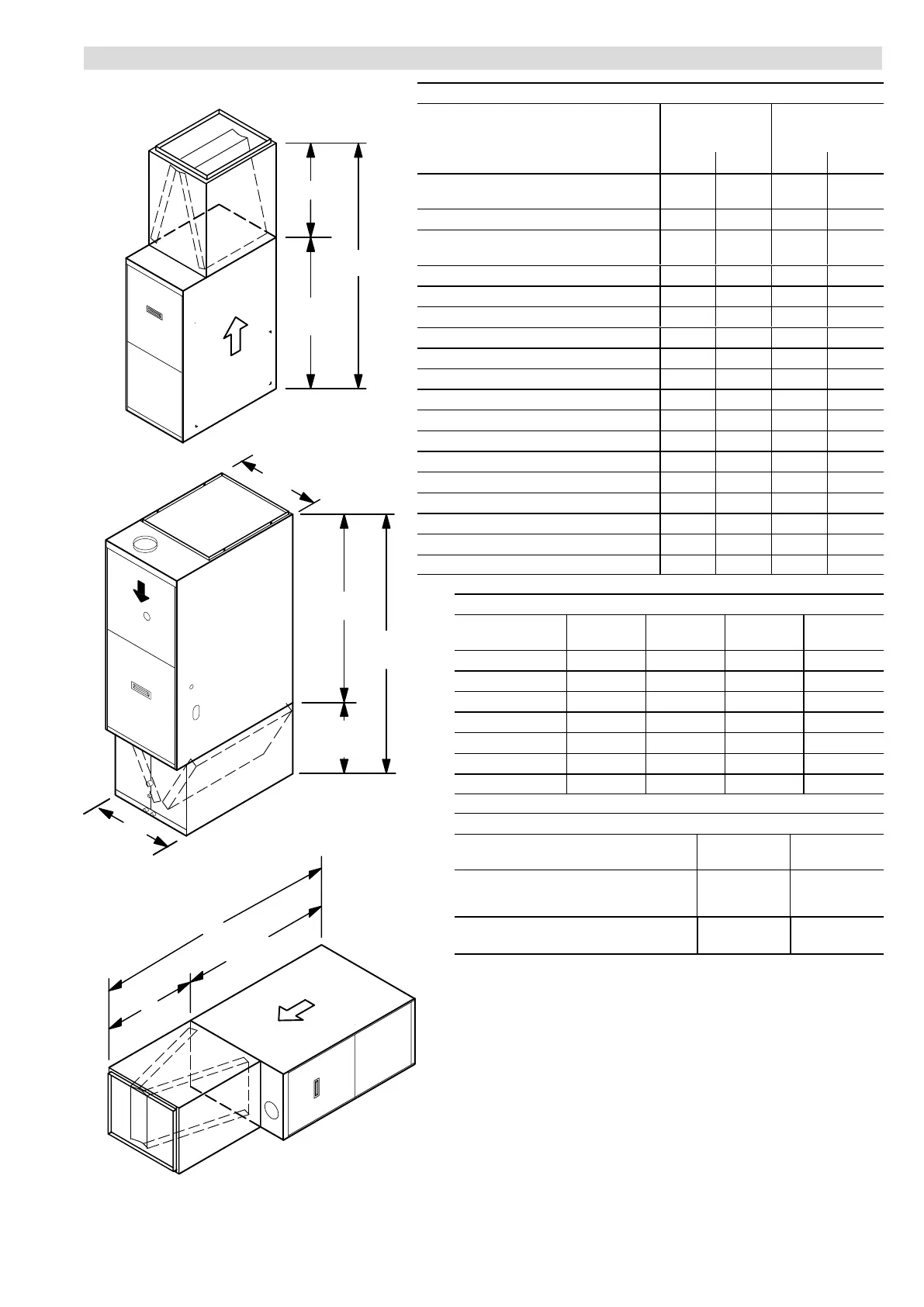

DIMENSIONS − mm − FURNACE/COIL COMBINED DIMENSIONS
UP−FLOW POSITION
Model No
Cased
Uncased
(CX34 − cased
only)
A B A B
CX34−18/24B−6F
CX34−18/24C−6F
C33−24B
C33−24C
419 1435 352 1368
CX34−25B−6F C33−25B 495 1511 403 1419
CX34−30B−6F
CX34−30C−6F
C33−30B
C33−30C
521 1537 451 1467
CX34−31B−6F C33−31B 597 1613 514 1530
CX34−36B−6F C33−36B 622 1638 556 1572
CX34−36C−6F C33−36C 622 1638 540 1556
CX34−38B−6F C33−38B 622 1638 559 1575
CX34−42B−6F C33−42B 622 1638 556 1572
CX34−43B−6F C33−43B 724 1740 667 1683
CX34−43C−6F C33−43C 724 1740 654 1670
C33−44C 622 1638 546 1562
CX34−44/48B−6F C33−48B 622 1638 562 1578
CX34−44/48C−6F C33−48C 622 1638 546 1562
CX34−49C−6F C33−49C 749 1765 724 1740
CX34−50/60C−6F C33−50/60C 699 1715 629 1645
CX34−60D−6F C33−60D 648 1664 629 1645
CX34−62C−6F C33−62C 749 1765 778 1793
CX34−62D−6F C33−62D 749 1765 730 1746
DOWN−FLOW POSITION
Model
Number
Coil Width
Furnace
Width
Coil Height
Overall
Height
CR33-24B−F
446 446 337 1353
CR33-30/36B−F 446 446 410 1426
CR33-30/36C−F 533 533 410 1426
CR33-48B−F
533 446 508 1524
CR33-48C−F
533 533 508 1524
CR33-50/60C−F 622 533 600 1362
CR33-60D−F 622 622 600 1362
HORIZONTAL POSITION
Model
Number
A B
CH33−36B−2F
CH33−36C−2F
CH33−42B−2F
CH33−48C−2F
CH33−60D−2F
673 1689
CH33−44/48B−2F
CH33−50/60C−2F
CH33−62D−2F
800 1816
