SETTING AWAY MODE PER ZONE
AVAILABLE ZONES
fan is
OFF
fan is
AUTO
Den
75
Press any zone button to make this thermostat contr0l that zone.
72
9:39 am May 23, 2012
Wi-Fi
?
70
Living Room
75
85
62
Master Bed
75
85
62
Zone 3
75
72
70

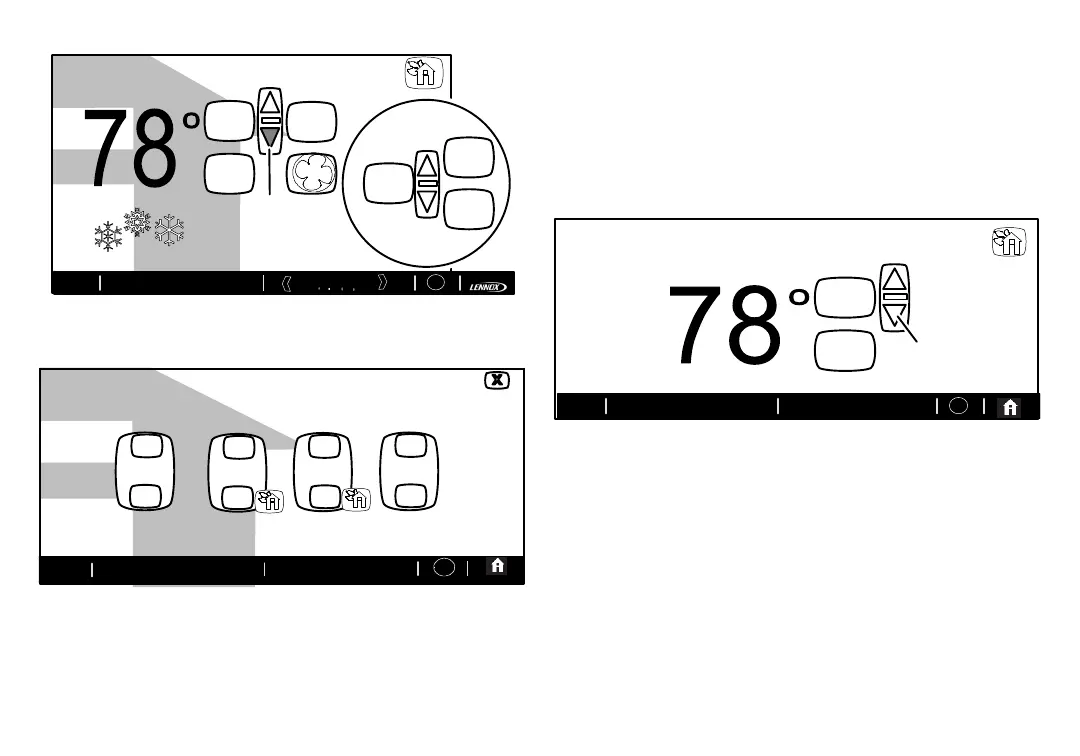

Figure 30. Home Screen - Selecting Away Mode for Individual Zones
The Zone 1 thermostat becomes the system master thermostat. If the Zone
1 thermostat is set for Away Mode (on the Home Screen), the away mode is
enabled for the whole system (all zones) until canceled.
If zones 2, 3, or 4 are set for Away Mode on the Home Screen, the Away
Mode icon appears at the lower-right of each zone button on the AVAILABLE
ZONES screen.
ADJUSTING AWAY MODE TEMPERATURE OR CANCEL AWAY
MODE PER ZONE
To adjust the Away Mode zone temperature setting or to cancel Away Mode
for a specific zone, enter the Home Screen, select the desired zone and
touch the Cancel Away icon located in the upper right-hand corner of the
screen.
indoor temperature
cool-to
set temp
82
heat to
60
use arrows to change
temperature
9:39 am May 23, 2012
Wi-Fi
?
cancel
away
this zone in AWAY mode, use cancel to exit AWAY mode.
Figure 31. Adjusting Temperature or Canceling Away Mode with
Program Running (Away Mode)
HOW TO DISABLE ZONING
From the Home screen, select the right arrow to proceed to the FEATURES
screen. Select zone settings and then select zoning is ON. This will toggle
zoning to OFF. Once disabled, zoning information disappears from the
status bar along the bottom of the home screen. When zoning has been
disabled, the master thermostat controls the entire system in single comfort
mode.
NOTE - When Zoning is disabled, the in-zone thermostats are also disabled;
however, each of the zone thermostats continues to display the current
temperature for that zone. The iComfort
®
logo is also displayed to indicate
that zoning is off.
