Lennox KHA SERIES - Remove Filter; Clean Outdoor Coil

Page 34

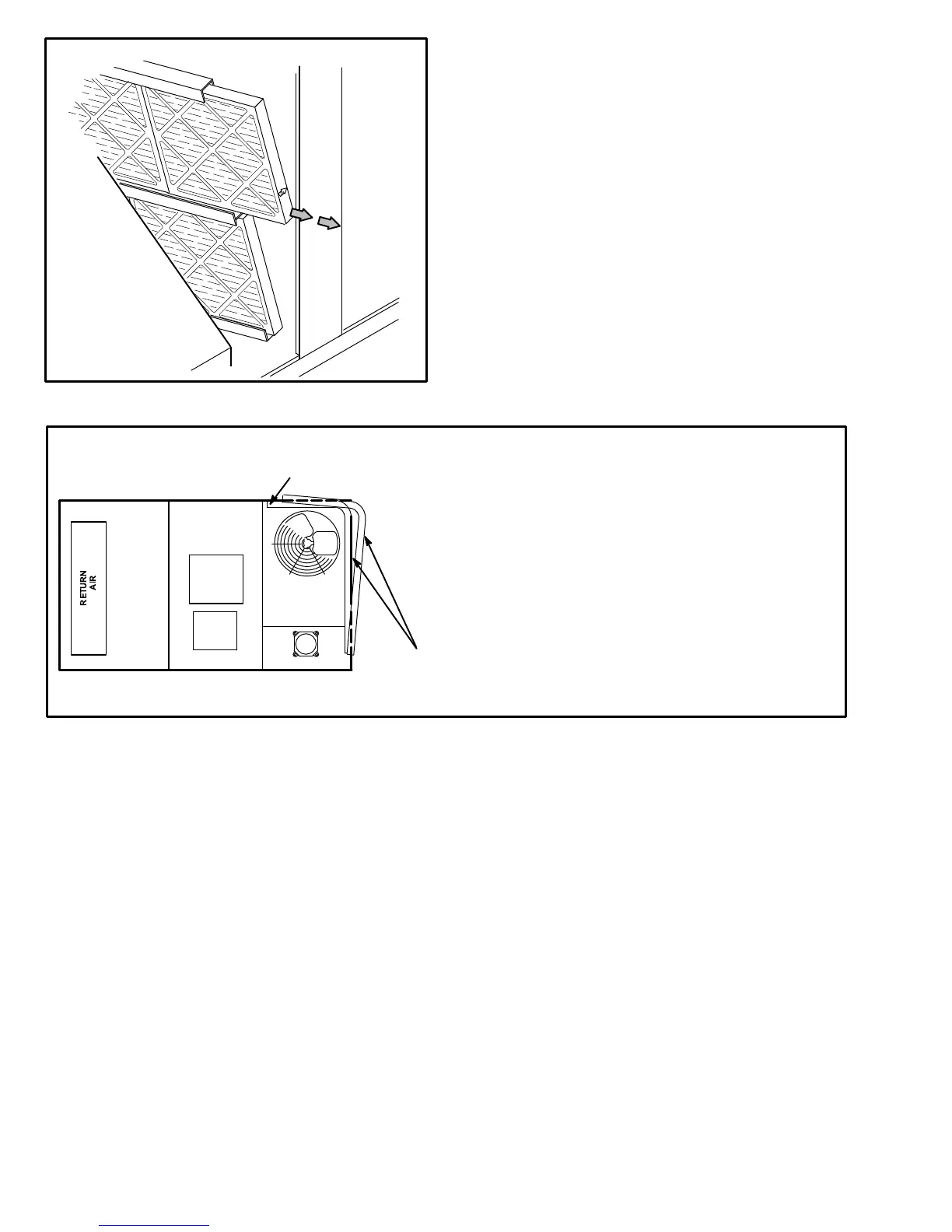

FIGURE 13
REMOVE FILTERS
PULL TO
REMOVE
FILTERS
TOP VIEW
OUTDOOR
COILS
BLOWER
FIGURE 14
ENDPLATE IS SECURED
TO MULLION
1− Remove screws securing coil end plate to mullion.
2− Remove clips connecting coils slabs and separate
slabs 3−4" (76−102mm).
3− Clean coils with detergent or commercial coil cleaner.
4− Rinse thoroughly with water and reassemble.
CLEAN OUTDOOR COIL
SUPPLY
AIR
