Lennox KJR-120G1/TFBG-E

6
3. INSTALLATION METHOD

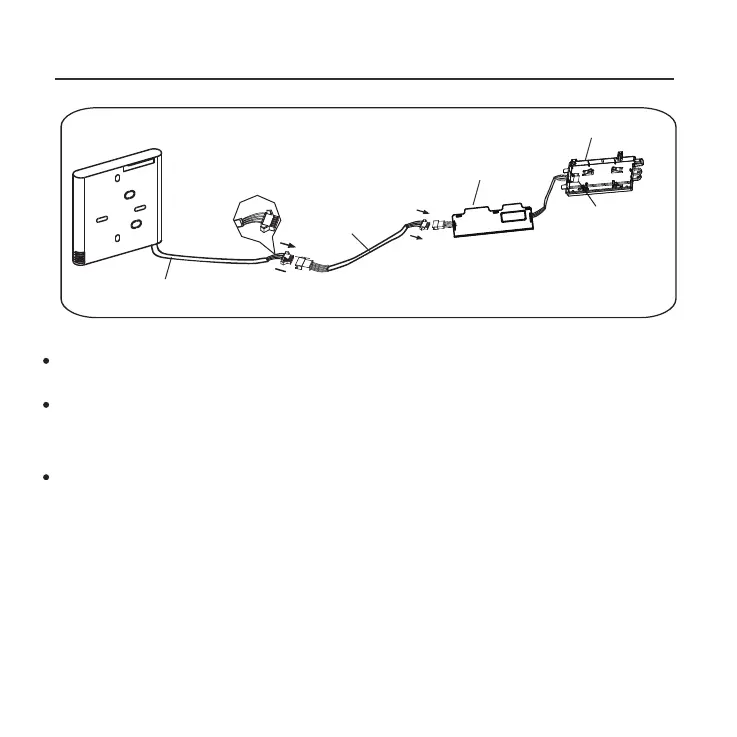

Model B:KJR-120G1/TFBG-E(5V) Fig 3-4(B)
Adapter board
Display board
4-core shielding wire
The connection
cable
CN101
Connect the female joint of the wires group from the adapter board
with the male joint of theconnective wires group. Next, connect the
other side of the adapter board with the displayboard. (See Fig.3-4(B))
Connect the other side of the connective wires group with the male
joint of the wires group leads from the wire controller. (See Fig.3-4(B))
Install the Adapter Board and the Display Board on the High Wall
(See the Appendix for instructions).
