LGH/LCH036, 048, 060, 072

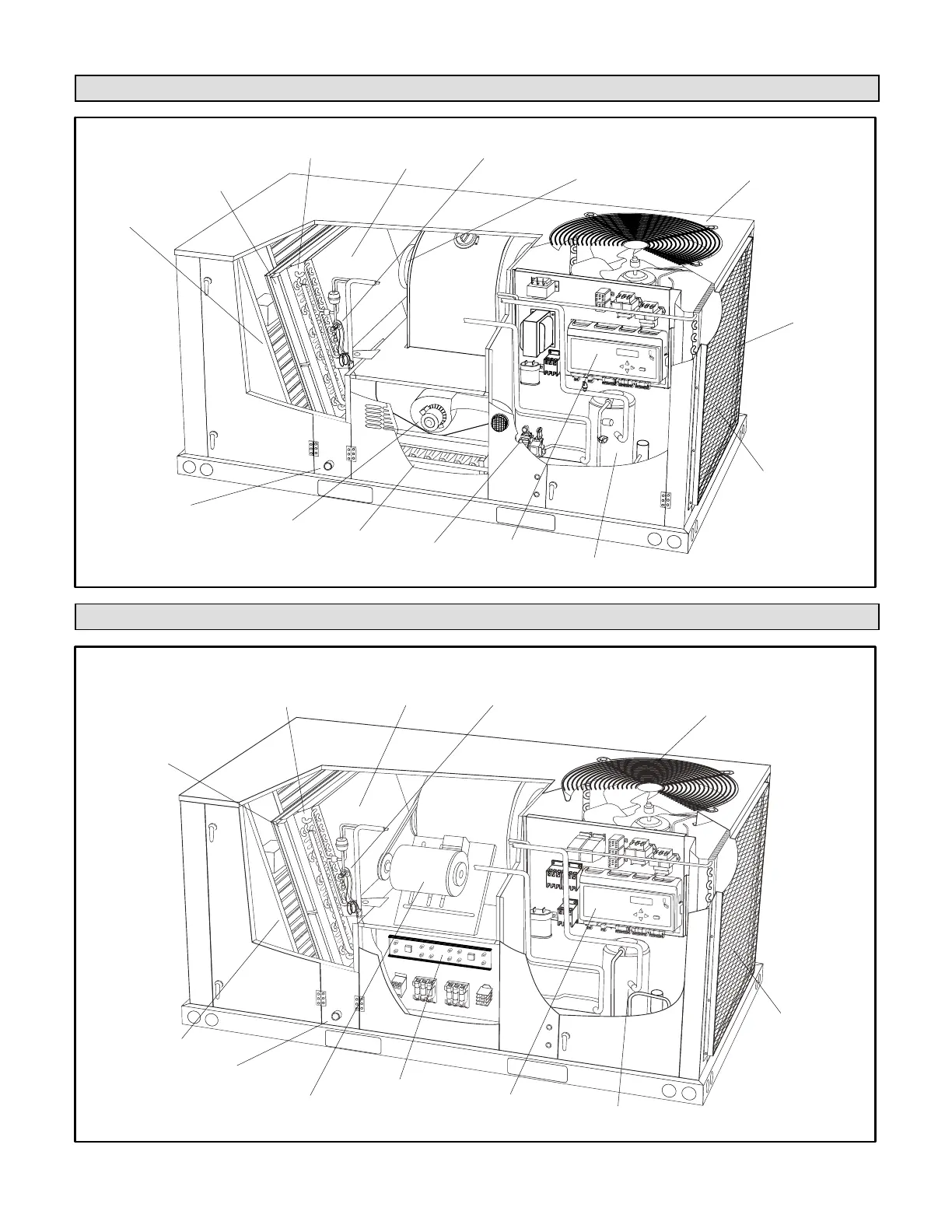

LGH036, 048, 060, & 072 PARTS ARRANGEMENT
LL
E
N
O
X
N
L
E
N
O
X
N
L
E
N
O
X
N
EVAPORATOR
COIL
CONDENSER
FAN
CONDENSER
COIL
COMPRESSOR
CONDENSATE
DRAIN
FILTERS (4)
036, 048:16 X 20 X 2”
060, 072: 20 X 20 X 2”
ECONOMIZER
(OPTIONAL)
GAS VALVE
BURNERS
COMBUSTION
AIR INDUCER
BLOWER
MOTOR
(DIRECT DRIVE SHOWN)
TXV
UNIT
CONTROLLER
REHEAD COIL
(OPTIONAL)
BLOWER
COIL
GUARDS
(OPTIONAL)
LCH036, 048, 060, & 072 PARTS ARRANGEMENT
LL
E
N
O
X
N
L
E
N
O
X
N
L
E
N
O
X
N
ELECTRIC HEAT
(Optional)
EVAPORATOR
COIL
CONDENSER
FAN
CONDENSER
COIL
COMPRESSOR
CONDENSATE
DRAIN
ECONOMIZER
(OPTIONAL)
BLOWER
BLOWER
MOTOR
(BELT DRIVE SHOWN)
FILTERS (4)
036, 048:16 X 20 X 2”
060, 072: 20 X 20 X 2”
TXV
UNIT
CONTROLLER
REHEAT COIL
(OPTIONAL)
