Page 3
LGH036-360 User's

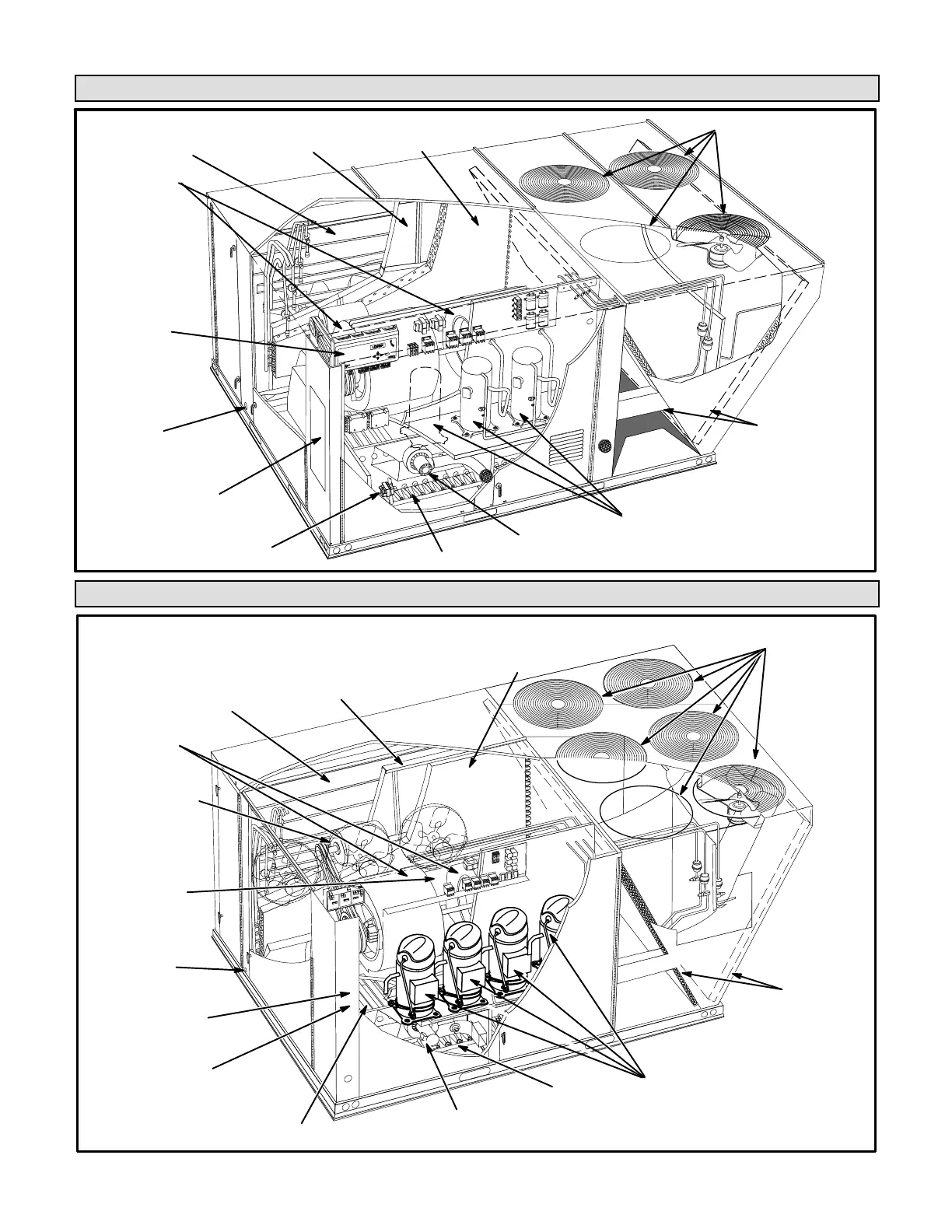

LGH156, 180, 210, 240, 300S Parts Arrangement
EVAPORATOR
COIL
COMBUSTION
AIR INDUCER
CONDENSER
FANS
(3 FANS ON 156
UNITS; 6 FANS
ON 210, 240, &
300S UNITS
CONDENSER
COILS (RIGHT COIL
IS VERTICAL ON
156 UNITS)
COMPRESSORS
(4 ON 240 & 300S UNITS)
GAS VALVE
BURNERS
BLOWERS
CONDENSATE
DRAIN
FILTERS
(SIX - 24 X 24 X 2”)
ECONOMIZER
DAMPERS (OPTIONAL)
UNIT
CONTROLLER
DISCONNECT
(Factory-installed option)
LGH242, 300H, 360 Parts Arrangement
BURNERS
COMPRESSORS
COMBUSTION
AIR INDUCER
EVAPORATOR
COIL
BLOWER MOTOR
CONDENSER FANS
(6)
CONDENSER
COILS
HEAT
EXCHANGER TUBES
BLOWERS
CONDENSATE
DRAIN
FILTERS
(TWELVE - 20 X 20 X 2”)
ECONOMIZER
DAMPERS (OPTIONAL)
CONTROL BOX
115V GFCI OUTLET
(Factory-installed option)
DISCONNECT
(Factory-installed option)
