Page 35
507124-04 3/2016
70
80
90
100
110
120
110
120
130
140
150
160
170

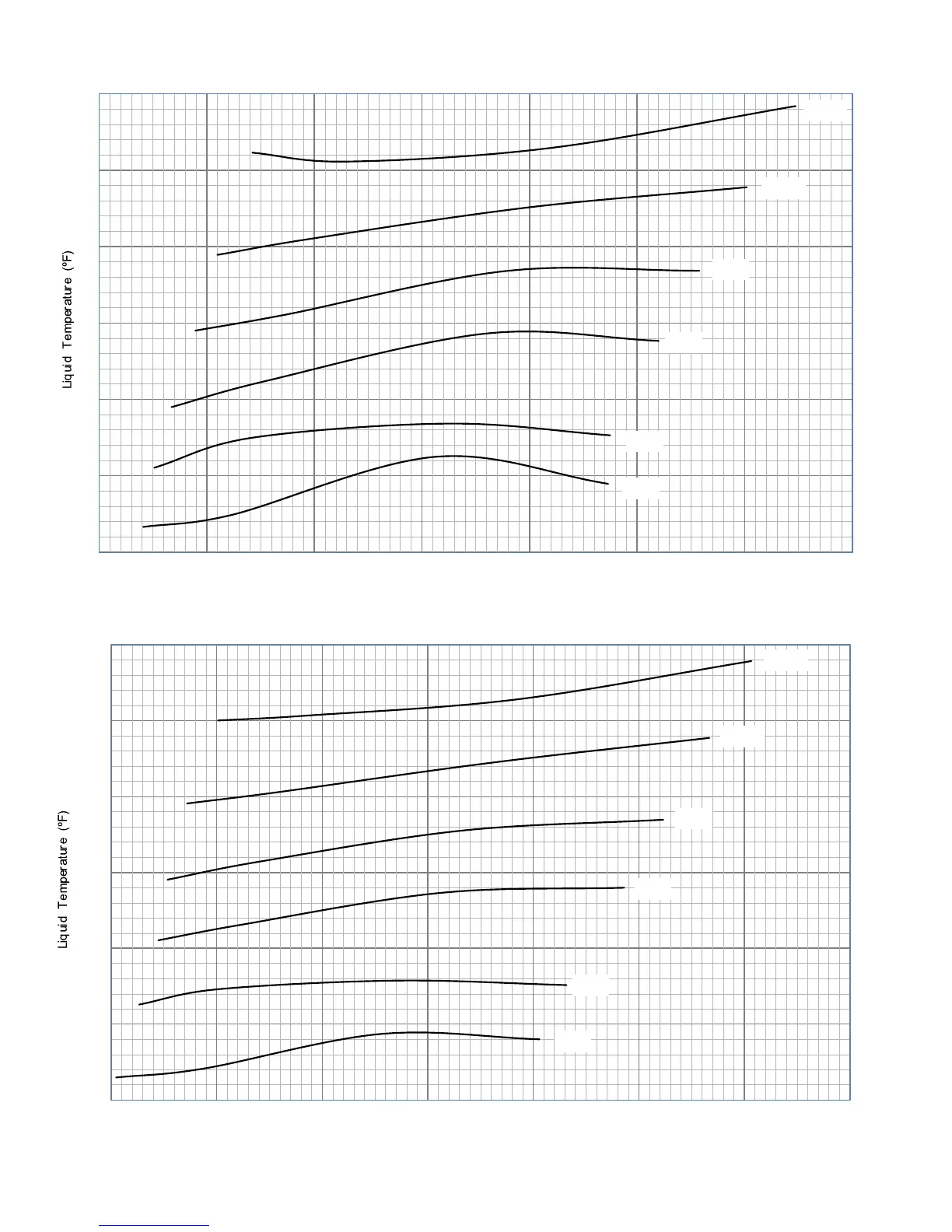

LGH/LCH300S CHARGING CURVE CIRCUIT 3
Suction Pressure (psig)
Outdoor Temperature (°F)
115°
105°
95°
85°
75°
65°
130
100
70
80
90
100
110
120
110
120
130
140
150
160
170
LGH/LCH300S CHARGING CURVE CIRCUIT 4
Suction Pressure (psig)
Outdoor Temperature (°F)
115°
105°
95°
85°
75°
65°
100
130
34
