57
Installation and Maintenance
Service Manual

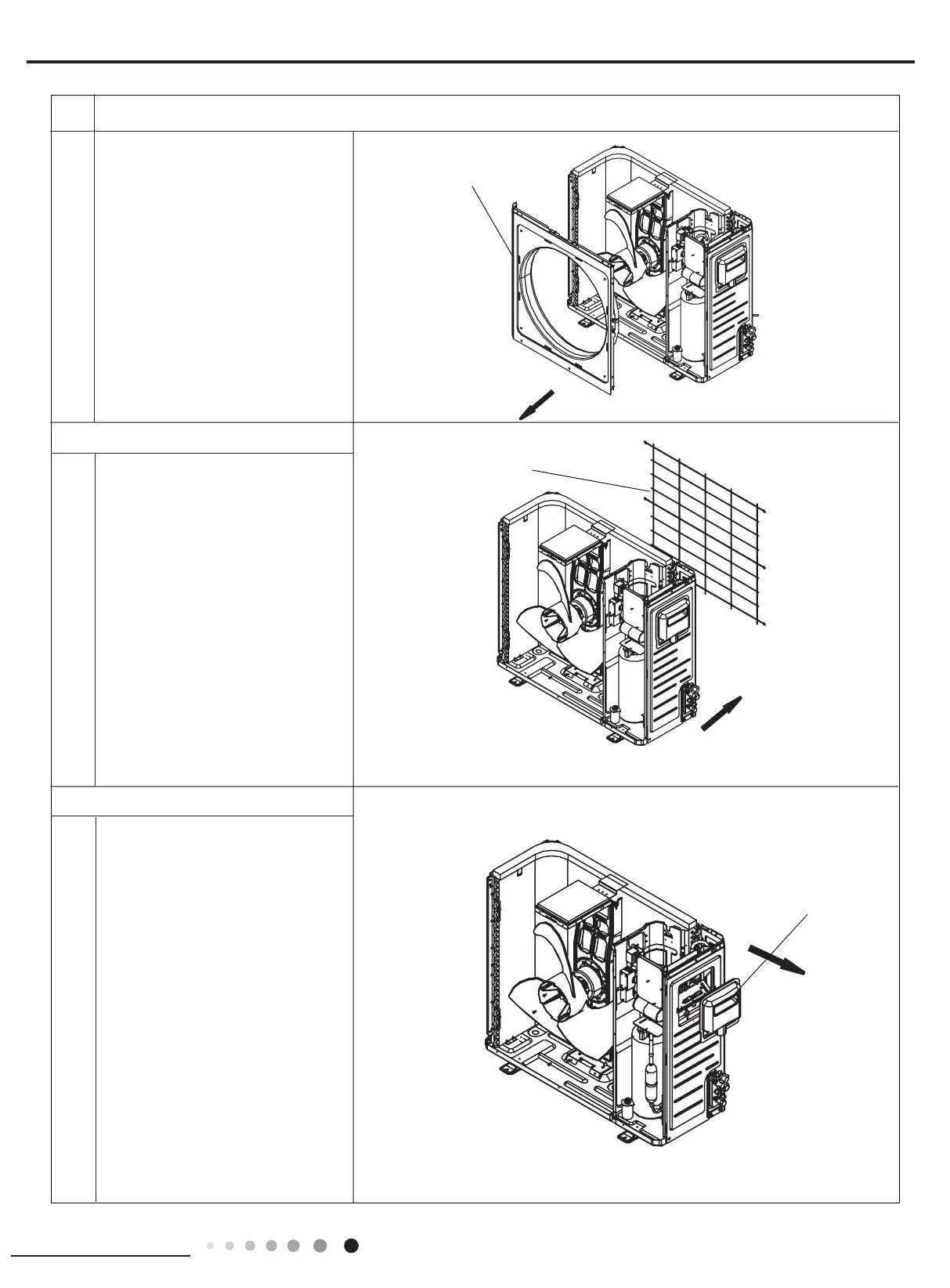

ProcedureSteps
b
Unscrew the screwsofpanel, chassis
and motor supportbyscrewdriver to
remove thepanel.
3. Remove rear grille
Disassemblethe screws fixing rear
grille andright&left sidepanel by
screwdriverto removethe rear grille .
4. Remove handle
Unscrew the screws fixing handle by
screwdriver to remove the handle.
handle
panel
rear grille
