58
Installation and Maintenance
Service Manual
ProcedureSteps

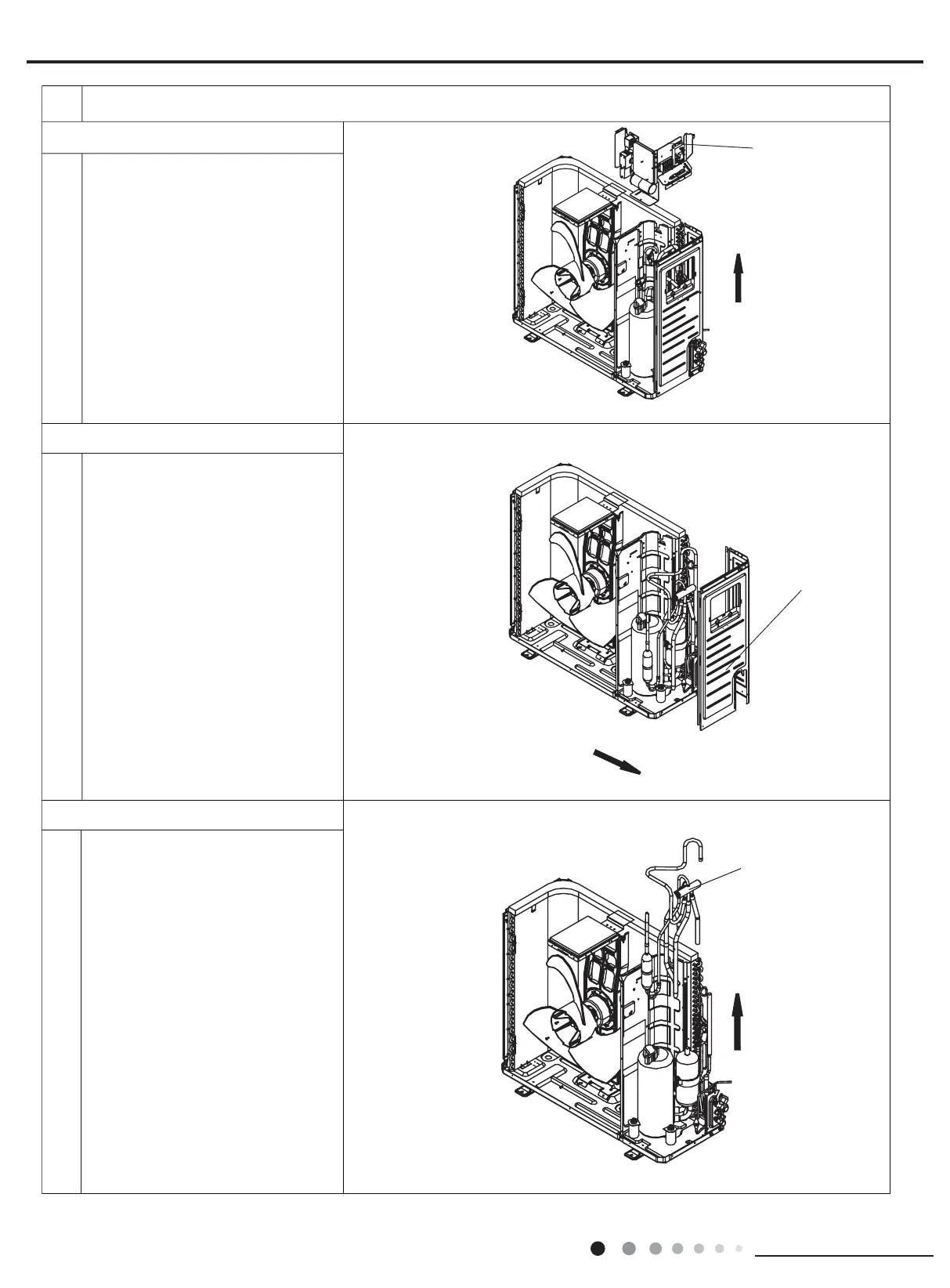

5. Remove electric box assy
Unscrew the connection screws of
electric boxassy and isolation sheet
by screwdriverto removethe electric
boxassy.
6. Remove right side plate assy
Unscrew the connection screws of
right side plate and chassis, valve
support and condenser assy to remove
the right side plate assy.
7. Remove 4-way valve assy
Unsolder the pipeline connect compressor,
condenser assy, gas valve and liquid valve
to remove the 4-way valve (Must discharge
the refrigerant first).
4-way valve assy
right side plate assy
electric box assy
