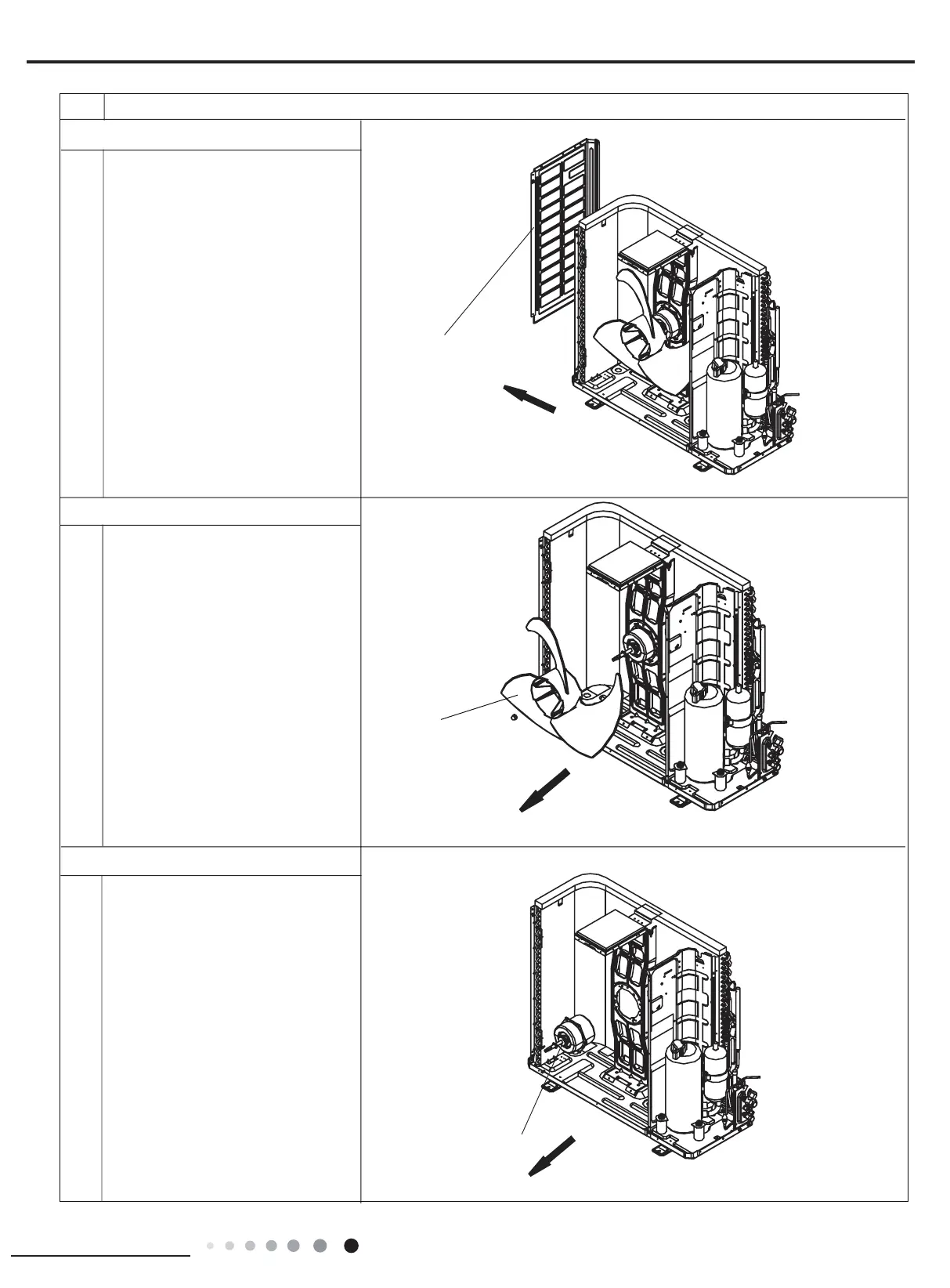

ProcedureSteps
8. Remove left side plate
Unscrew the connection screws of left
side plate and chassis by screwdriver to
remove the left sideplate.
9. Remove axial flow louver
Unscrew the nuts of louver by wrench
to removethe axial flow louver.
10. Remove motor
Unscrew the tapping screws fixing motor,
pull out the pin of leading wire to remove
the motor.
motor
axial flow louver
left side plate
