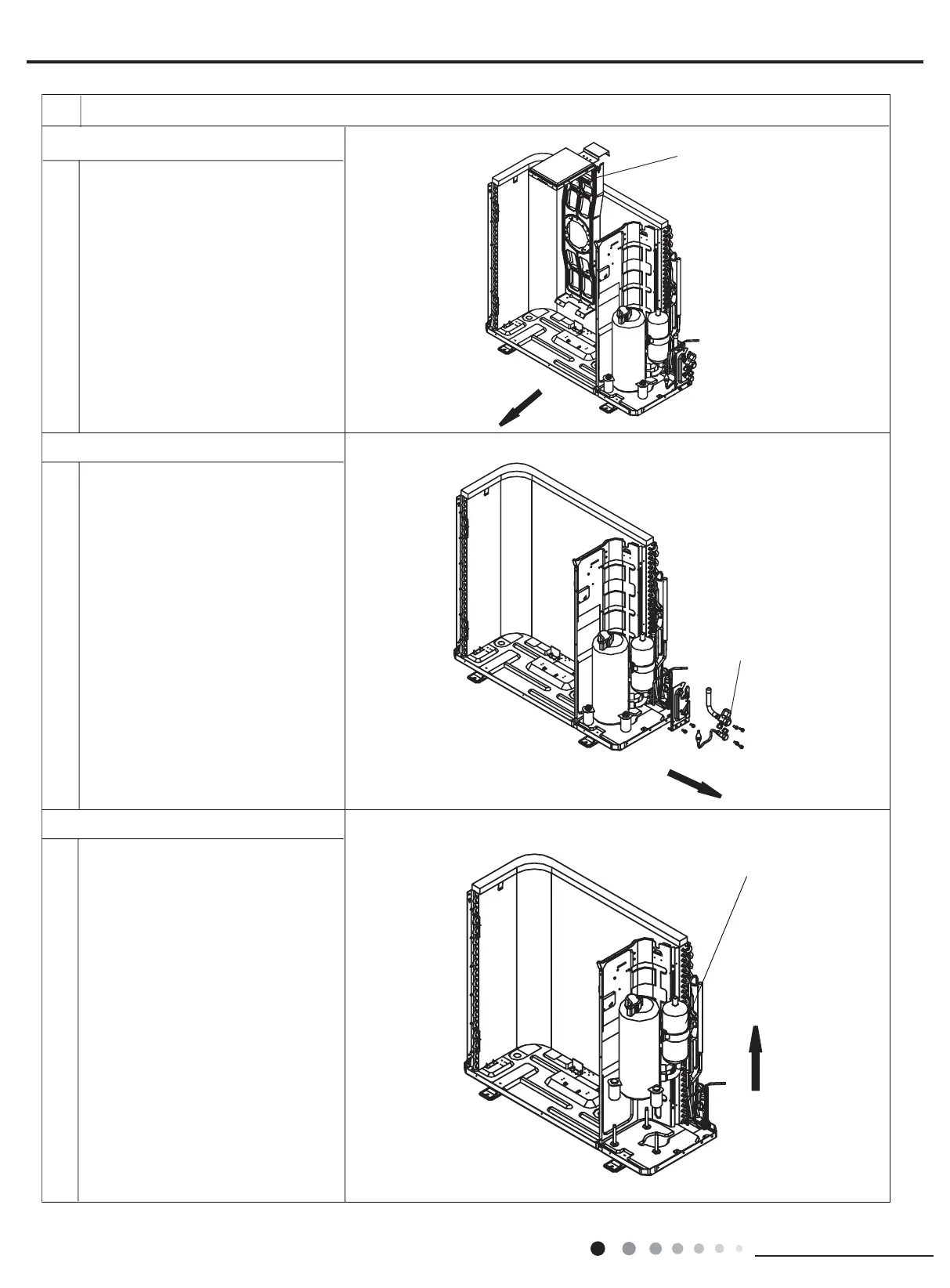

11. Remove motor support
Unscrew thetapping screw fixing motor
support, lift it upward to remove the
motor support.
12. Remove valve assy
Unscrew the2bolts fixing valveassy,
unsolder thespotweldofgas valveand
return-air pipetremovethe gas valve
(Note: Pleasewrapthe gas valve completely
by wet cloth to avoid high temperature
damage valvewhen unsoldering the spot
weld, and discharge the refrigerant).
Unsolder the spotweld of liquid valve and
connection pipe of liquid valve to remove
13. Remove compressor
Unscrew the 3 foot nuts of compressor
to remove the compressor.
compressor
valve assy
motor support
the liquid valve.
