61
Installation and Maintenance
Service Manual
Procedure
Steps

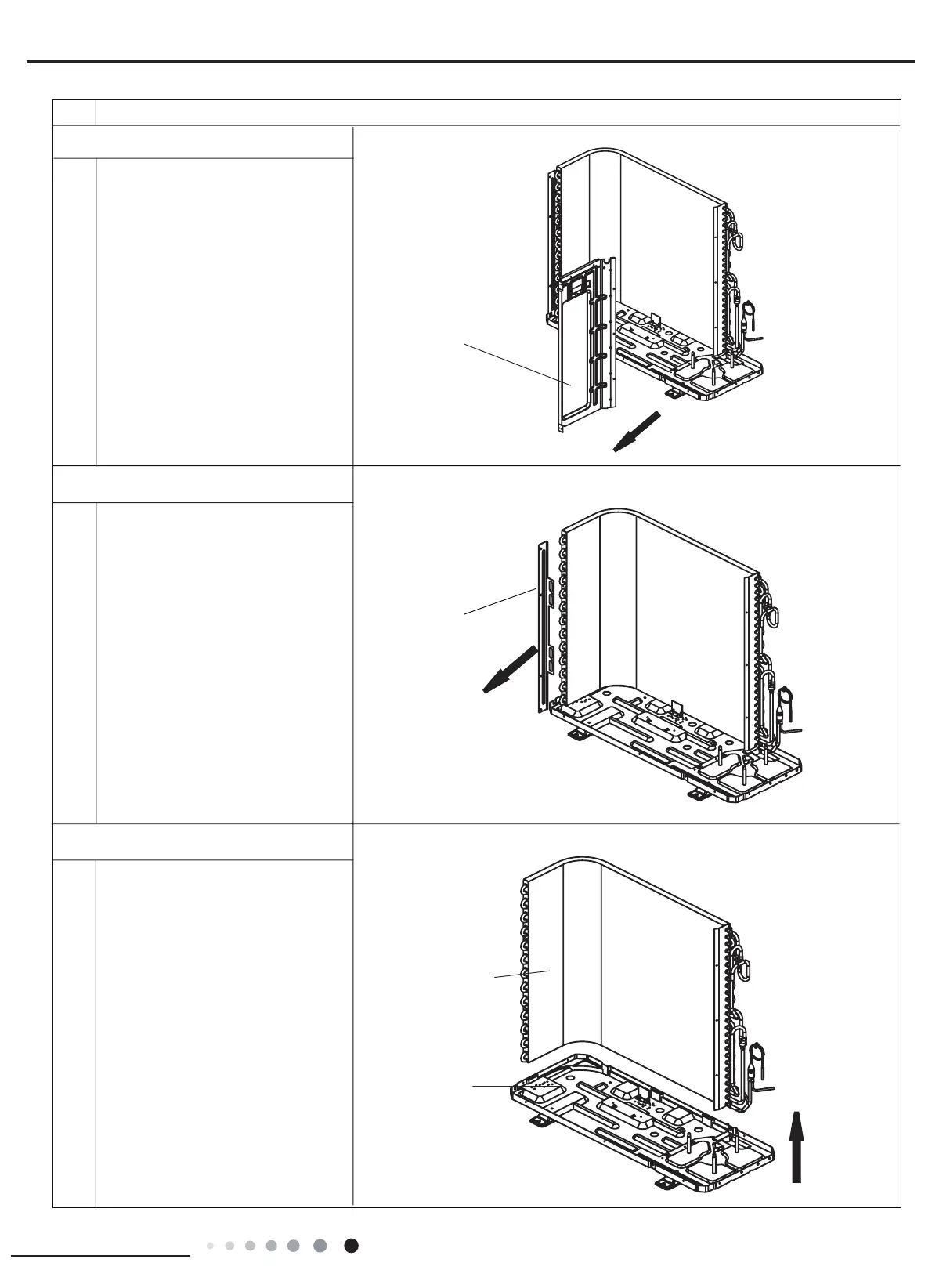

14. Remove isolation sheet assy
Unscrew the screws of isolation sheet,
side plateof condenser and chassis to
remove the isolationsheet.
15. Remove isolating support plate
(condenser)
Unscrew the screwsofisolating support
plate (condenser) and condenser assy
to remove the isolating support plate
(condenser).
16. Remove chassis assy and condenser
assembly
Lift it upward to remove to disassemble
chassis assy and condenser assembly.
chassis assy
condenser assembly
isolation sheet assy
support plate
