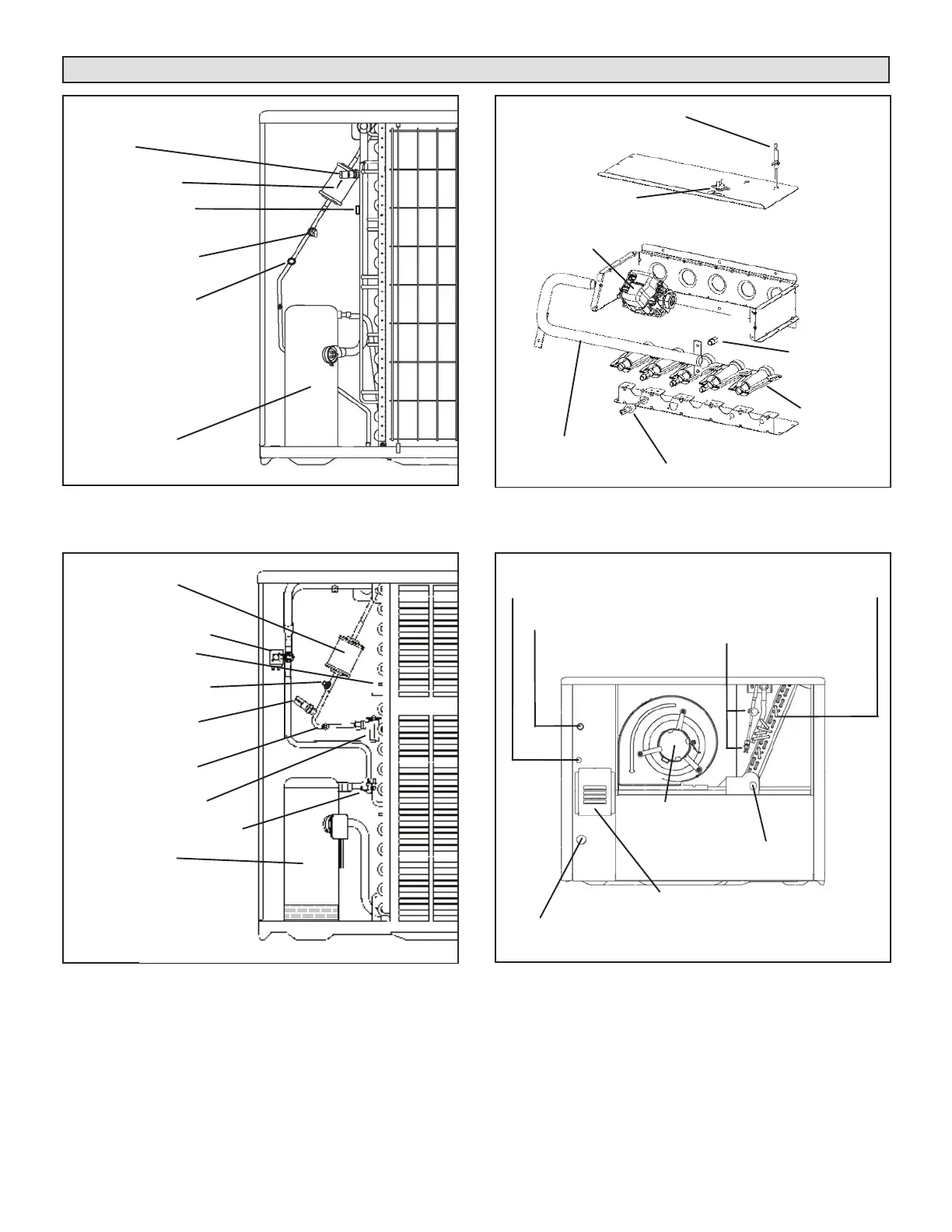

Parts Arrangement – Contd.
FILTER / DRIER
COMPRESSOR
LOW PRESSURE
SWITCH
HIGH PRESSURE
SWITCH
LOW PRESSURE
GAUGE PORT
HIGH PRESSURE
GAUGE PORT
FIGURE 3. Compressor Compartment –
AC, GE and GN Units
FLAME SENSOR
BURNERS
IGNITER
ORIFICE
FLAME ROLLOUT
SWITCH
GAS VALVE
GAS MANIFOLD
FIGURE 5. Burner Box Components –
GE Units
FILTER / DRIER
HIGH PRESSURE
SWITCH
COMPRESSOR
EXPANSION VALVE
REVERSING VALVE
HIGH PRESSURE
GAUGE PORTS
DEFROST THERMOSTAT
LOSS OF CHARGE
SWITCH
LOW PRESSURE
GAUGE PORT
FIGURE 4. Compressor Compartment –
HP Units
VENT HOOD (GE/GN ONLY)
BLOWER
MOTOR
EVAPORATOR
COIL
METERING DEVICE
(TXV or RFC)
CONDENSATE DRAIN
CONNECTION
LOW VOLTAGE
CONNECTION OPENING
LINE VOLTAGE
GAS PIPE OPENING
(GE/GN ONLY)
FIGURE 6. Blower Compartment
