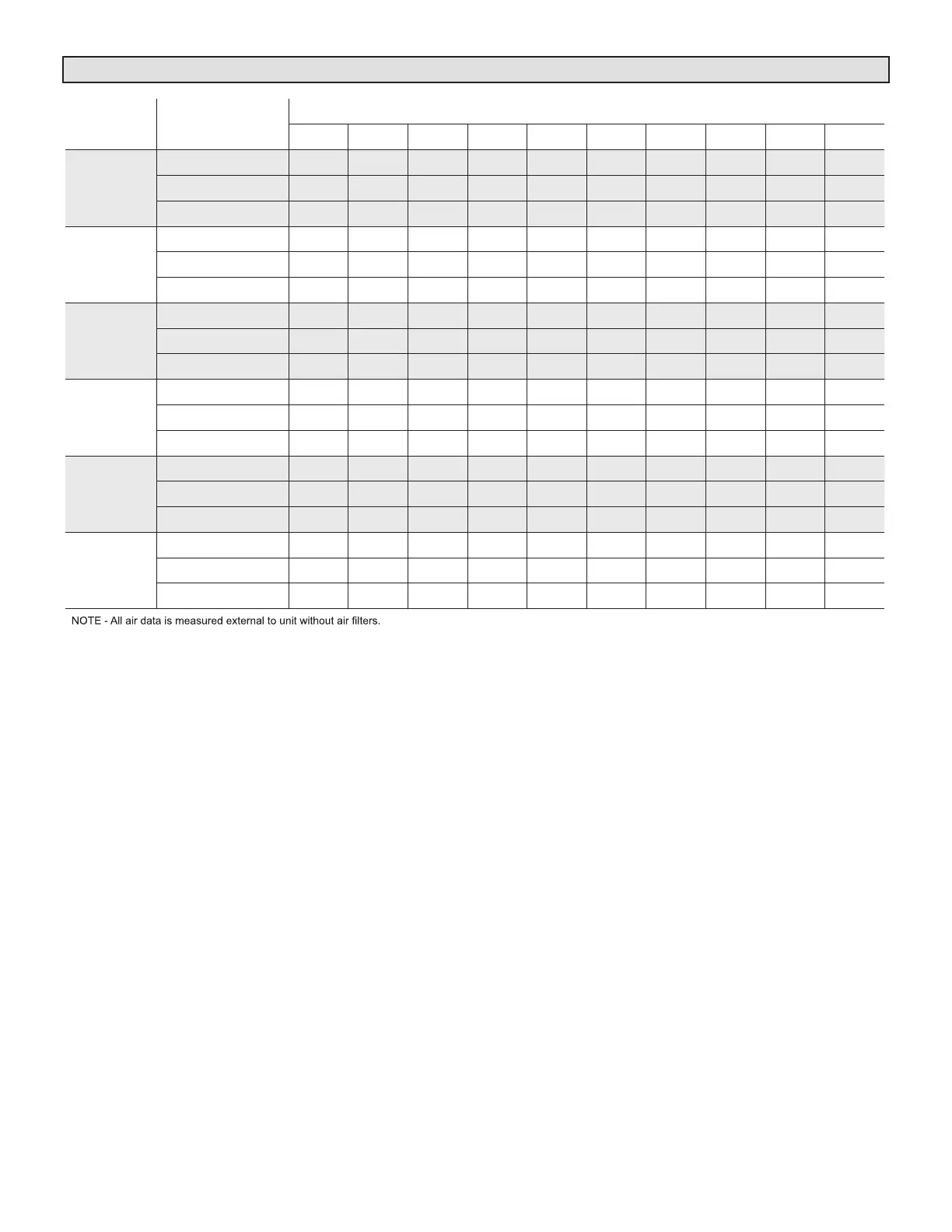

Page 25
Blower Data – LRP14GE / LRP14GX
Model
No.
Blower Tap
Air Volume (cfm) at Various External Static Pressures - in. w.g.
0.1 0.2 0.3 0.40.5 0.60.7 0.80.9 1.0
LRP14GE24
LRP14GX24
Tap 1 (Fan Only) 610 560 525 485430 - - -- - -- - -- - -- - -
Tap 2 (Low Cooling) 820 795 760 720690 650615 575540 470
Tap 3 (High Cooling) 950 920 880 850820 800760 720680 625
LRP14GE30
LRP14GX30
Tap 1 (Fan Only) 850 820 780 745710 680630 590550 515
Tap 2 (Low Cooling) 1040 1000 970 935900 875845 815770 735
Tap 3 (High Cooling) 1175 1145 11151080 1050 1015 990945 900860
LRP14GE36
LRP14GX36
Tap 1 (Fan Only) 850 800 750 700645 600550 480435 - - -
Tap 2 (Low Cooling) 1245 1210 1175 1140 1100 1065 1025 975920 845
Tap 3 (High Cooling) 1400 1370 1335 1300 1265 1220 1180 1150 1060 875
LRP14GE42
LRP14GX42
Tap 1 (Fan Only) 800 720 640 550475 390310 - - -- - -- - -
Tap 2 (Low Cooling) 1470 1410 1360 1300 1260 1210 1155 1095 1000 940
Tap 3 (High Cooling) 1700 1650 1610 1575 1540 1480 1430 1390 1340 1210
LRP14GE48
LRP14GX48
Tap 1 (Fan Only) 1145 1075 1000 930850 790740 670570 490
Tap 2 (Low Cooling) 1675 1630 1600 1540 1490 1440 1390 1300 1230 1125
Tap 3 (High Cooling) 1800 1770 1715 1690 1640 1610 1565 1500 1460 1380
LRP14GE60
LRP14GX60
Tap 1 (Fan Only) 1400 1320 1260 1200 1120 1060 980900 - - -- - -
Tap 2 (Low Cooling) 1920 1870 1820 1770 1720 1670 1450 1360 - - -- - -
Tap 3 (High Cooling) 2235 2195 2165 2130 2090 2060 2025 1985 1960 1940
