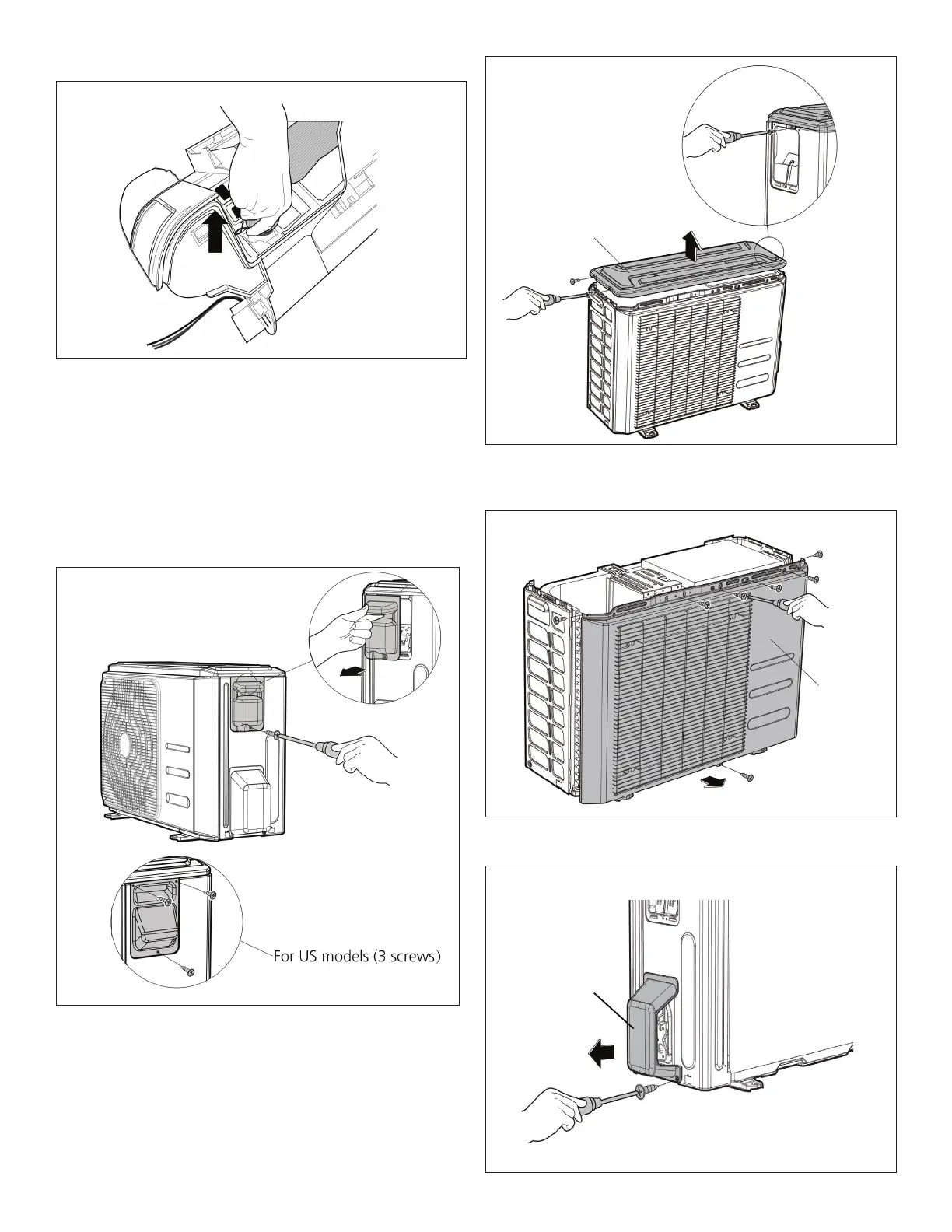

Step 2. Pullupthedrainhosetoremoveit.
18.2. Outdoor Unit
18.2.1. Panel Plate (MWCA009S4, MWCA012S4 and
MWCA018S4)
Step 1. Turnofftheairconditionerandthepower
breaker.
Step 2. Removethescrewofthebighandleandthen
removethehandle.
Step 3. Removethescrewsofthetopcoverandthen
removetopcover.Oneofthescrewsislocated
underneaththebighandle.
Top Cover
Step 4. Removethescrewsofthefrontpanelandthen
removethefrontpanel.
Front Panel
Step 5. Removethescrewfromthewatercollectorcover.
Water Collection Cover
