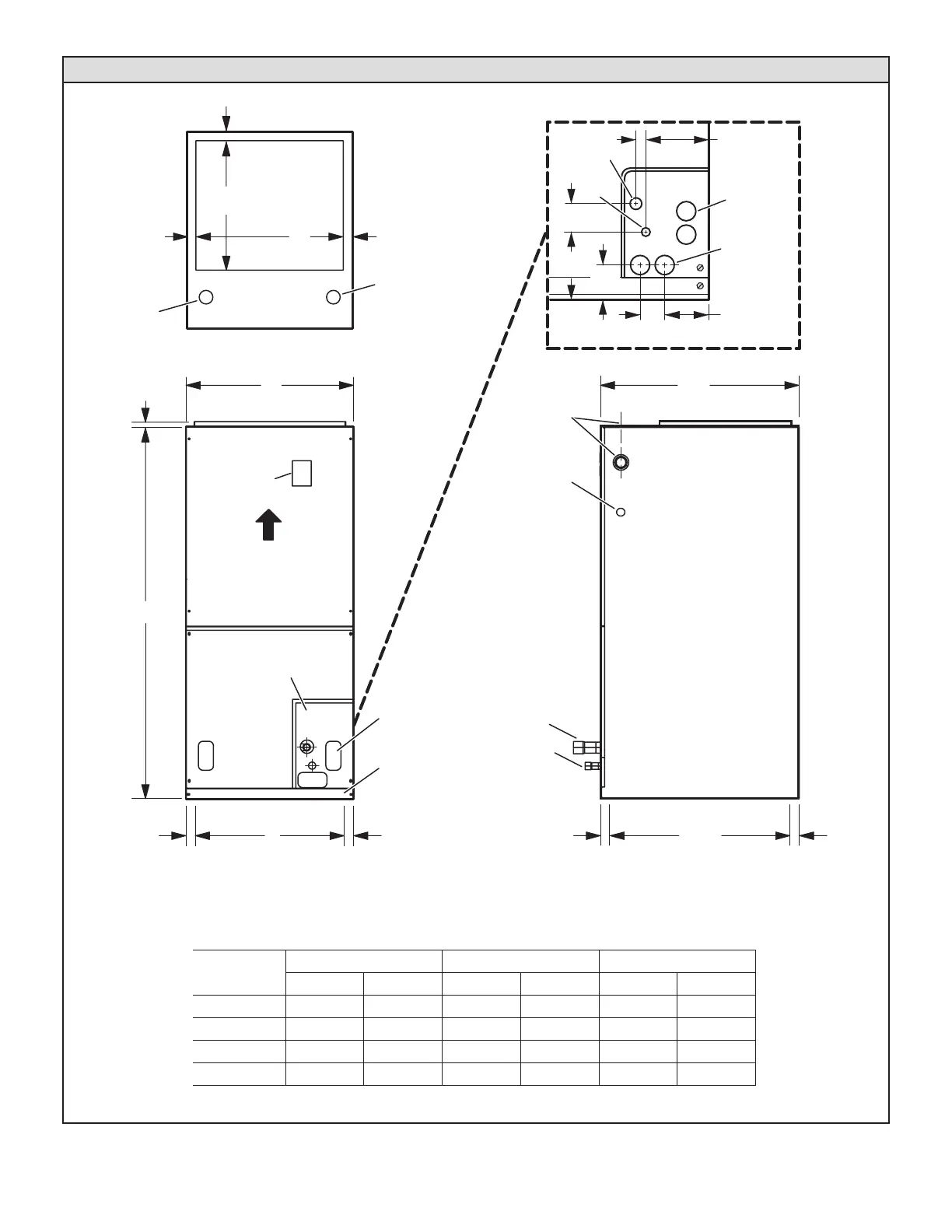

Unit Dimensions – Upow Position
A
B
FRONT VIEW SIDE VIEW
LINE VOLTAGE
INLETS
(Top and Right Side)
LOW VOLTAGE
INLETS
(Either Side)
SUCTION
LINE
LIQUID
LINE
FILTER
ACCESS
3/4
(19)
AIR FLOW
CIRCUIT
BREAKER
COVER
D
1-1/8
(29)
1/2
(13)
C
LINE VOLTAGE
INLETS
(Top and Left Side)
LOW VOLTAGE
INLETS
(Top and Right Side)
1 (25)
SUPPLY AIR
OPENING
TOP VIEW
OPENING
OPENING
1 (25)
1 (25)
1-1/8
(29)
1-1/8
(29)
20-3/8
(518)
22
(559)
14-1/2
(368)
DETAIL OF PIPING PLATE
LIQUID
LINE
CONDENSATE
DRAINS (2)
(Horizontal)
1-3/4
(44)
3/4 (19)
2-3/4
(70)
3-1/2
(89)
PIPING
PLATE
4-3/4
(121)
4-3/8
(111)
2-3/8
(60)
CONDENSATE
DRAINS (2)
(Upflow and
Downflow)
SUCTION
LINE
CONDENSATE DRAIN
PIPING PLATE (3)
(2-1/4 x 3-3/4)
Dimensions
024 030036, 042
in. mm in. mm in.mm
A 45-1/2 1156 47 1194 53-5/8 1362
B 18-1/2 470 18-1/2 47021-1/2546
C 16-1/2 419 16-1/2 41919-1/2495
D 16-1/4 413 16-1/4 41319-1/4489
