37
LENNOX HEARTH PRODUCTS • MERIT PLUS
®
DIRECT VENT GAS FIREPLACES (MPDP35/40) • INSTALLATION INSTRUCTIONS
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

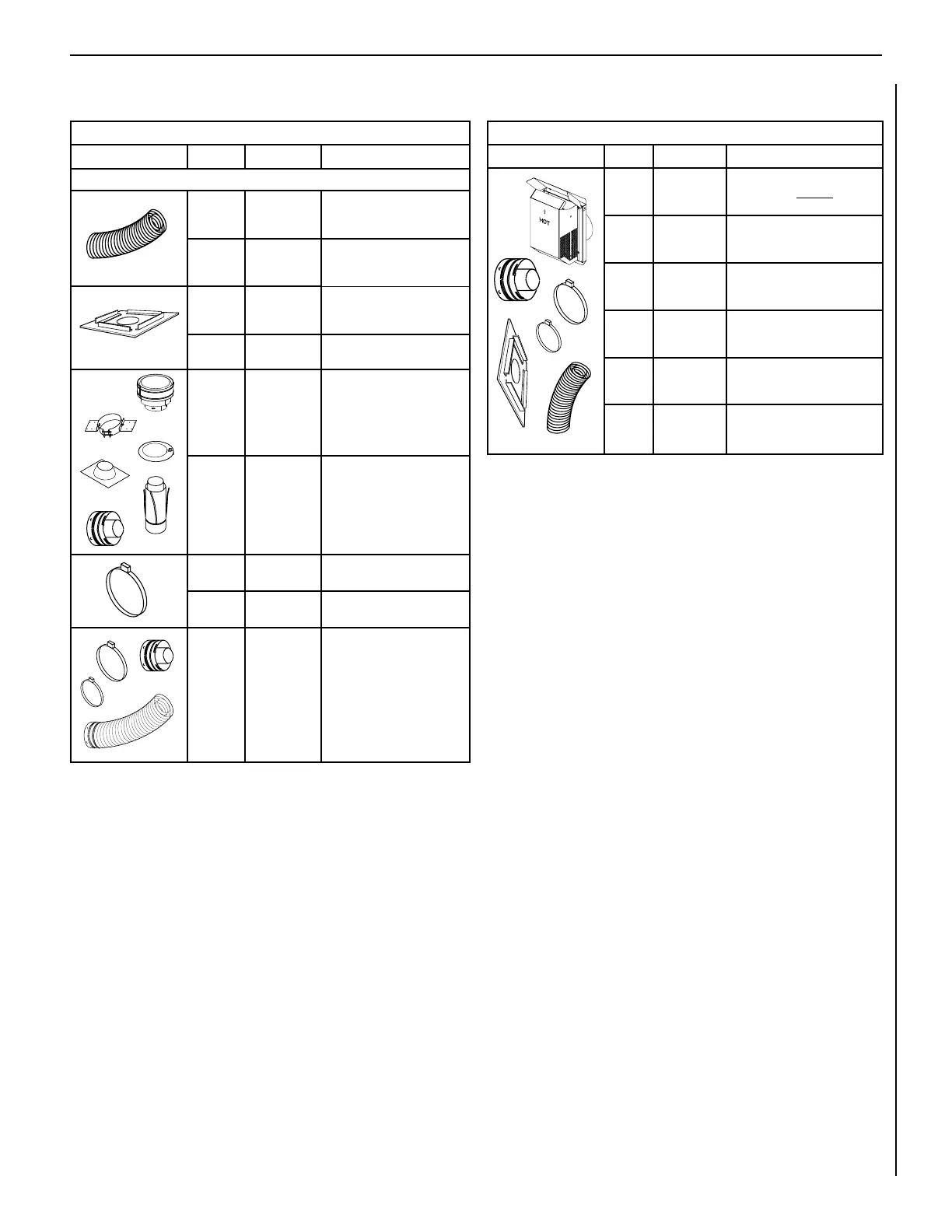

Listed Secure Flex Components
Cat. # Model Description
H1969 SF4.5HT-2 Horizontal Square Termina-
tion for flex (without flex
vent)
77L87 SFKIT12S Square Term. for flex
(with 12 inch [305 mm]
compressed flex vent**)
77L88 SFKIT18S Square Term. for flex
(with 18 inch [457 mm]
compressed flex vent**)
77L89 SFKIT24S Square Term. for flex
(with 24 inch [610 mm]
compressed flex vent**)
77L90 SFKIT36S Square Term. for flex
(with 36 inch [914 mm]
compressed flex vent**)
77L91 SFKIT48S Square Term. for flex
(with 48 inch [1219 mm]
compressed flex vent**)
INSTALLATION ACCESSORIES CONTINUED
**All compressed flex vents can be expanded up to two times.
Listed Secure Flex
®
Components
Cat. # Model Description
These termination kits include firestop/spacer, gear clamps and flex adaptor.
60L10 SF-18 18 feet (5.49 m) *
compressed flex
(Ref. Instr. #750053M)
98K03 SF-12 12 feet (3.66 m)*
compressed flex
(Ref. Instr. #750052M)
H2248 SF4.5HF-10 Firestop / Spacer -
Horizontal, flex (3-1-1
spacing), 10 Pack
H2249 SF4.5VF-10 Firestop/Spacer-Vertical,
flex (1-1-1 spacing), 10 Pk
56L74 SFVT30 Vertical Termination for flex
(flat to 6/12) with flex adaptor,
section of rigid vent, roof
support collar assembly, roof
flashing and storm collar.
(Ref. Instr. #750052M)
56L75 SFVT45 Vertical Termination for flex
(6/12 to 12/12) with flex
adaptor, section of rigid
vent, roof support collar
assembly, roof flashing,
and storm collar.
(Ref. Instr. #750052M)
91L66 SFGC4-6 Gear Clamp 4.5 in. (114 mm)
for flex (6 pack)
91L67 SFGC7-6 Gear Clamp 7.5 in. (190.5
mm) for flex (6 pack)
H7748 H7748 36" Flex Connector
Kit. 36" of flex with two
adaptors for mating two
rigid sections of vent
together.
To Next Page
