6.3. Single-Zone Outdoor Unit Dimensions
E
D
B
TYPICAL APPEARANCE OF UNITS
A
C

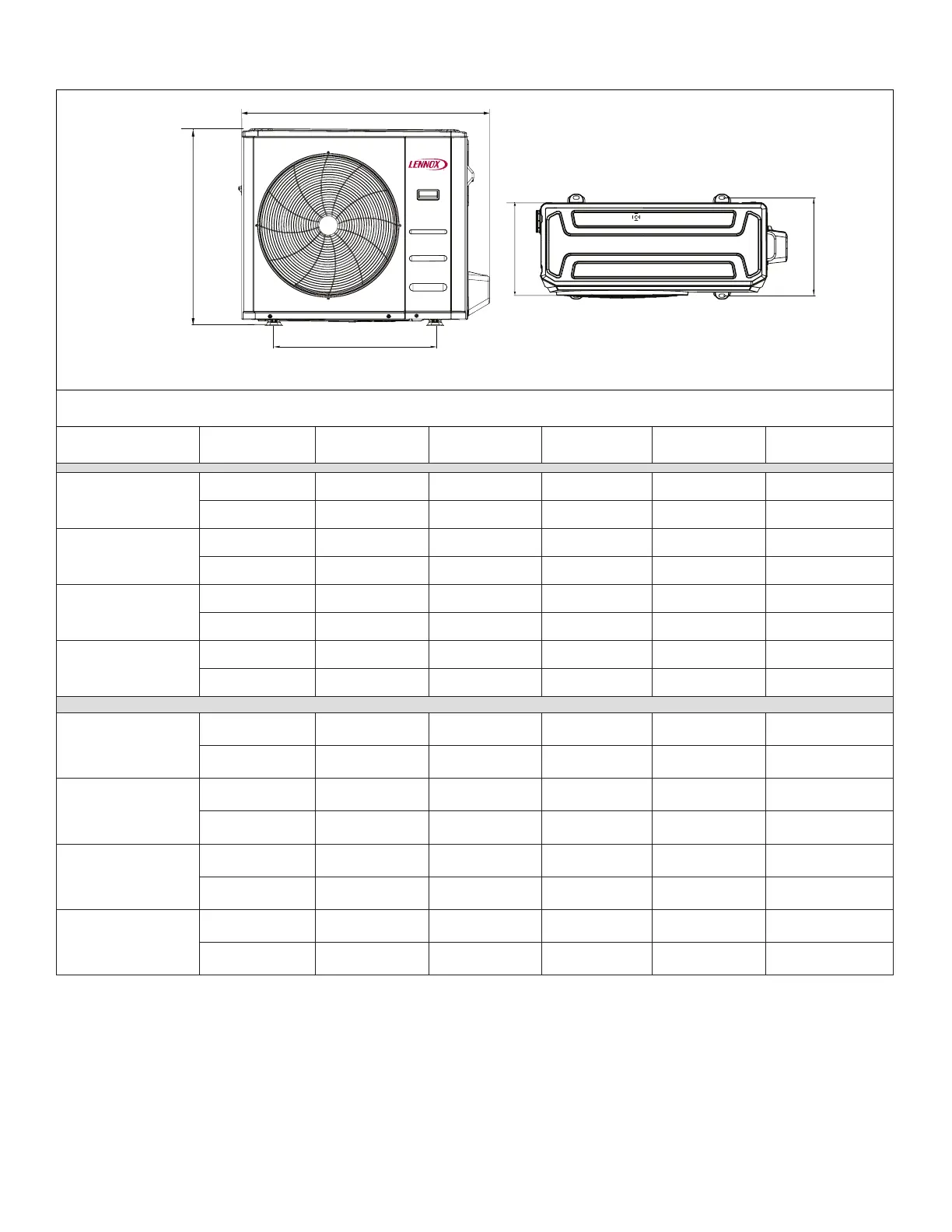

Figure 17. Single Zone Outdoor Unit Dimensions - Inches (mm)
Model
Unit of
Measurement
A B C D E
MPC018S4S-*P
inches 37-5/8 26-1/8 26-1/2 12-3/4 15
mm 955 664 673 324 381
MPC024S4S-*P
MPC036S4S-*P
inches 37-1/4 26-1/2 37-7/8 15-7/8 18
mm 946 673 810 403 457
MPC048S4S-*P
inches 41-1/8 27-7/8 55-1/2 16-3/8 15-7/8
mm 1045 708 1410 416 448
MPC060S4S-*P
inches 37-1/2 26 52-1/2 16-3/10 18-3/5
mm 952 660 1334 414 472
MLB018S4S-*P
inches 40-3/4 26-1/2 31-7/8 16-1/8 15-7/8
mm 1035 673 810 410 402
MLB024S4S-*P
inches 40-1/2 26-1/2 31-7/8 16-1/8 15-7/8
mm 1029 673 810 410 410
MLB036S4S-P
inches 41-1/8 37-1/2 55-1/2 16-3/8 15-7/8
mm 1045 953 1333 416 403
MLB048S4S-P
inches 41-1/8 37-1/2 55-1/2 16-3/8 15-7/8
mm 1045 953 1333 416 403
