NOTE - Maximum Line Set
Length Includes ALL
piping in measurement
OUTDOOR UNIT
INDOOR UNIT
INDOOR UNIT
INDOOR UNIT
INDOOR UNIT
INDOOR UNIT
NOTE - Maximum Difference
in Elevation Between
Indoor Units - 33 ft. (10 m).
Maximum Line Set
Furthest Indoor Unit
Maximum
Elevation -
Outdoor Unit
BELOW
Indoor Units
Maximum
Elevation -
Outdoor Unit
ABOVE Indoor Unit
49 ft.
(15 m)
49 ft.
(15 m)
NOTE - Minimum Line Set
Length - 10 ft. (3 m) per
Indoor Unit

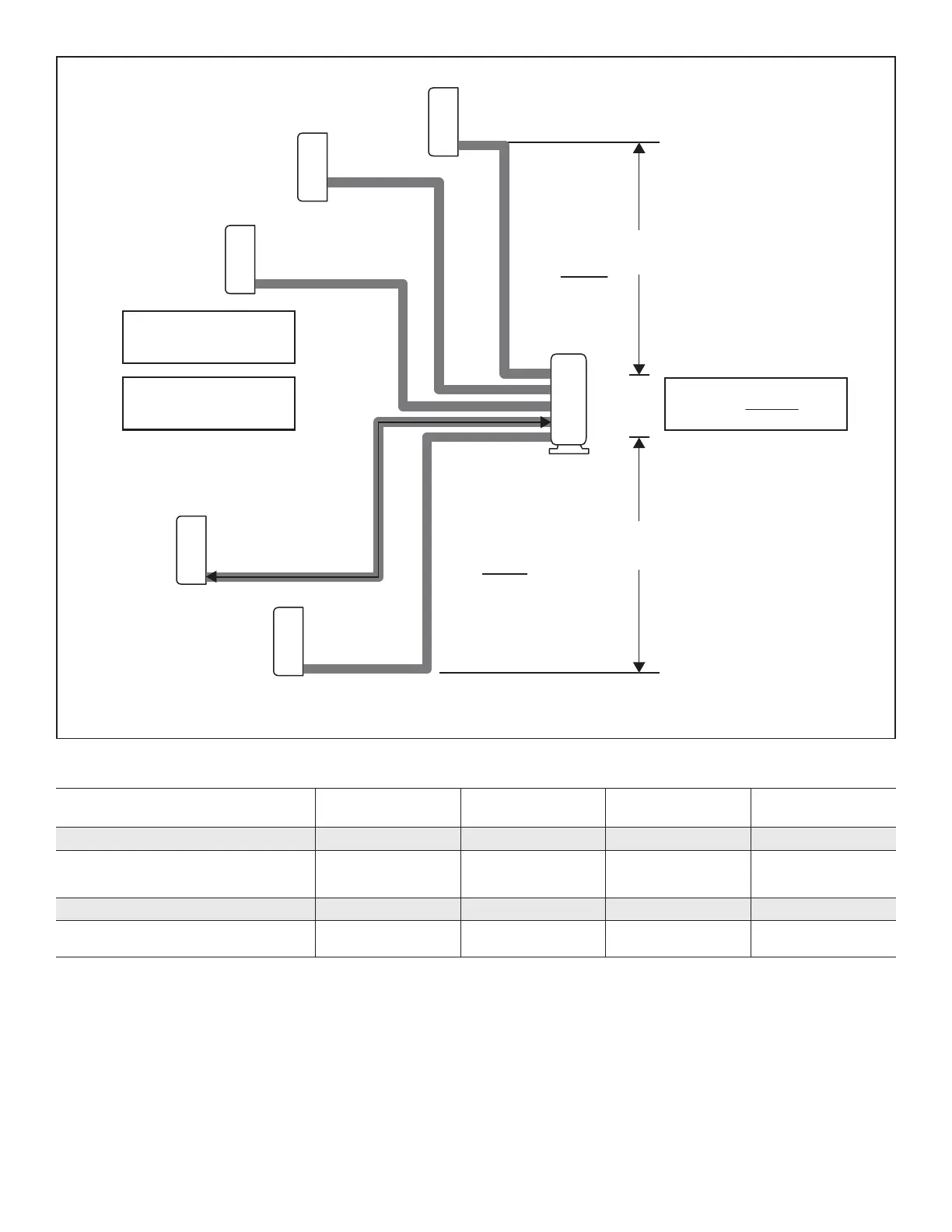

Figure 20. MPC and MLB Line Set Elevations
Outdoor Unit Model No. MPC024S4M
MLB030S4M /
MPC030S4M
MLB036S4M /
MPC036S4M
MLB048S4M /
MPC048S4M
Maximum Number of Indoor Units/Zones Three Three Four Five
Indoor Unit Connections
(3) 1/4 liq.
(3) 3/8 gas
(3) 1/4 liq.
(3) 3/8 gas
(4) 1/4 liq.
(3) 3/8 gas
(1) 1/2 gas
(5) 1/4 liq.
(3) 3/8 gas
(2) 1/2 gas
Maximum Pipe Length for all Rooms 197 ft. (60 m) 197 ft. (60 m) 262 ft. (80 m) 262 ft. (80 m)
Maximum Line Set Length - Furthest
Indoor Unit
98 ft. (30 m) 98 ft. (30 m) 115 ft. (35 m) 115 ft. (35 m)
NOTE: Refer to for correct refrigerant line adapters furnished with outdoor units.
