Lennox Mini-Split Service Manual / Page 45

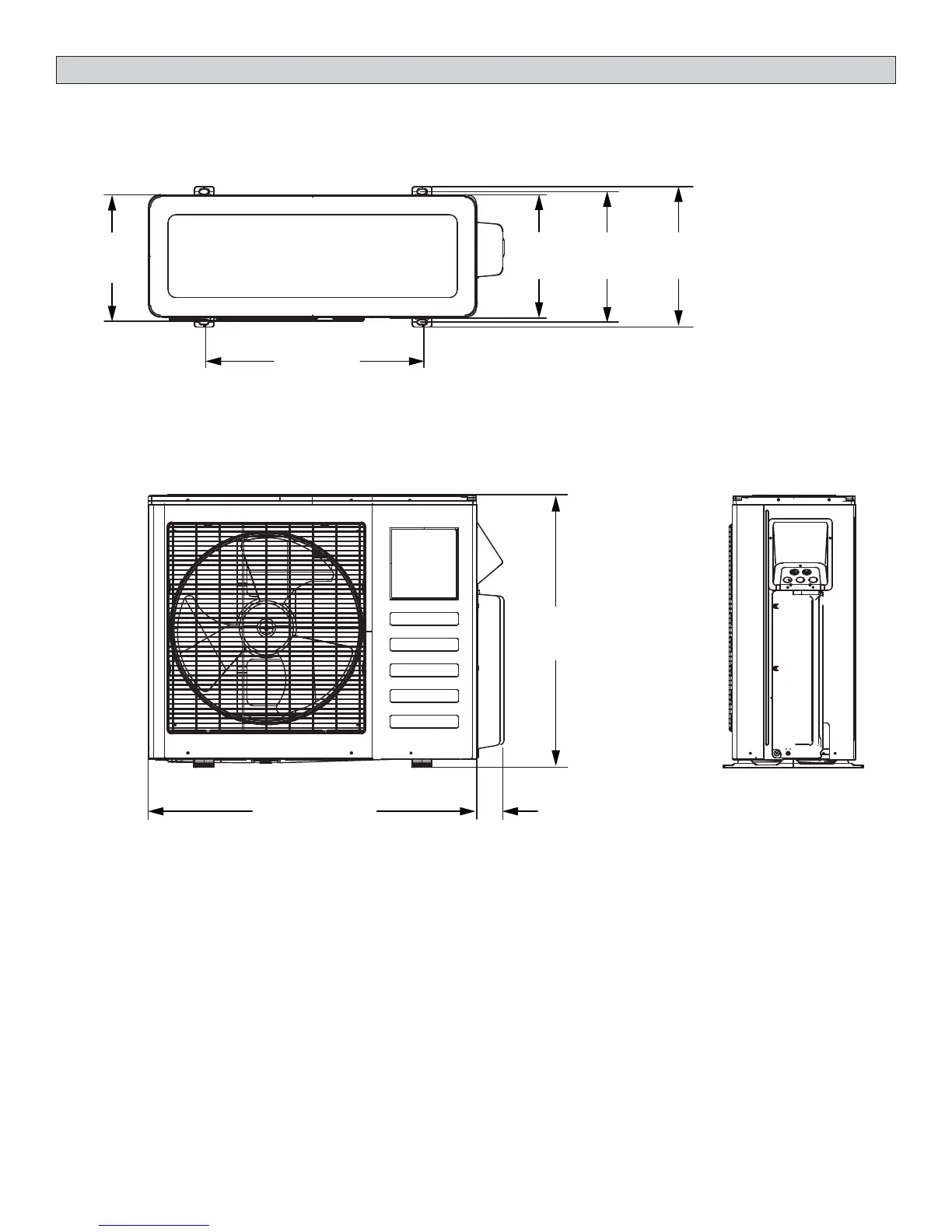

MPA018S4M Dimensions

TOP VIEW

FRONT VIEW SIDE VIEW

MPA018S4M

12-1/4

(312)

27-3/8

(695)

13-1/8

(333)

14-1/8

(359)

12-3/4

(324)

22 (559)

33-1/8 (841) 2-3/4 (70)
