Lennox MPA009S4S-1P - MPA048 S4 M Dimensions

Lennox Mini-Split Service Manual / Page 47

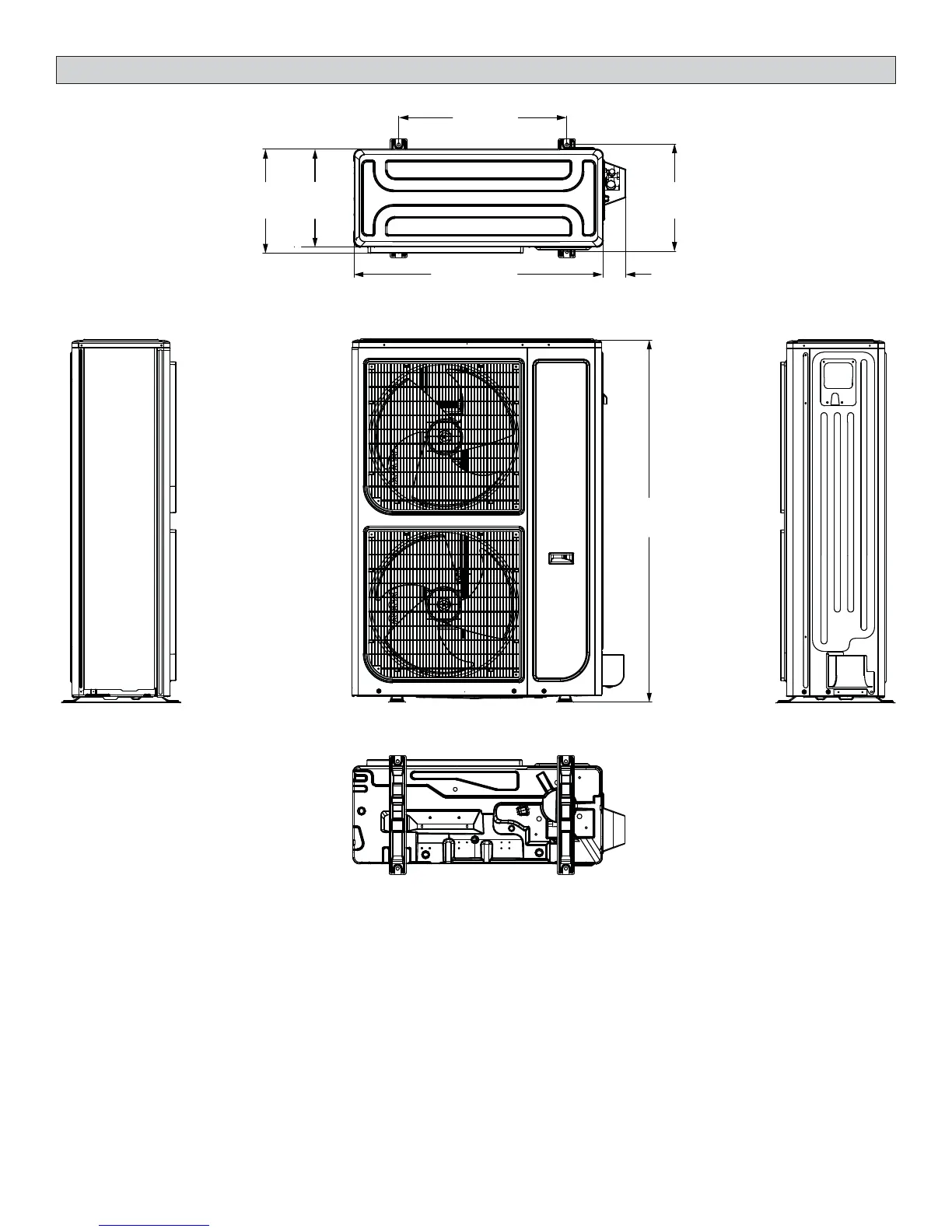

MPA048S4M Dimensions
TOP VIEW
BOTTOM VIEW
FRONT VIEW
SIDE VIEW
SIDE VIEW
53-3/4
(1365)
25 (635)
15-3/8
(391)
14-1/2
(369)
16
(406)
3-3/8
(86)
36-7/8 (937)
