24. Indoor Unit Indicators and Controls
Foralistofapplicableerrorcodesfortheindoorunits,referto“20.QuickReferenceGuide-ErrorCodes”onpage95.All
indoorunitsprovideerrorcodeinformationwitheitheradigitalLEDdisplayorwithashcodes.
24.1. Cassette Unit Display
OPERATION
TIMER
DEF./FAN
ALARM
Temporary button
Operation lamp
Timer indicator
Infrared signal receiver
Alarm indicator
PRE-DEF indicator(cooling and heating type)
or fan only indicator(cooling only type)
MANUAL
Display digital tube

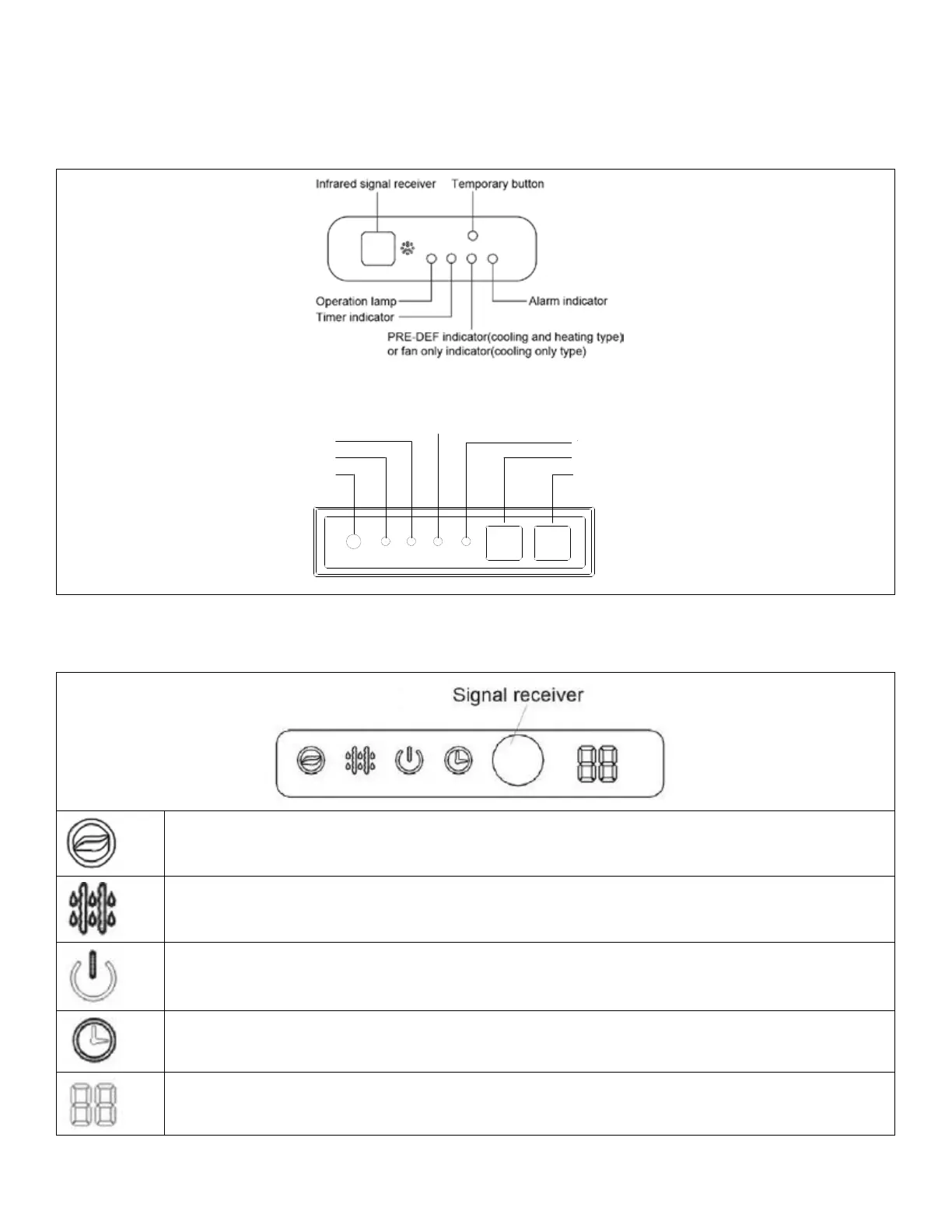

Figure 71. Cassette Unit Display
24.2. Ducted Unit Display
IONindicationlamp(optionalfunction):Thislampilluminateswhencleanairfeatureisactivated.
DefrostIndicationLamp(forcoolingandheatingmodelsonly):Lightsupwhentheairconditionerstartsdefrostingautomaticallyor
whenthewarmaircontrolsfeatureisactivatedinheatingoperation.
OperationIndicationLamp:Thislampilluminateswhentheairconditionerisinoperation.
TimerIndicationLamp:Lightsupduringtimeroperation.
TemperatureIndicator:Displaysthetemperaturesettingswhentheairconditionerisoperational.Alsodisplayserrorcodes.
Figure 72. Ducted Unit Display
