2. M22A, M33A and M33B Cassette Non-Ducted Indoor Units

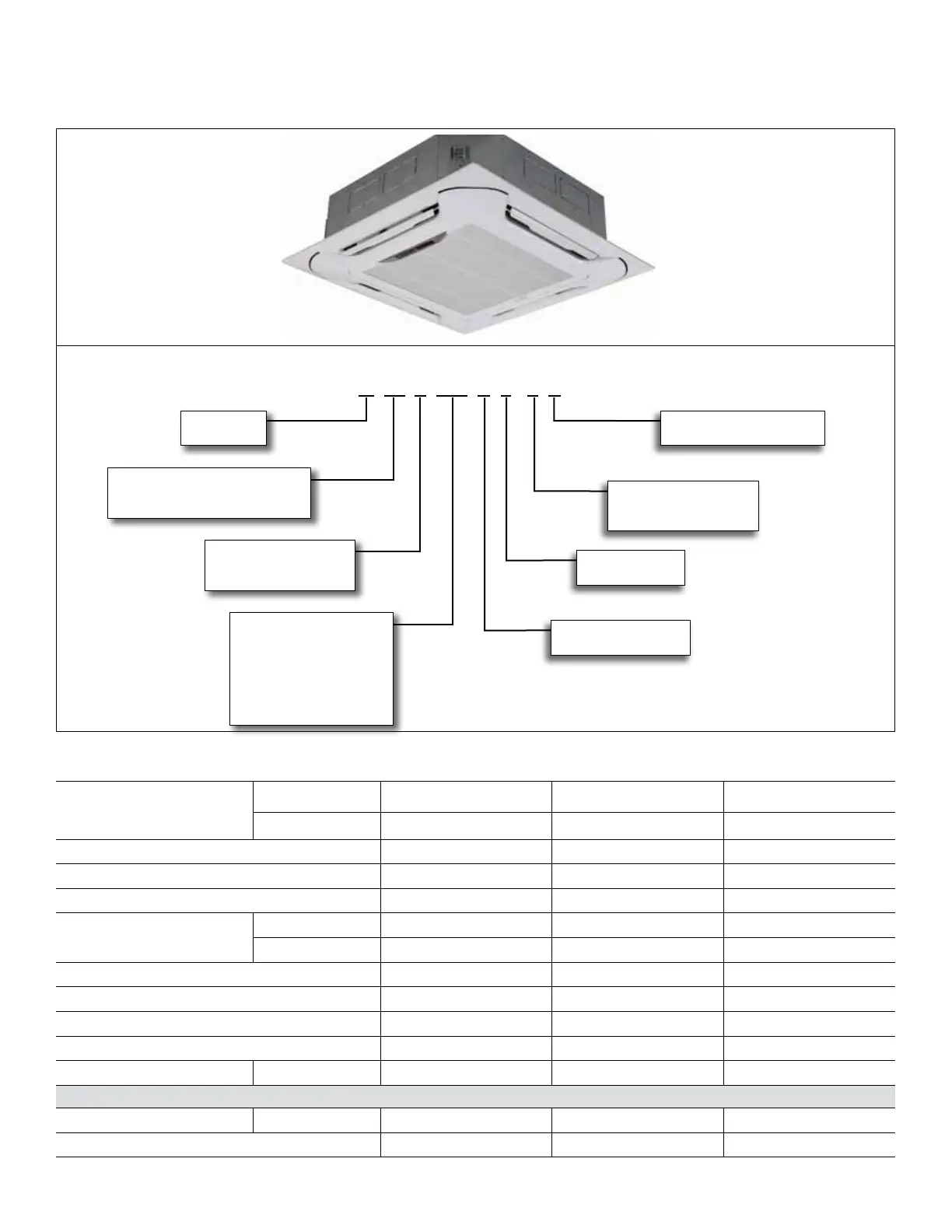

2.1. ModelNumberIdentication
M 22 A 012 S 4 - 1 P
Unit Type
22=2x2CassetteNon-DuctedUnit
33=3x3CassetteNon-DuctedUnit
Series Type
M = Mini-Split
Voltage
P=208/230V-1phase-60hz
CASSETTE NON-DUCTED INDOOR UNITS
CoolingEfciency
S=StandardEfciency
Major Design Sequence
A=1stGeneration
B=2ndGeneration
Nominal Cooling Capacity
009 = .75 tons
012 = 1 tons
018 = 1.5 tons
024=2tons
036 = 3 tons
048=4tons
Refrigerant Type
4=R-410A
Minor Design Sequence
1=1stRevision
2=2ndRevision
2.2. M22AIndoorUnitSpecications
Model No. M22A009S4-*P M22A012S4-*P M22A018S4-*P
NominalTons 0.75 1 1.5
PowerSupply-60hz-1phase 208/230V 208/230V 208/230V
Ratedloadamps 0.9 1.0 1.5
Output(W) 46 46 46
RoomTemperature
Range(°F)
Cooling 62 - 90 62 - 90 62 - 90
Heating 32 - 86 32 - 86 32 - 86
AirVolume-cfm(High/Medium/Low) 375/300/255 380/310/260 560/485/415
SoundData(dBA)-Low/Medium/High 33/37/41 36/39/43 36/39/44
PipingConnections-Liquid/Gas-o.d.-are-in. 1/4/3/8 1/4/1/2 1/4/1/2
Drainconnectiono.d.-in. 1 1 1
Net/Shippingweights-lbs. Body 32 / 38 36/41 36/42
REQUIRED COMPONENTS - ORDERED SEPARATELY
Cassette Panel 13X04(M0STAT62Q-1) 13X04(M0STAT62Q-1) 13X04(M0STAT62Q-1)
Net/Shippingweights-lbs. 6 / 10 6 / 10 6 / 10
