13
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
LENNOX HEARTH PRODUCTS • MERIT PLUS
®
DIRECT VENT GAS FIREPLACES (MPD33/35/40/45) • CARE AND OPERATION INSTRUCTIONS
1
Log
Number Description (Stamped #)
1 Log, Rear (39-12)
2 Log, Left (39-1)
3 Log, Right (39-2)
4 Log, Top Center (39-13)
5 Log, Top/Left (39-3 )
6 Log, Top/Right (39-4)

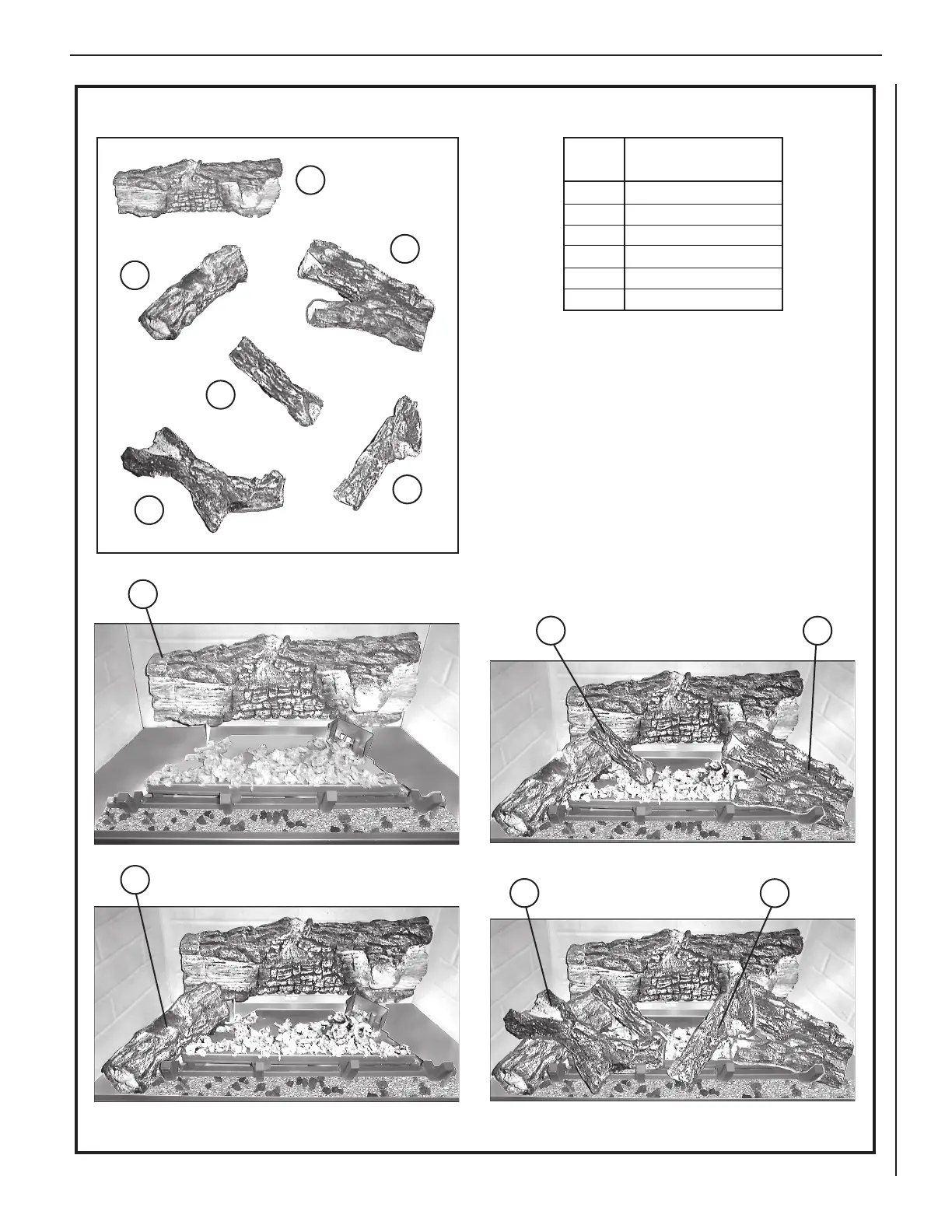

Position the individual logs as shown below. Logs should be
placed in the order shown. Position the rear log on the brackets
at the rear of the fi rebox with the log's notches directly over the
brackets. Position the right log (log no. 3) by inserting the pin
from the rear log into the hole on its upper end. Place the left
log and then the smaller left and right top logs. All logs that have
notches to fi t over the grate tines should be positioned with these
notches directly against the grate. All top logs that rest on lower
logs, do so over fl attened mounting faces in the bottom logs.
Proper log and twig placement is critical to encourage
outstanding fl ame appearance and prevent sooting.
3
2
4
5
6
1
2
3
4
6
5
MPD33 LOG PLACEMENT
Catalog Number for the entire log set: 24M15
Figure 7
