NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

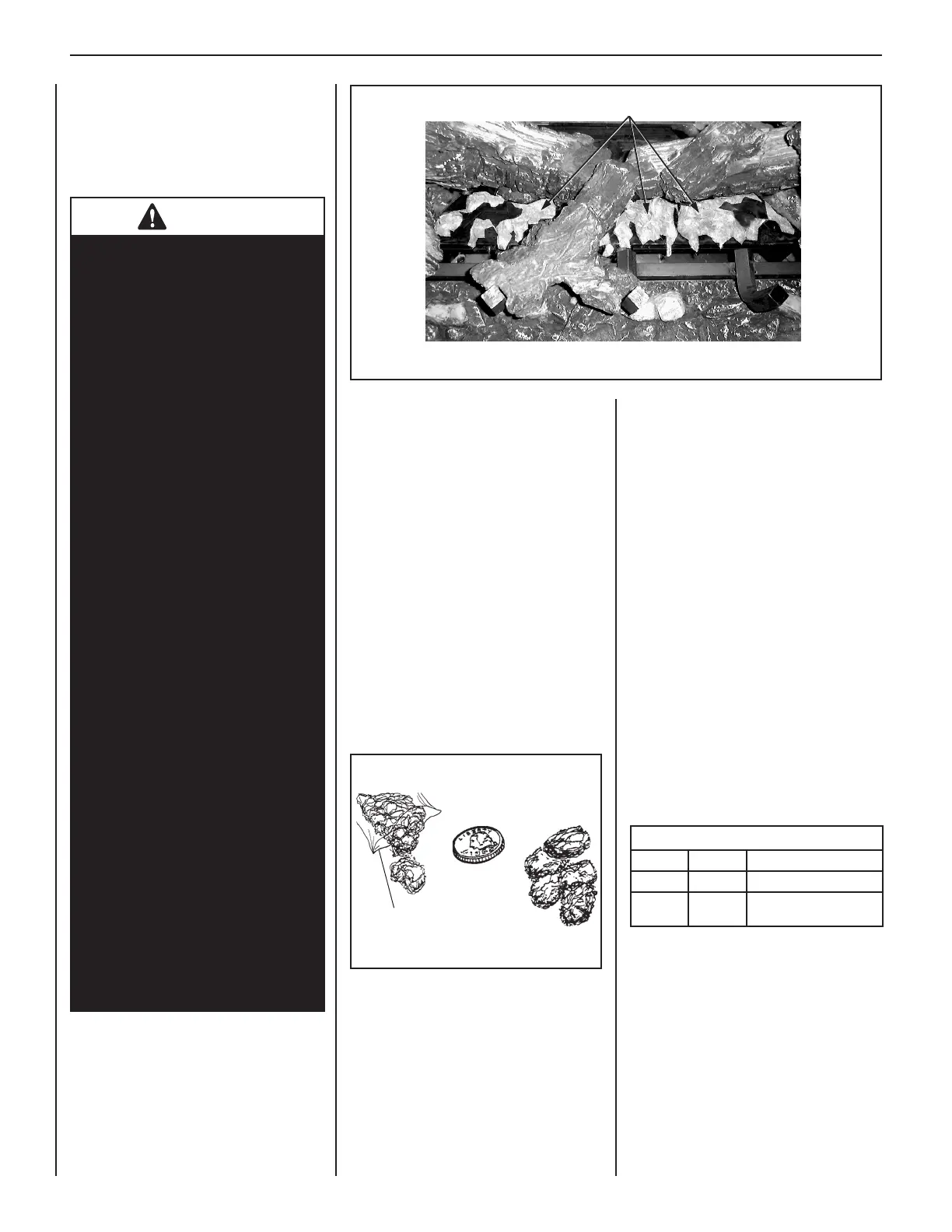

LENNOX HEARTH PRODUCTS • MERIT PLUS
®
DIRECT VENT GAS FIREPLACES (MPD33/35/40/45) • CARE AND OPERATION INSTRUCTIONS
INSTALL VOLCANIC STONE, GLOWING
EMBERS, AND LOGS
NOTE: Turn off all electricity to the appliance
before you install volcanic stone, embers
and logs.
Glowing Embers
Bag of Glowing
Embers (rockwool)
Separate into Quarter
Size (separate) Pieces
Figure 5
Glowing Embers
Figure 6
Firebox Accessories / Parts
Cat. No. Model No. Description
88L53 FGE Bag of Glowing Embers
80L42 FDVS
Bag of Decorative
Volcanic Stone
do so over notches, indents or nubs. Proper
log placement is critical to prevent sooting.
Logs should be placed in the gaps between
the fl ame peaks and should be positioned so
they do not impinge the fl ames.
Step 5. Position the individual logs as shown
in Figures 7, 8, and 9. Logs should be
placed in the order shown. All logs that have
notches to fi t over the grate tines should be
positioned with these notches directly against
the grate. Handle logs carefully to prevent
breakage.
Proper log placement is critical to encourage
outstanding fl ame appearance and prevent
sooting. When positioned properly as shown,
logs will be positioned between fl ame peaks
and will not impinge any fl ames.
Refer to Figure 7 for MPD33 series
appliances, Figure 8 for MPD35 and MPD40
series appliances, and Figure 9 for MPD45
series appliances.
WARNING
• DO NOT attempt to install
the logs until the appliance
installation has been completed,
the gas line connected, and
tested for leaks and the initial
burner operation has been
checked out.
•
The size and position of the
log set was engineered to give
the appliance a safe, reliable,
and attractive fl ame pattern.
Any attempt to use a different
log set in the fi replace will void
the warranty and will result
in incomplete combustion,
sooting, and poor fl ame quality.
•
Logs get very hot and will
remain hot up to one hour
after gas supply is turned off.
Handle only when logs are
cool. Turn off all electricity to
the appliance before you install
grate, volcanic stone, embers
and logs.
•
This appliance is not designed
to burn wood. Any attempt to
do so could cause irreparable
damage to the appliance and
prove hazardous to your safety.
•
If logs are not installed
according to the log
installation instructions, fl ame
impingement and improper
combustion could occur and
result in soot and/or excessive
production of carbon monoxide
(CO), a colorless, odorless,
toxic gas.
Step 1. Remove the appliance front door (see
Removing Glass Enclosure panel on page 11.
Step 2. Install and volcanic stone—Sprinkle
the volcanic stone in a pleasing pattern. The
volcanic stone should be placed directly on
top of the fi rebox bottom, along the front and
to the back at the right and left sides of the
burner. Position any optional ceramic fi ber
liners before placing the volcanic stone. Logs
should be positioned after the volcanic stone.
Note: This appliance is provided with enough
Glowing Embers for several applications,
do not feel compelled to use all that is in a
new bag. For best glowing effect, replace
the ember material annually. Replacement
Glowing Embers are available (Catalog
Number 88L53).
Step 3. Separate the Glowing Ember
(Rockwool) into pieces about the size of a
quarter (Figure 5). Keep the pieces fl uffed
up, not matted. Distribute these pieces
over the front surface of the burner, as
shown in Figure 6. Do not use more than is
necessary. When properly positioned, the
Glowing Embers will cover approximately
65% of the front burner and with no
appreciable gaps or openings. Ensure that
the main burner ports remain uncovered by
the ember material.Step 4. Placement of
Logs—All top logs that rest on lower logs,
To Next Page
