LENNOX HEARTH PRODUCTS • MERIT PLUS
®
DIRECT VENT GAS FIREPLACES (MPD33/35/40/45) • CARE AND OPERATION INSTRUCTIONS
Figure 9
MPD40 AND MPD45 LOG PLACEMENT
Catalog Number for the entire log set: 24M25
1
Log
Number Description (Stamped #)
1 Log, Center (39-8)
2 Log, Rear (138)
3 Log, Right (39-10)
4 Log, Left (39-9)
5 Log, Top/Left (39-11)
6 Log, Top/Right (39-11)

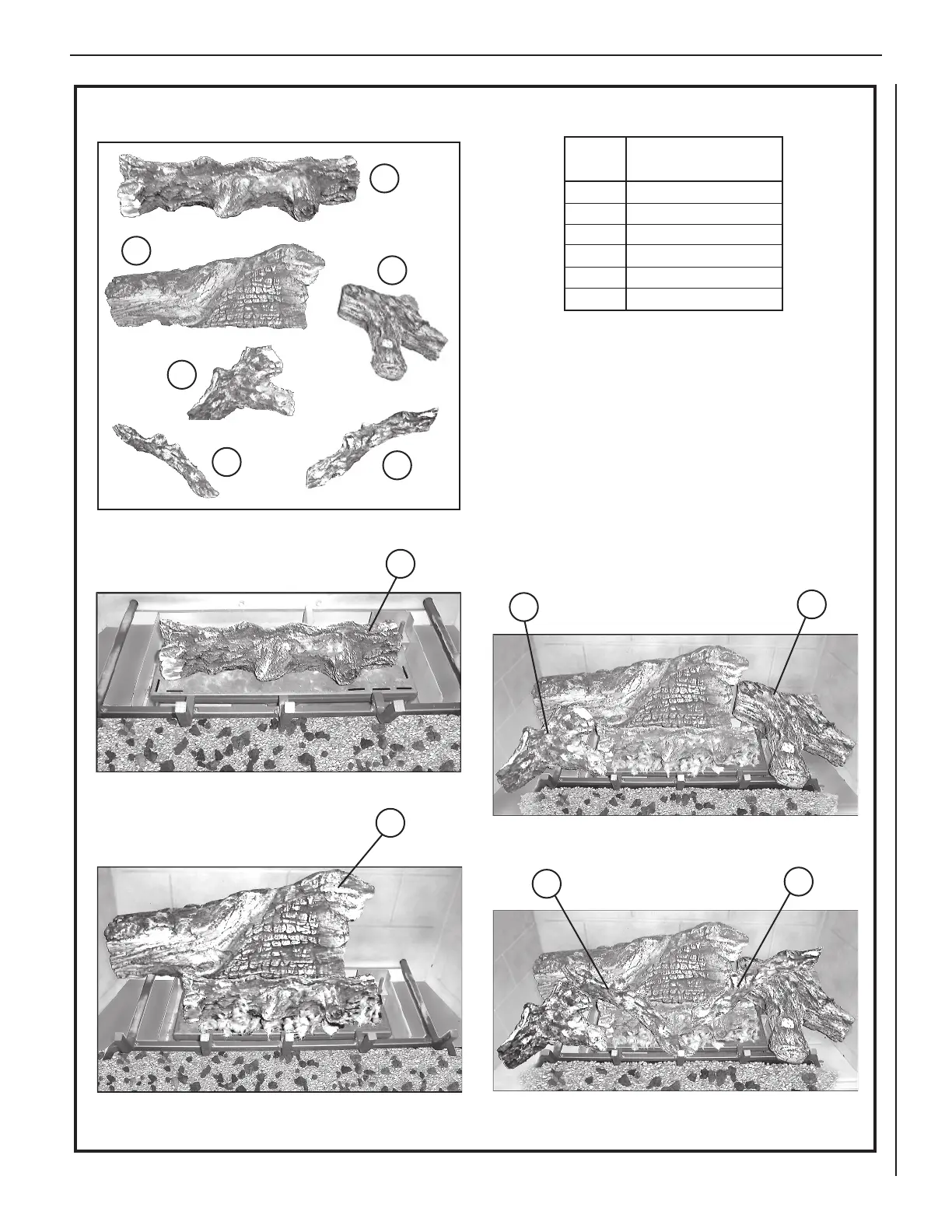

Position the individual logs as shown below. Logs should be
placed in the order shown. Position the center log on the burner
fi rst, then place the glowing embers as shown in Figure 6. Place
the rear log, both the right and left, and then the smaller left and
right top logs. All logs that have notches to fi t over the grate
tines should be positioned with these notches directly against the
grate. All top logs that rest on lower logs, do so over fl attened
mounting faces in the bottom logs.
Proper log and twig placement is critical to encourage
outstanding fl ame appearance and prevent sooting.
2
3
4
5
6
1
2
3
4
6
5
