SGH/SCH036, 060, 120, 240
TABLE 21

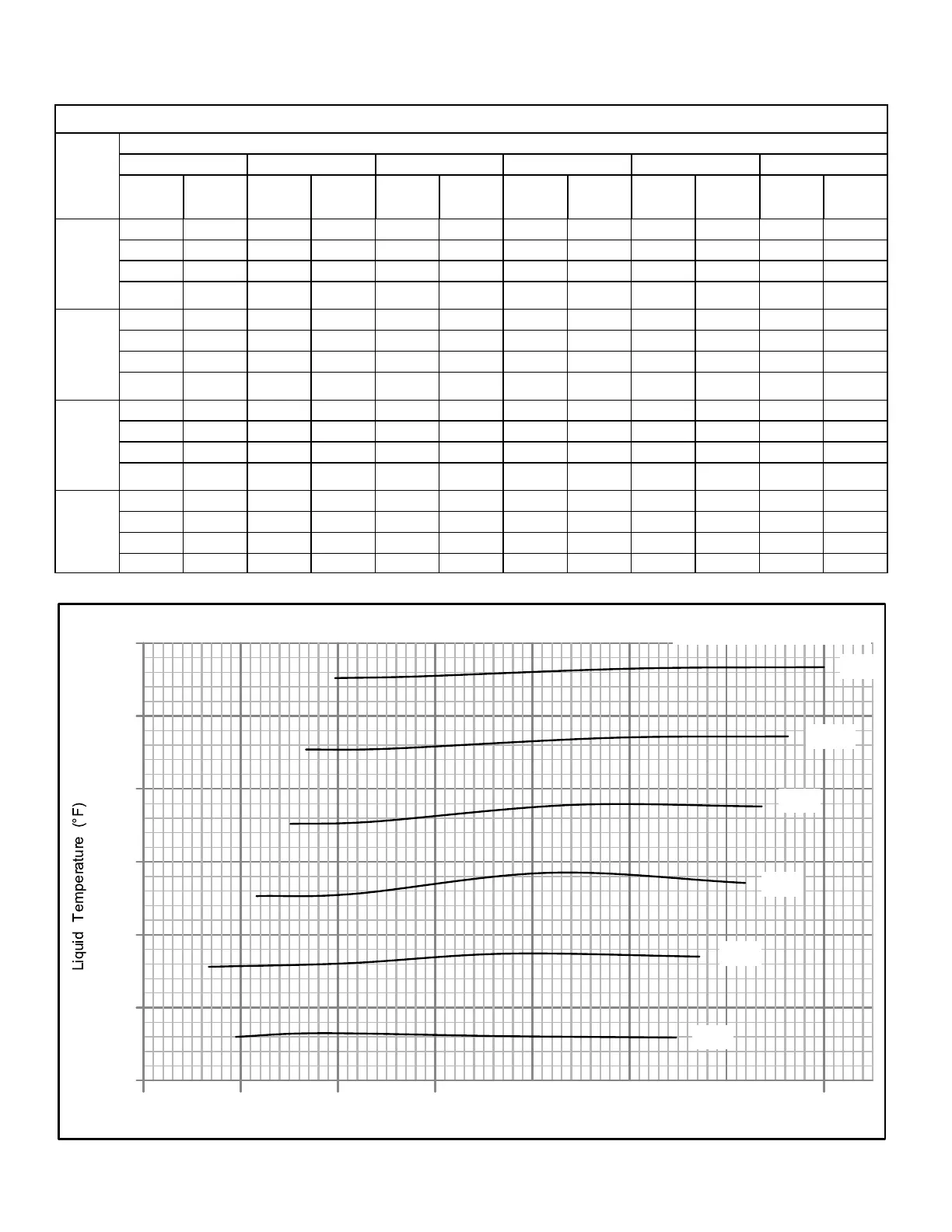

SG/SC 240 Normal Operating Pressures - Reheat - 580977-01
Outdoor Coil Entering Air Temperature
65 °F 75 °F 85 °F 95 °F 105 °F 115 °F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit
1
100 239 101 275 104 324 107 371 109 422 112 491
109 244 111 278 113 327 115 376 117 428 120 489
127 251 129 287 131 333 134 379 136 436 139 497
146 266 149 297 153 340 155 389 158 443 161 505
Circuit
2
107 240 109 276 112 323 114 372 117 419 119 487
117 245 119 280 120 326 123 373 126 428 129 484
135 253 137 286 140 329 142 375 146 432 149 494
151 267 157 296 162 340 165 382 168 434 172 497
Circuit
3
104 236 104 273 107 323 109 371 111 424 114 491
113 240 114 275 115 325 117 378 120 432 122 492
131 248 132 282 134 332 135 383 139 438 142 502
148 257 153 288 157 336 158 391 161 444 164 512
Circuit
4
110 238 110 272 112 320 114 370 117 429 120 503
118 243 119 275 121 324 123 378 126 437 129 501
137 247 138 280 140 328 144 380 145 440 148 505
155 252 159 285 162 332 165 391 167 444 171 513
Suction Pressure (psig)
115°
105°
95°
85°
75°
65°
60
70
80
90
100
110
120
110 120 130 140 150 160
Outdoor Temperature (°F)
170 180
SG/SC 036 Charging Curves - No Reheat - 580971-01
