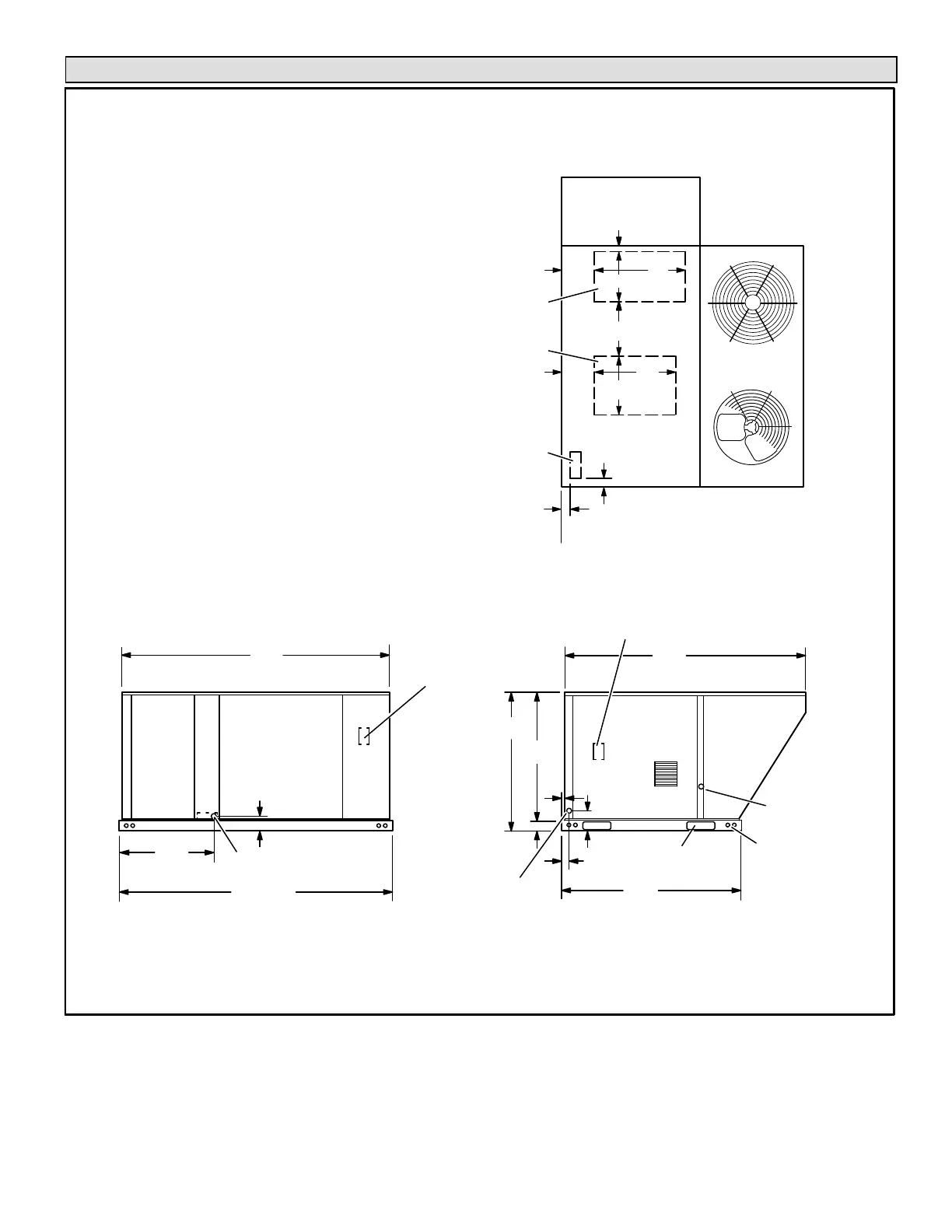

SG / SC 036 & 060 Dimensions - SG Heat Section Shown
1
(25)
FORKLIFT
SLOTS
BOTTOM POWER/GAS
ENTRY 5 x 8 INCHES
(127 x 203 mm)
OUTDOOR AIR HOOD
(Factory Installed Option)
FRONT VIEW
TOP VIEW
SIDE VIEW
LIFTING HOLES
(For Rigging
Front and Back)
81
(2057)
82-7/8 (2105)
28-7/8
(733)
5-1/4
(133)
72-1/4
(1835)
41-3/8
(1050)
3-1/2
(89)
37-7/8
(962)
1-1/2
(38)
GAS
SUPPLY
115V OUTLET
(Factory Installed Inside Unit;
Field Wiring Required)
5-1/4
(133)
CONDENSATE
DRAIN
53-1/8
(1350)
SUPPLY AIR
OPENING
28
(711)
15 (381)
14-1/4
(362)
4
(102)
4
(102)
12-1/2
(318)
4-1/4
(108)
12-1/2
(318)
18
(457)
18
(457)
RETURN AIR
OPENINGS
FLUE
OUTLET
CIRCUIT
BREAKER
COVER
