Page 14
6 - A 24V dehumidistat can be connected to the reverse-
acting HUM terminal on the A54 blower control. See
figure 19.
WARNING
Run 24V Class II wiring only through specified low
voltage opening. Run line voltage wiring only
through specified high voltage opening. Do not com
bine voltage in one opening.
CAUTION
Use copper conductors only.
IMPORTANT
If using a programmable thermostat, be sure to use
a type of thermostat that retains its memory in event
of a power loss.

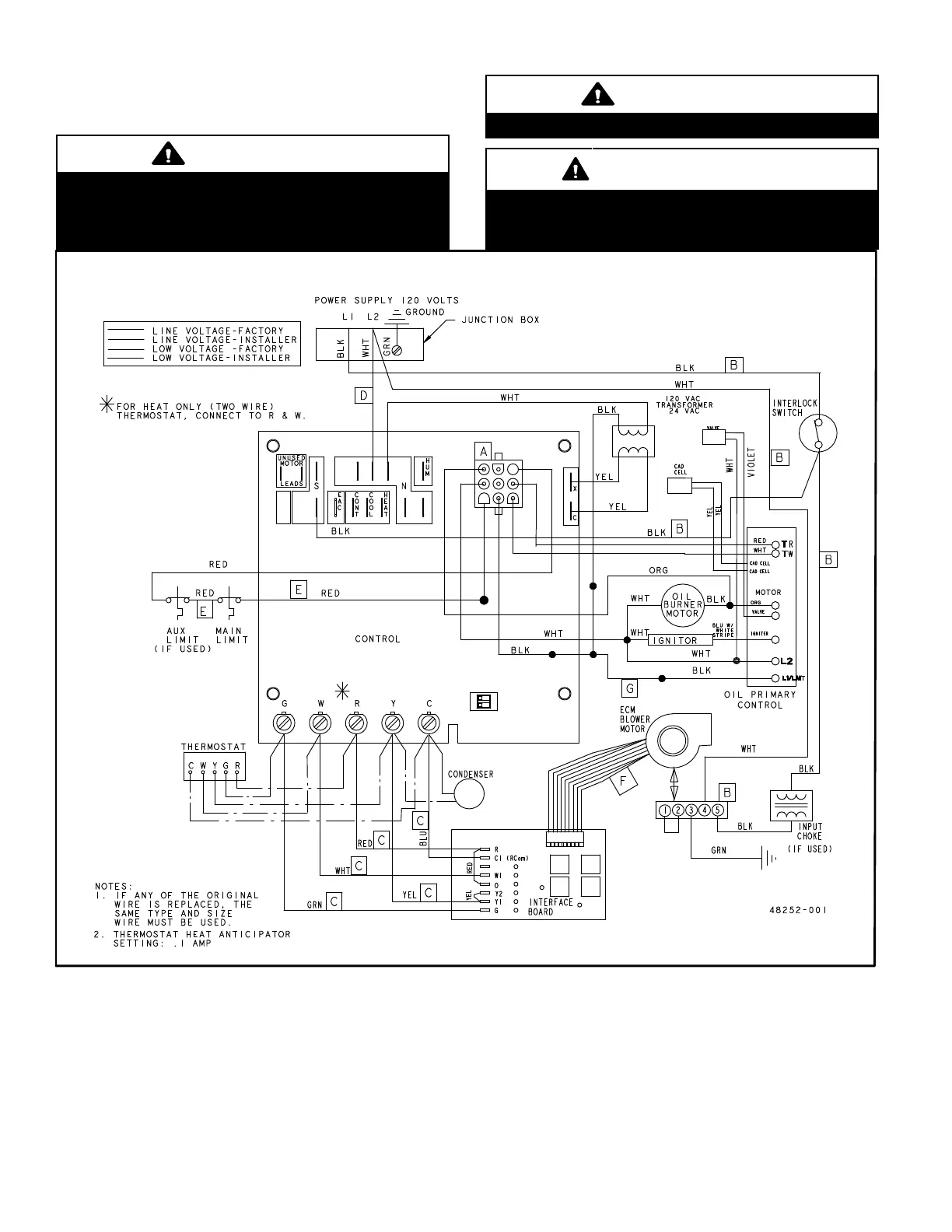

Figure 15
Typical SLO185BV Wiring Diagram
OIL DELAY
A15
A54
9
1
ST9103A
To Next Page
