Page 18
Communicating
Indoor Unit
S30 Smart Hub
C
i+
i-
R
HD Display
Subbase or
Mag-Mount
-
COMMBUS
A B
ACC1 ACC2
SL25XPV
Outdoor Unit
SL25XPV
RAST 6-Pin
Connectors
OATS (Optional)
DATS (Optional)
+
B
A
+
-
O
Y1

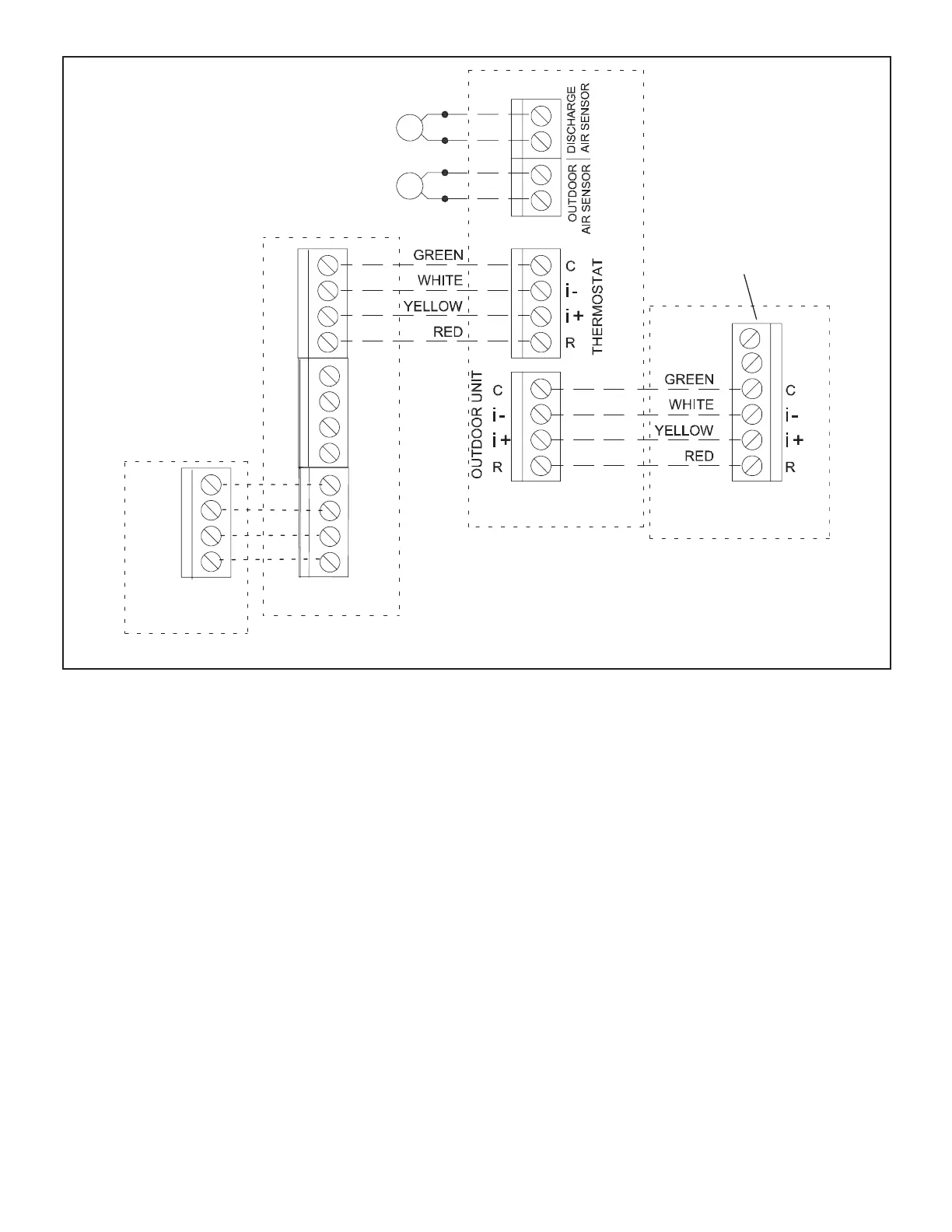

FIGURE 12. SL25XPV with iComfort S30 Communicating Thermostat – Field Wiring Diagram
