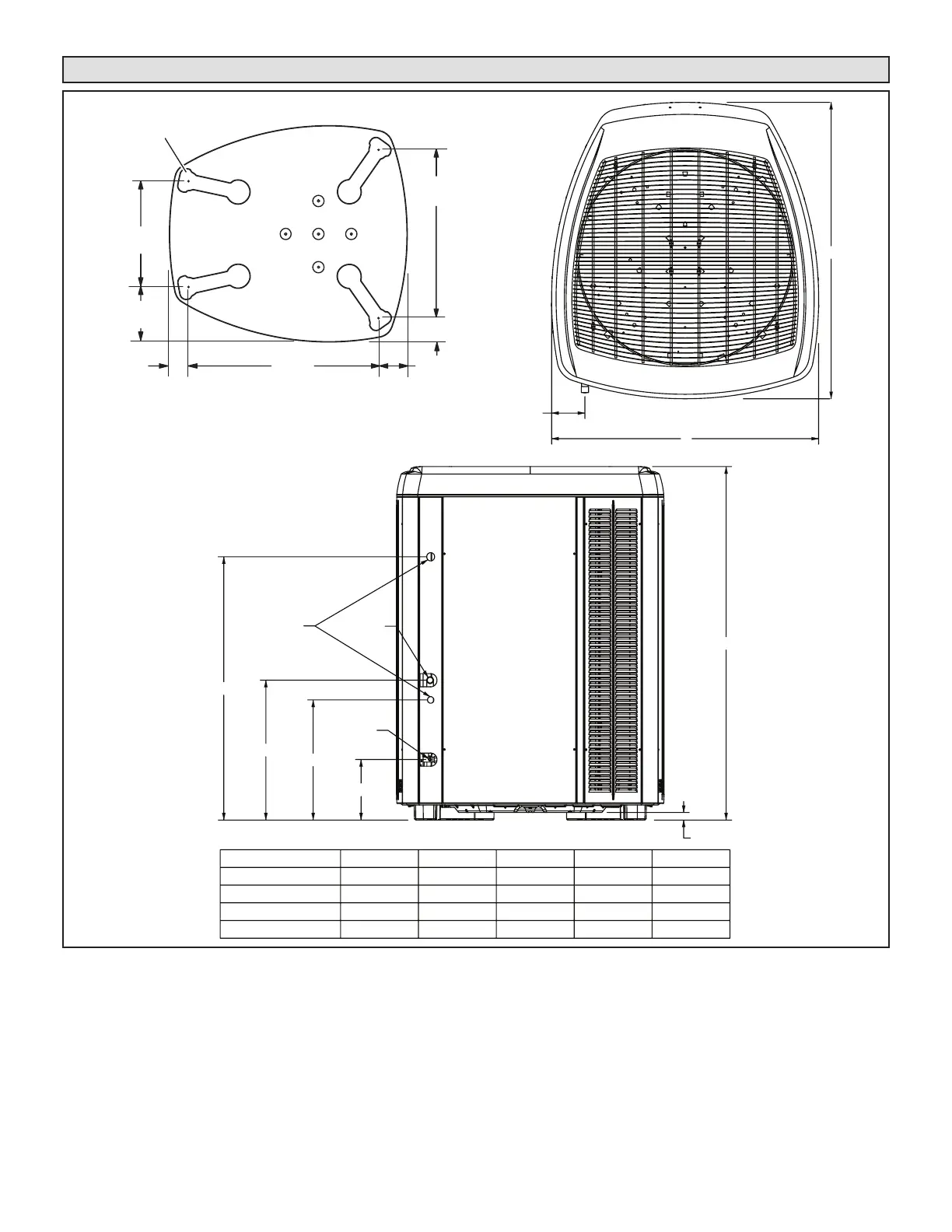

Lennox SL25XPV Series - Unit Dimensions - Inches (MM)

Page 3
4.430
B
C
A
1.000
E
D
8.04
18.59
ELECTRICAL
SUCTION
LIQUID
UNITDIM ADIM BDIM CDIM DDIM E
SL25XPV-024 47.00 35.50 39.40 35.00 15.97
SL25XPV-036 47.00 35.50 39.40 35.00 15.97
SL25XPV-048 47.00 35.50 39.40 35.00 15.97
SL25XPV-060 47.00 35.50 39.40 35.00 15.97
4-5/8
(117)
BASE WITH ELONGATED LEGS
16-7/8
(429)
8-3/4
(222)
26-7/8
(683)
3-3/4 (95)
30-3/4
(781)
3-1/8
(79)
UNIT SUPPORT
FEET
UNIT DIMENSIONS – INCHES (MM)
