I-UNIT COMPONENTS
SL280UHV(X) unit components are shown in FIGURE 1.
The gas valve, combustion air inducer and burners can be
accessed by removing the access panel. Electrical com-
ponents are in the control box (FIGURE 2) found in the
blower section.
SL280UHV(X) units are factory equipped with a bottom
return air panel in place. The panel is designed to be eld
removed as required for bottom air return. Markings are
provided for side return air and may be cut out in the eld.
ELECTROSTATIC DISCHARGE (ESD)
Precautions and Procedures
CAUTION
Electrostatic discharge can aect
electronic components. Take precautions
to neutralize electrostatic charge by
touching your hand and tools to metal
prior to handling the control.
A- Control Box
1. Control Transformer (T1)
A transformer located in the control box provides power
to the low voltage section of the unit. Transformers on all
models are rated 40VA with a 120V primary and a 24V
secondary.
2. Door Interlock Switch (S51)
An interlock switch rated 14A at 125VAC is wired in series
with line voltage. When the indoor blower access panel is
removed the unit will shut down.

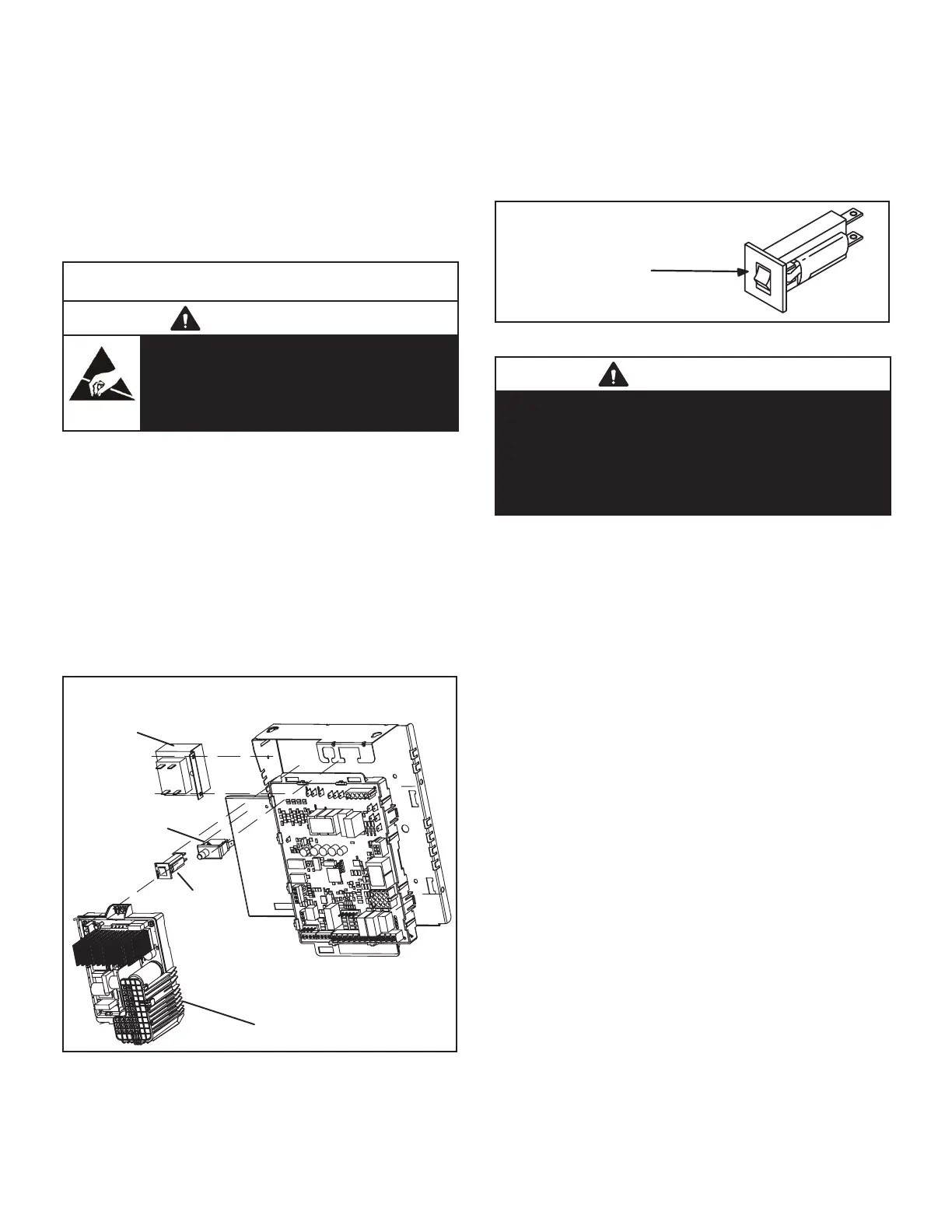

CONTROL BOX
Door Interlock Switch
Circuit Breaker
Blower Drive
(some units)
Tw-Stage Variable Speed
Ignition Control
Transformer
FIGURE 2
3. Circuit Breaker (CB8)
A 24V circuit breaker is also located in the control box.
The switch provides overcurrent protection to the trans-
former (T1). The breaker is rated 3A at 32V. If the current
exceeds this limit the breaker will trip and all unit opera-
tion will shutdown. The breaker can be manually reset by
pressing the button on the face. See FIGURE 3.
PRESS TO RESET
FIGURE 3
WARNING
Shock hazard.
Disconnect power before servicing. Integrated
control is not eld repairable.
If control is inoperable, simply replace entire control.
Can cause injury or death. Unsafe operation will
result if repair is attempted.
4. Integrated Control (A92)
Units are equipped with a communicating enabled Sure-
Light
®
two-stage, variable speed integrated control. This
control is used with a communicating thermostat as part
of a communicating comfort system. The control can also
operate with a non-communicating conventional single or
two-stage thermostat. The system consists of a ignition
/ blower control (FIGURE 4 103130-XX and FIGURE 5
107045-XX) with control pin designations in TABLE 1, TA-
BLE 2, TABLE 3 and ignitor (FIGURE 15). The control and
ignitor work in combination to ensure furnace ignition and
ignitor durability. The control provides gas ignition, safety
checks and indoor blower control with two-stage gas heat-
ing. The furnace combustion air inducer, gas valve and in-
door blower are controlled in response to various system
inputs such as thermostat signal, pressure and limit switch
signal and ame signal. The control features a seven-seg-
ment LED display, indicating furnace status (including in-
door blower) and error codes. The LED ashes in single
digits. For example using LIMIT CODE, an “E” followed by
“2” followed by “5” followed by “0”, the limit switch circuit is
open. The control also has two unpowered (dry) 1/4” con-
tacts for a humidier and a 120 volt accessory terminal.
Both rated at (1) one amp each. See “Ignition Control Di-
agnostic Modes” on page 22, “Ignition Control 103130-
XX Diagnostic Codes” on page 23 and “Ignition Control
107045-XX Diagnostic Codes” on page 29.
