4

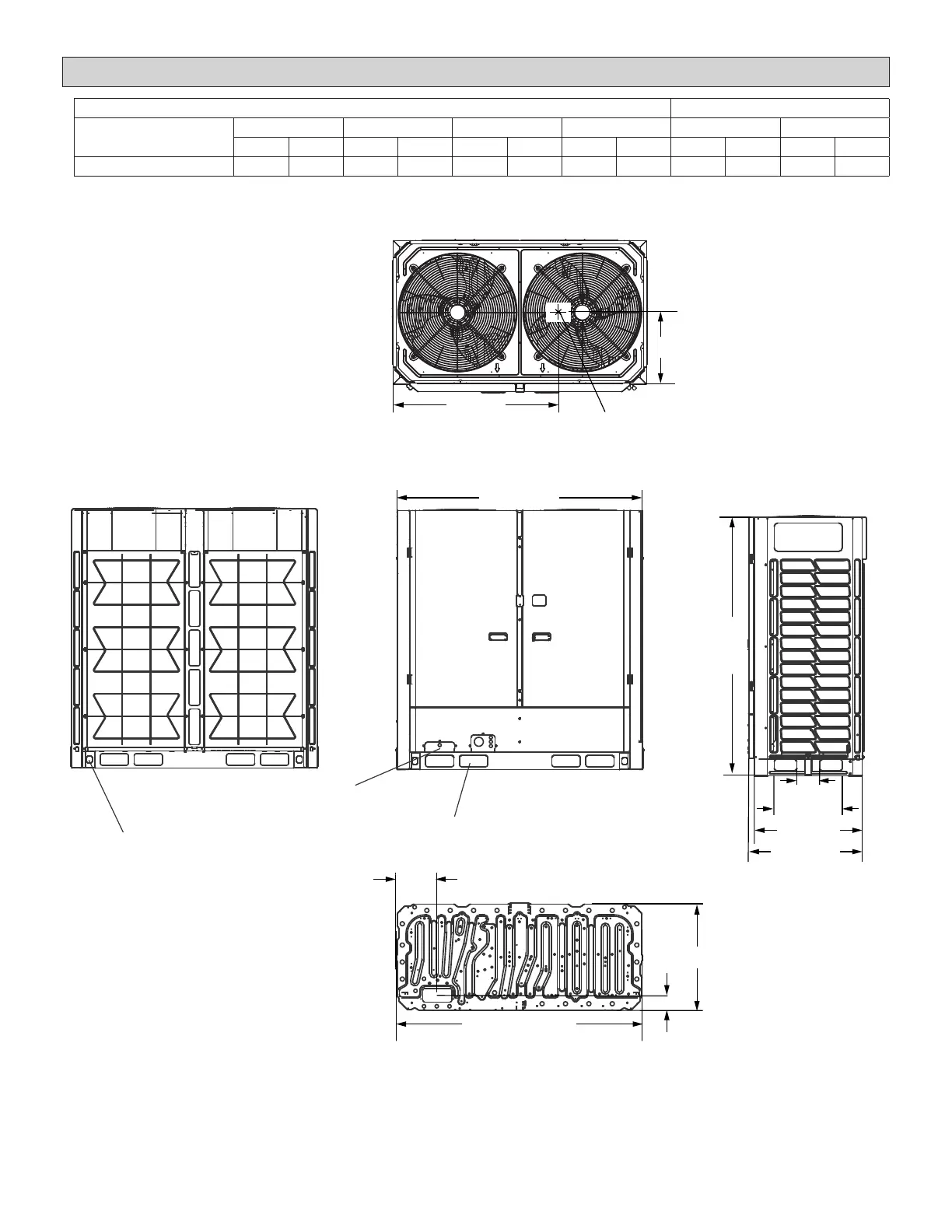

Unit Dimensions - inches (mm)
BACK VIEW
SIDE VIEW
68-1/2 (1740)
4-1/8 (105)
29-3/4 (756)
11-3/8 (289)
68-1/2 (1740)
6-1/4 (159)
BASE PAN VIEW
32-5/8 (829)
AA BB
DD
CC
TOP VIEW
EE
FF
CENTER OF
GRAVITY
FRONT VIEW
FORKLIFT SLOT
(BOTH SIDES)
REFRIGERANT LINE PATH
LAG BOLT DESIGNATION
(BOTH SIDES)
(TO ACCESS LAG BOLT)
PARALLEL MODULE
PIPING KNOCKOUT
30 (762)
18-7/8 (479)
72 (1829)
CORNER WEIGHTS CENTER OF GRAVITY
Model No. AA BB CC DD EE FF
lbs. kg lbs. kg lbs. kg lbs. kg in. mm in. mm
144, 168, 192 172 78 264 120 330 150 321 146 37-3/4 953 12 305
