XC21 SERIES
A175 MAIN
CONTROL
CONTROL PANEL
A177 FAN MOTOR CONTROL 
PULSE−WIDTH MODULATION (PWM)
JUMPER
OFF
JUMPER
ON
J2
LED
CFM Profile Pin Select
VERIFY DC VOLTAGE OUTPUT USING FAN PWM OUT AND
COM TERMINALS. SEE TABLE 16 FOR OPTIMAL DC
VOLTAGE BASED ON CFM PROFILE USED.
COM
FAN PWM OUT
FAN PWM OUT
PARK
COM
J2
GREEN
RED
BROWN
RED
BLACK
RED
RED
GREEN
A177 FAN
MOTOR
CONTROL
YELLOW
BLACK
YELLOW
BLUE
SEE TABLE 16 FOR CFM PROFILE
SELECTION OPTIONS.
YELLOW
YELLOW
YELLOW
S4 HIGH PRESSURE SWITCH
YELLOW
B4 FAN
MOTOR
A175 MAIN CONTROL

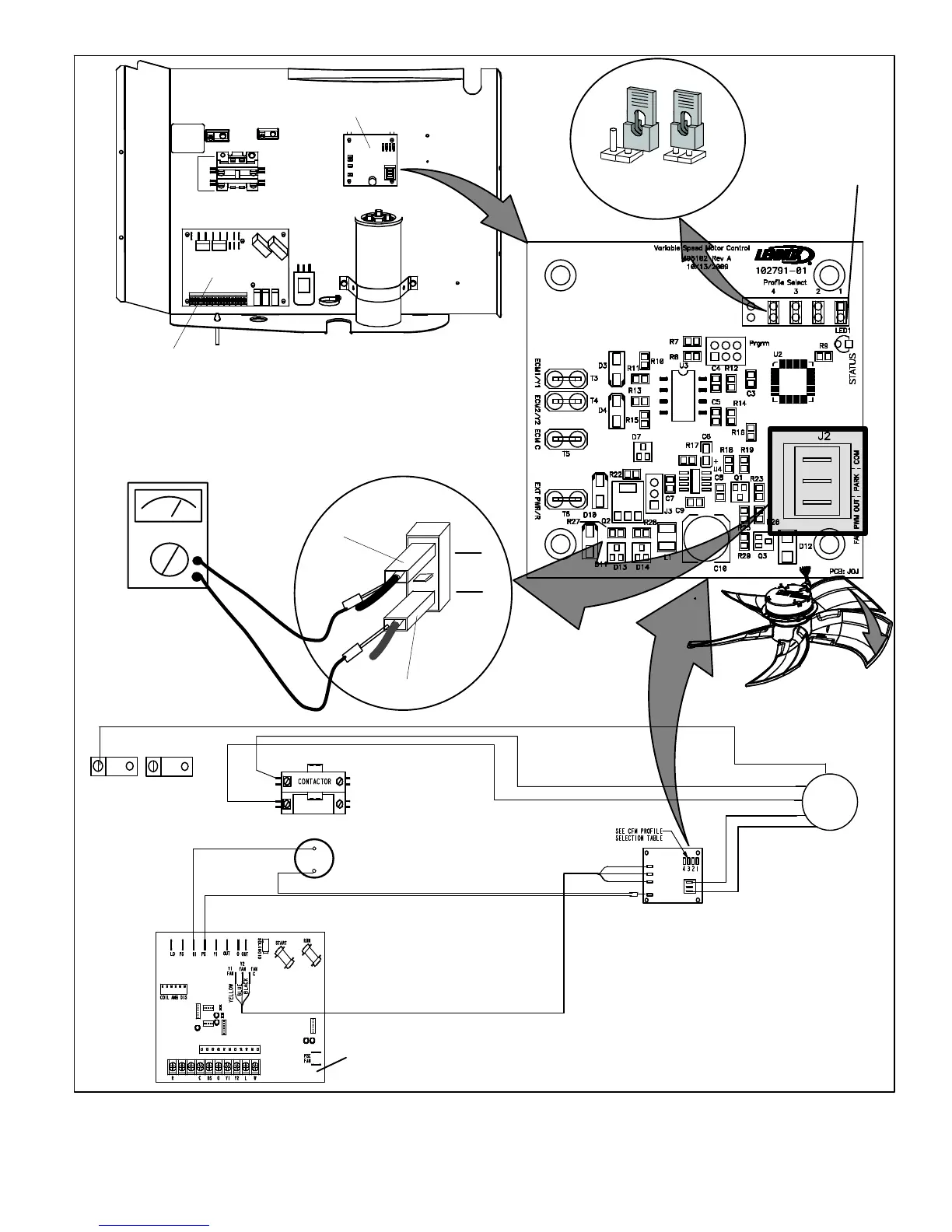

Figure 24. A177 Fan Control, Wiring, Jumper Settings, Testing and LED Location
